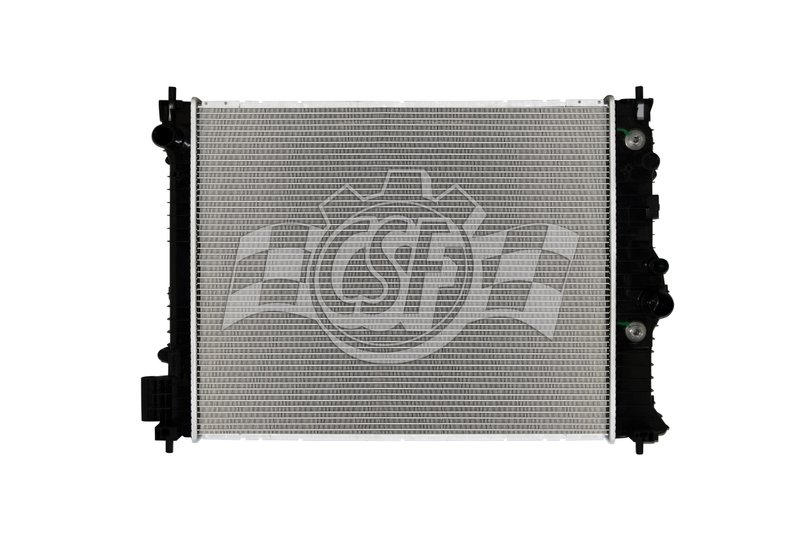

CSF 3868 Radiator

Overview of CSF Radiator for Chevrolet Trax

The CSF radiator part number 3868 is designed specifically for Chevrolet Trax models, providing reliable cooling performance. Featuring an aluminum core and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core thickness: 1 1/4 inches
• Core width: 19 11/16 inches
• Core length: 24 7/16 inches
• Aluminum core material with plastic tanks
• Cross flow design for improved coolant circulation
• Inlet diameter: 1 5/16 inches (left side)
• Outlet diameter: 1 1/2 inches (right side)
• Single-row radiator core
• Includes high-efficiency plate type oil cooler (11 1/2 inches, right side)
• OEM style quick-connect outlet

Detailed Product Description

The CSF 3868 radiator is engineered with a 1 1/4 inch thick aluminum core that measures 19 11/16 inches wide and 24 7/16 inches long, providing a durable and efficient cooling surface. The plastic tanks are designed to reduce weight while maintaining structural integrity. This radiator features a cross flow design, which enhances coolant flow across the core for better heat exchange. The inlet and outlet diameters are 1 5/16 inches on the left and 1 1/2 inches on the right, respectively, matching the original equipment specifications for Chevrolet Trax vehicles. Additionally, the integrated high-efficiency plate type oil cooler on the right side supports engine oil temperature regulation, contributing to overall engine performance and longevity.

Common Applications and Problem Solving

• Replacement for leaking or damaged radiators in Chevrolet Trax models
• Resolves overheating issues caused by inefficient cooling
• Addresses coolant leaks from cracked or corroded radiator cores or tanks
• Improves engine oil cooling with integrated oil cooler for better thermal management
• Restores proper coolant flow with OEM style quick-connect outlet

Installation Notes and Tips

Ensure compatibility with Chevrolet Trax before installation by verifying part number 3868. The radiator features OEM style plastic tanks and an aluminum core, so handle with care to avoid damage during installation. The cross flow design requires proper hose alignment to inlet and outlet ports (left inlet, right outlet). The integrated oil cooler connections should be securely attached to maintain oil system integrity. No radiator cap is included, so reuse the existing cap or purchase separately if needed.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM specifications for fit and function. The use of aluminum core and plastic tanks balances durability and weight savings. This radiator is free of hazardous materials and designed for long-term service in Chevrolet Trax vehicles. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
