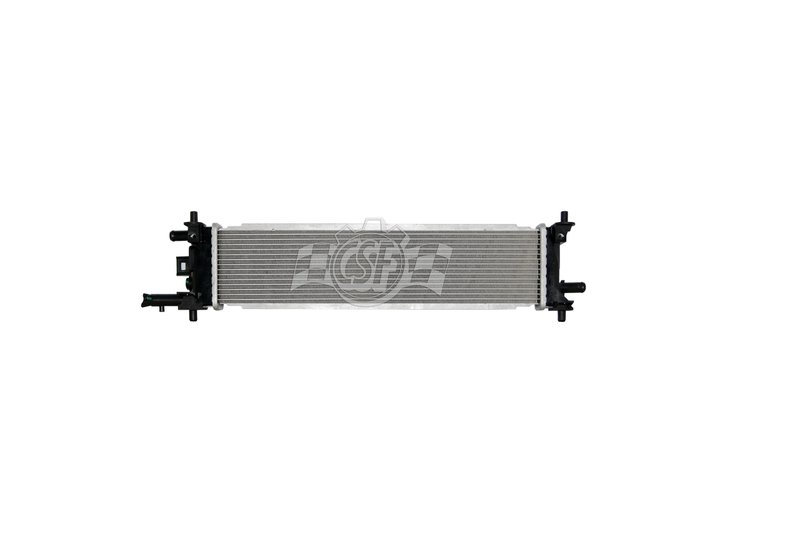

CSF 3882 Drive Motor Inverter Cooler

Overview of CSF Drive Motor Inverter Cooler for Honda Accord

The CSF Drive Motor Inverter Cooler, part number 3882, is designed specifically for Honda Accord models. Engineered with an aluminum core and plastic tanks, this cooler ensures efficient heat dissipation for your vehicle's drive motor inverter system.

• Core dimensions: 18 11/16 inches length, 4 1/4 inches width, and 7/8 inch thickness
• Constructed with a durable aluminum core and OEM-style plastic tanks
• Cross flow design with a single radiator core row for optimal cooling
• Inlet and outlet diameters both measure 11/16 inch, positioned right and left respectively
• Compact packaging dimensions: 27 1/2 inches length, 8 3/4 inches width, 3 14/16 inches height

Detailed Product Description

The CSF 3882 Drive Motor Inverter Cooler is built to meet the cooling demands of Honda Accord vehicles. Its aluminum core provides excellent thermal conductivity, while the plastic tanks maintain a lightweight yet durable structure. The cross flow core design promotes efficient coolant flow across the single radiator core row, enhancing heat exchange performance. Both the inlet and outlet ports are sized at 11/16 inch, with the inlet on the right and outlet on the left, ensuring compatibility with the Accord's cooling system layout.

Applications and Problem Solving

• Prevents overheating of the drive motor inverter in Honda Accord models
• Maintains optimal operating temperatures for electric drive components
• Replaces worn or damaged inverter coolers to restore cooling efficiency
• Helps avoid performance issues related to inverter thermal stress
• Supports reliable operation of hybrid or electric drive systems

Installation Notes and Tips

When installing the CSF 3882 Drive Motor Inverter Cooler, ensure the inlet and outlet connections align with the vehicle’s existing coolant lines. The OEM-style plastic tanks and aluminum core require careful handling to avoid damage during installation. Verify that the cross flow orientation matches the original part to maintain proper coolant flow. No cap is included with this unit, so retain the original or source separately if needed.

Quality Assurance and Warranty

CSF manufactures this inverter cooler with high-quality materials, including an aluminum core and plastic tanks designed to OEM specifications. The product is free from hazardous materials and weighs approximately 3 pounds, reflecting a robust yet lightweight design. While specific warranty details are not provided, CSF products typically adhere to industry standards for durability and performance.
