CSF 3883 Radiator

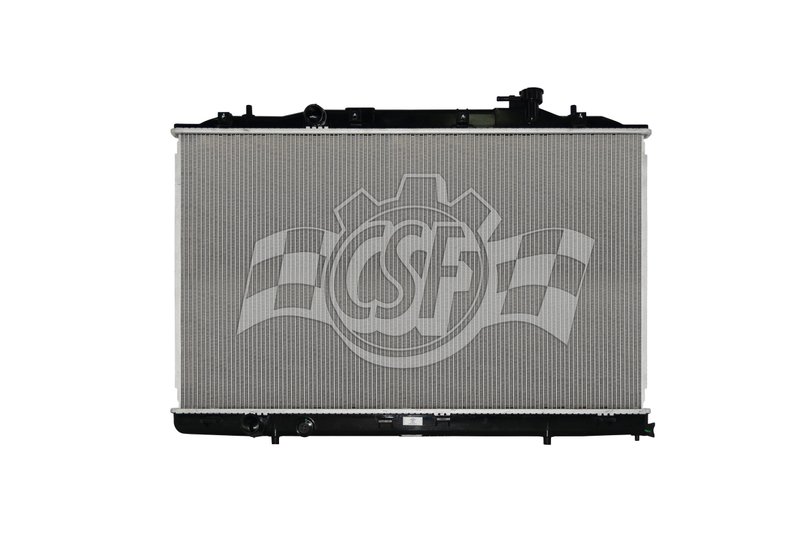

Overview of CSF Radiator 3883 for Honda Odyssey

The CSF radiator part number 3883 is designed specifically for Honda Odyssey models, providing reliable cooling performance. Featuring an aluminum core and plastic tanks, this radiator supports efficient heat dissipation to maintain optimal engine temperature.

• Core thickness: 5/8 inch
• Core width: 30 1/16 inches
• Core length: 17 11/16 inches
• Aluminum core material with plastic tanks
• Down flow design with a single core row
• Inlet and outlet diameter: 1 1/4 inches, both on the left side
• Cap not included
• Box dimensions: 33 3/8" length, 24 1/2" width, 5 1/4" height
• Box weight: 9 lbs

Detailed Radiator Specifications

This CSF radiator 3883 features a down flow core design, which directs coolant downward through the core for effective heat exchange. The aluminum core ensures durability and efficient thermal conductivity, while the plastic tanks reduce overall weight. The radiator core consists of a single row, balancing cooling capacity with compact size. Both the inlet and outlet have a 1 1/4 inch diameter located on the left side, matching OEM specifications for a proper fit in Honda Odyssey vehicles.

Compatible Vehicles and Applications

This radiator is compatible with Honda Odyssey models, engineered to meet the cooling requirements of this specific make and model. It is suitable for replacing worn or damaged radiators to restore proper engine cooling and prevent overheating.

• Resolves engine overheating issues
• Replaces leaking or cracked radiator tanks
• Restores coolant flow efficiency
• Addresses reduced cooling performance due to core damage
• Suitable for routine radiator replacement in Honda Odyssey

Installation Notes and Tips

When installing the CSF radiator 3883, ensure all hoses and clamps are securely connected to the 1 1/4 inch inlet and outlet on the left side. Verify compatibility with your specific Honda Odyssey year and engine configuration. Since the radiator does not include a cap, reuse the existing radiator cap or purchase a compatible replacement separately. Properly bleed the cooling system after installation to remove air pockets and maintain optimal coolant circulation.

Quality Assurance and Warranty

CSF radiators are manufactured to meet OEM standards, using quality aluminum cores and durable plastic tanks. This radiator is designed to provide reliable cooling performance and long service life. Warranty details should be confirmed with the distributor or manufacturer, as they may vary by region.
