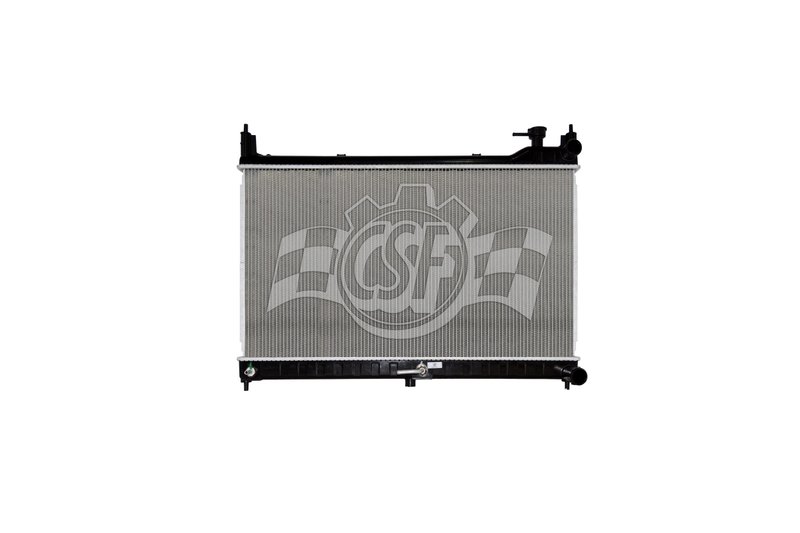

CSF 3886 Radiator
| Brand | CSF 3886 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 28 11/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 16 1/8 |
| Inlet Diameter | 1 3/8 right |
| Outlet Diameter | 1 3/8 right |
| Down Flow Or Cross Flow Type | Down flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 7 1/4 |
| Box Length (in) | 32 |
| Box Weight (lbs) | 11 |
| Box Width (in) | 24 3/4 |
| Hazardous Material | No |
| Inlet Length (in) | 29 1/2 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 14 3/4 (high-efficiency plate type) |
| Outlet Length (in) | 29 1/2 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tank & aluminum core. |
| Fits | Nissan · 10 vehicles |
OE-style construction. Plastic tank and aluminum core match a familiar factory design.
Wind tunnel tested. Validated for cooling performance in lab conditions.
High-performance standards. Built to CSF's long-running radiator manufacturing standards.
Cross-references Bosch 13532, 21460-5AA0A and NI3010243 for the same application. See all 3.
CSF 3886 Radiator for Nissan Murano
The CSF 3886 radiator is an OE-style replacement built with an aluminum core and plastic tanks for Nissan Murano cooling system service. It is engineered for direct fitment on 2015-2024 Nissan Murano models and uses a down-flow design with integrated transmission oil cooler provisions.
Key Features
- OE-style plastic tank and aluminum core construction
- Down-flow radiator design
- Single-row core configuration
- Core dimensions: 28 11/16 in. wide, 16 1/8 in. long, 5/8 in. thick
- Inlet and outlet: 1 3/8 in. right-side connections
- Integrated high-efficiency plate-type oil cooler, 14 3/4 in.
- No radiator cap included
- Built by CSF, a radiator manufacturer with ISO/TSO-certified factories
Product Details
CSF part number 3886 is designed for Nissan Murano cooling system replacement where OE-style fit and thermal performance matter. The radiator uses an aluminum core with plastic tanks, matching the factory-style layout for 2015-2024 Nissan Murano applications. CSF states its radiators are engineered and wind tunnel tested for cooling performance validation, and this unit follows that approach with a down-flow configuration and right-side inlet and outlet placement. This part cross-references Bosch 13532 for the same application.
Common Problems This Radiator Can Address
- Coolant leaks from a damaged or aging radiator tank or core
- Overheating caused by restricted coolant flow or reduced heat transfer
- Transmission cooling concerns related to a failing integrated oil cooler
- Fitment issues from using a non-OE-style replacement radiator
- Cooling system service needs on high-mileage Nissan Murano vehicles
Installation Notes and Tips
Verify inlet and outlet orientation before installation, since this radiator uses right-side 1 3/8 in. connections. Confirm the vehicle is equipped for the OE-style plastic tank and aluminum core layout, and inspect hoses, clamps, and coolant condition during replacement. Proper system bleeding and leak checks are recommended after installation on 2015-2024 Nissan Murano models.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance during development. Part number 3886 is built to OE-style standards for Nissan Murano applications and is backed by CSF’s long-running radiator manufacturing experience.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Nissan | Murano | 3.5L | V6 | N/A | — |
| 2023 | Nissan | Murano | 3.5L | V6 | N/A | — |
| 2022 | Nissan | Murano | 3.5L | V6 | N/A | — |
| 2021 | Nissan | Murano | 3.5L | V6 | N/A | — |
| 2020 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2018 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2017 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
| 2015 | Nissan | Murano | 3.5L | V6 | N/A | OE style design ensures optimal fitment and performance. |
