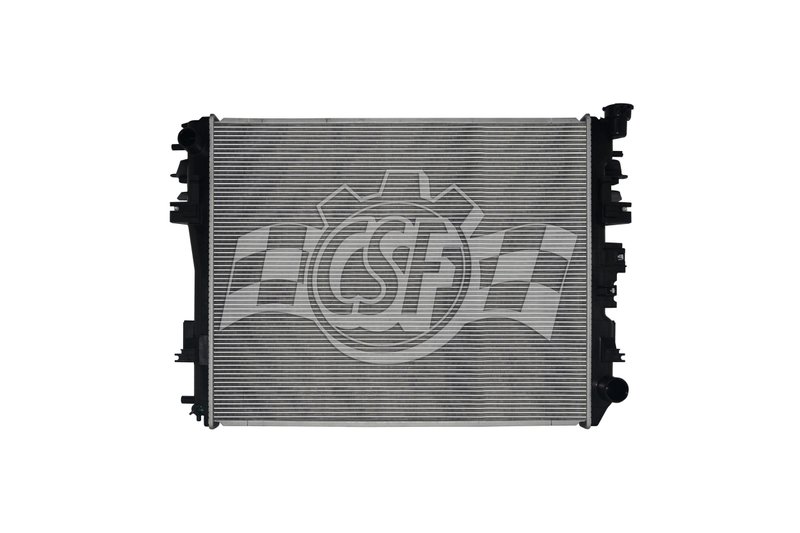

CSF 3888 Radiator
| Brand | CSF 3888 |
|---|---|
| Core Thickness | 1 1/4 |
| Core Width | 21 11/16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 27 1/2 |
| Inlet Diameter | 1 1/2 left |
| Outlet Diameter | 1 3/4 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 8 1/16 |
| Box Length (in) | 38 3/4 |
| Box Weight (lbs) | 16 |
| Box Width (in) | 25 1/8 |
| Hazardous Material | No |
| Inlet Length (in) | 22 11/16 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | No |
| Outlet Length (in) | 22 11/16 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tank & aluminum core. |
| Fits | Ram · 8 vehicles |
OEM-style construction. Plastic tanks and an aluminum core match the original design.
Cross-flow design. Promotes efficient coolant flow for consistent cooling performance.
Wind tunnel tested. Validated in lab conditions for cooling performance.
Cross-references OSC 13772, 68341188AA and CH3010383 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
CSF 3888 Radiator for Ram 1500
The CSF 3888 radiator is an OE-style replacement built with an aluminum core and plastic tanks for the Ram 1500 platform. It is engineered for direct-fit cooling performance on 2019-2024 Ram 1500 and 2022-2023 Ram 1500 Classic applications, including the upgraded heavy-duty core versions noted in fitment.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow radiator design
- 1-row core with 1 1/4 in. core thickness
- Core dimensions: 27 1/2 in. length, 21 11/16 in. width
- Inlet: 1 1/2 in. left; outlet: 1 3/4 in. right
- No radiator cap included
- Part number: 3888
Detailed Description
CSF designs and validates radiators for cooling performance, using engineering and wind-tunnel testing methods to confirm thermal efficiency. The CSF 3888 follows an OE-style layout with a plastic tank and aluminum core, making it a direct replacement choice for Ram 1500 cooling system service. This radiator is listed for 2019-2020 Ram 1500 with OE-style fitment and for 2021-2024 Ram 1500 and 2022-2023 Ram 1500 Classic with an upgraded heavy-duty core that is 11% thicker than the OEM 27 mm design. The CSF 3888 is also cross-referenced to 68341188AA, CH3010383, and OSC 13772 for the same application.
What It Helps Address
- Overheating caused by a worn or inefficient radiator
- Coolant leaks from aging plastic tank and core assemblies
- Reduced heat rejection in stop-and-go driving or towing conditions
- Cooling system service needs on Ram 1500 and Ram 1500 Classic models
- Fitment issues from non-OE-style replacement radiators
Installation Notes
Verify inlet and outlet orientation before installation: 1 1/2 in. left inlet and 1 3/4 in. right outlet. Confirm vehicle year, model, and cooling package against the listed fitment before ordering. Transfer any required external components from the original radiator if your application uses them, and inspect hoses, clamps, and coolant condition during replacement.
Quality Assurance
CSF states that its factories are ISO/TSO certified and that its radiators are engineered to high-performance standards. The brand also notes long-term global production experience and laboratory validation methods used to confirm cooling performance.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Ram | 1500 | 5.7L | V8 | MILD HYBRID EV-GAS (MHEV) | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2023 | Ram | 1500 | 5.7L | V8 | GAS | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2023 | Ram | 1500 Classic | 3.6L | V6 | — | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2022 | Ram | 1500 | 5.7L | V8 | MILD HYBRID EV-GAS (MHEV) | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2022 | Ram | 1500 Classic | 3.6L | V6 | — | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2021 | Ram | 1500 | 5.7L | V8 | GAS | N/A | Upgraded Heavy Duty Core. 11% Thicker 30mm vs OEM 27mm |
| 2020 | Ram | 1500 | 5.7L | V8 | — | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Ram | 1500 | 5.7L | V8 | — | N/A | OE style design ensures optimal fitment and performance. |
