Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

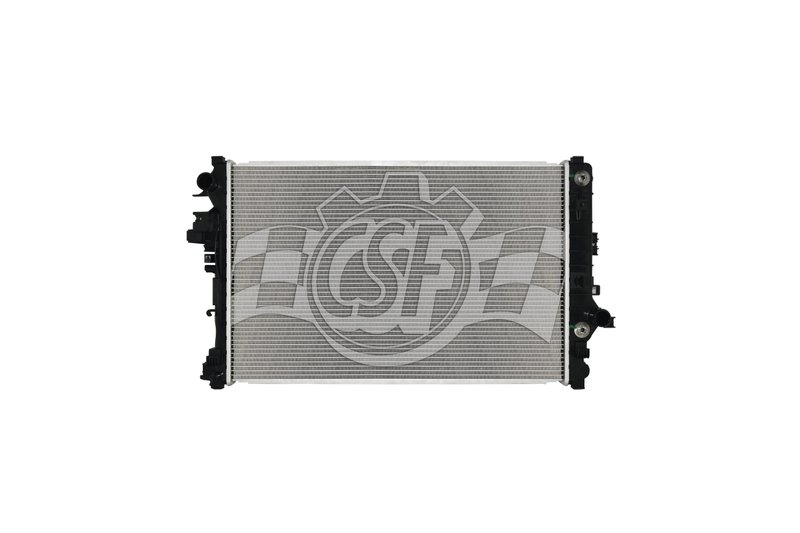

CSF 3899 Radiator
| Brand | CSF 3899 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 16 5/8 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 26 |
| Inlet Diameter | 1 5/16 left |
| Outlet Diameter | 1 5/16 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 5 7/8 |
| Box Length (in) | 34 13/16 |
| Box Weight (lbs) | 9 |
| Box Width (in) | 20 3/8 |
| Hazardous Material | No |
| Inlet Length (in) | 17 1/4 |
| Inlet Width (in) | 1 5/8 |
| Oil Cooler (in) | 11 13/16 (high-effeciency plate type) |
| Outlet Length (in) | 17 1/4 |
| Outlet Width (in) | 1 5/8 |
| Tech Note | O.e.m. style plastic tank & aluminum core with quick-connect oil |
| Fits | Chevrolet · 7 vehicles |
OE-style design. Plastic tanks and an aluminum core match the original construction.
Cross-flow radiator. Promotes efficient coolant flow through a single-row core.
Quick-connect fittings. Includes a high-efficiency plate-type oil cooler connection.
Cross-references BBB Industries 13575, 23336320 and 84493631 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE-Style Radiator for Malibu Cooling Service
CSF 3899 is an OE-style radiator built with an aluminum core and plastic tanks for direct replacement cooling service. It is engineered for the 2016-2022 Chevrolet Malibu and includes quick-connect oil cooler fittings for the factory-style layout.
Key Features
- Aluminum core with plastic tank construction
- Cross flow radiator design with 1-row core
- Core dimensions: 26 in. length, 16 5/8 in. width, 5/8 in. thickness
- 1 5/16 in. left inlet and 1 5/16 in. right outlet
- High-efficiency plate-type oil cooler, 11 13/16 in.
- OE-style plastic tank and aluminum core with quick-connect oil cooler fittings
- Compatible With 2016-2022 Chevrolet Malibu radiator replacement applications
Detailed Description
CSF part number 3899 is a replacement radiator for Chevrolet Malibu models from 2016 through 2022. The cross flow layout, single-row core, and OE-style tank-and-core construction are sized for factory-style cooling system service, while the integrated plate-type oil cooler supports vehicles equipped with the original cooler connection points. This CSF 3899 radiator is a practical choice for Malibu owners needing a direct-fit cooling system replacement.
This part cross-references BBB Industries 13575 for the same application.
Common Issues This Radiator Can Address
- Coolant leaks from cracked or aged radiator tanks
- Restricted coolant flow from internal core wear or blockage
- Overheating caused by reduced heat transfer efficiency
- Oil cooler connection concerns on factory-equipped vehicles
- Cooling system service needs on a 2016-2022 Chevrolet Malibu
Installation Notes and Tips
Verify inlet and outlet orientation before installation: the inlet is 1 5/16 in. left and the outlet is 1 5/16 in. right. This radiator does not include a cap. Confirm the vehicle’s factory oil cooler connection style and compare the original unit to the CSF 3899 before installation.
Quality Assurance
CSF builds this radiator with an OE-style plastic tank and aluminum core construction to match factory replacement requirements for the Chevrolet Malibu platform. Confirm fitment by year and cooling-system configuration before installation.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Malibu | 2.0L | L4 | N/A | — |
| 2021 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2020 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2018 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2017 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Chevrolet | Malibu | 2.0L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| No rows match your filter. | ||||||
