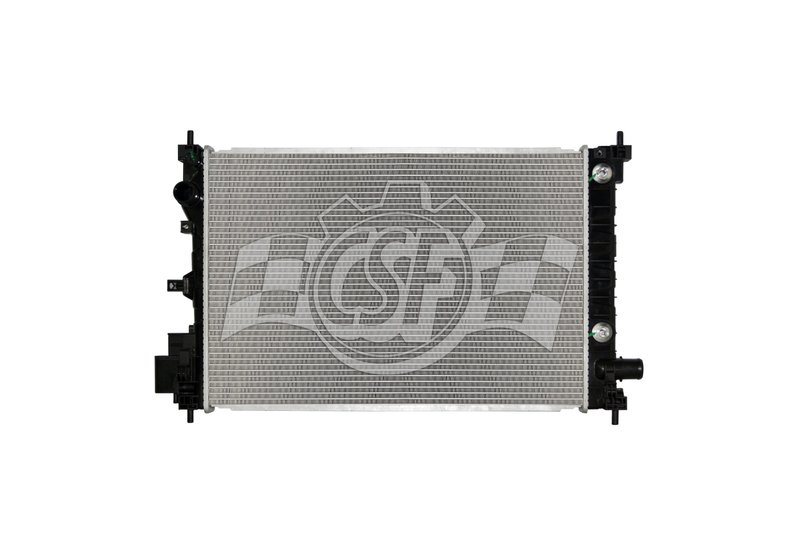

CSF 3908 Radiator
| Brand | CSF 3908 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 16 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 23 5/8 |
| Inlet Diameter | 1 5/16 left |
| Outlet Diameter | 1 5/16 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 5 1/16 |
| Box Length (in) | 32 1/4 |
| Box Weight (lbs) | 8 |
| Box Width (in) | 20 13/16 |
| Hazardous Material | No |
| Inlet Length (in) | 16 9/16 |
| Inlet Width (in) | 1 1/2 |
| Oil Cooler (in) | 10 1/16 (high-efficiency plate type) |
| Outlet Length (in) | 16 9/16 |
| Outlet Width (in) | 1 1/2 |
| Tech Note | O.e.m. style plastic tank & aluminum core with quick-connect oil |
| Fits | Chevrolet · 7 vehicles |
OE-style construction. Plastic tanks and an aluminum core with quick-connect oil cooler fittings.
Cross-flow design. Promotes efficient coolant flow through a single-row radiator core.
Aluminum core. Lightweight construction with a 5/8-inch core thickness.
Cross-references BBB Industries 13646, TYC 13590 and 42349017 for the same application. See all 5.
CSF 3908 Radiator for Chevrolet Spark
The CSF 3908 is an OE-style radiator built with an aluminum core and plastic tanks for the 2016-2022 Chevrolet Spark. It uses a cross-flow layout with quick-connect oil cooler fittings and a high-efficiency plate-type oil cooler section for a direct replacement approach.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow radiator design
- Single-row core with 5/8 in. core thickness
- Core dimensions: 23 5/8 in. length and 16 in. width
- 1 5/16 in. left inlet and 1 5/16 in. right outlet
- High-efficiency plate-type oil cooler section, 10 1/16 in.
- Quick-connect oil cooler fittings for OE-style serviceability
- Fits Chevrolet Spark models from 2016-2022
Detailed Description
Built for Chevrolet Spark cooling system replacement, the CSF 3908 radiator follows an OE-style layout with a plastic tank and aluminum core combination. The cross-flow design, single-row core, and compact 5/8 in. thickness support factory-style packaging, while the integrated oil cooler section uses a high-efficiency plate-type design with quick-connect fittings. This part cross-references TYC 13590 and BBB Industries 13646 for the same application. Fits 2016-2021 Chevrolet Spark, N/A. Fits 2022 Chevrolet Spark, N/A.
Common Problems This Radiator Can Address
- Coolant leaks from a cracked or aging radiator tank
- Restricted cooling performance from a damaged or clogged core
- Transmission or fluid temperature concerns tied to the integrated oil cooler section
- Overheating caused by radiator deterioration in a Chevrolet Spark
- Fitment issues when replacing an OE-style Spark radiator with the correct inlet and outlet layout
Installation Notes and Tips
Verify inlet and outlet orientation before installation: this unit uses a 1 5/16 in. left inlet and 1 5/16 in. right outlet. Confirm the vehicle’s cooling system configuration and oil cooler connection style match the OE layout on your Chevrolet Spark. Cap is not included.
Quality Assurance
CSF manufactures this radiator as an OE-style replacement with aluminum core and plastic tank construction, matching the factory-style design used on the Chevrolet Spark platform. Part number 3908 is built to support direct-fit replacement needs for 2016-2022 Spark applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2022 | Chevrolet | Spark | 1.4L | L4 | N/A | Upgraded with Higher Performance & Stronger B-Tube Design |
| 2021 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2020 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2018 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2017 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Chevrolet | Spark | 1.4L | L4 | N/A | OE style design ensures optimal fitment and performance. |
