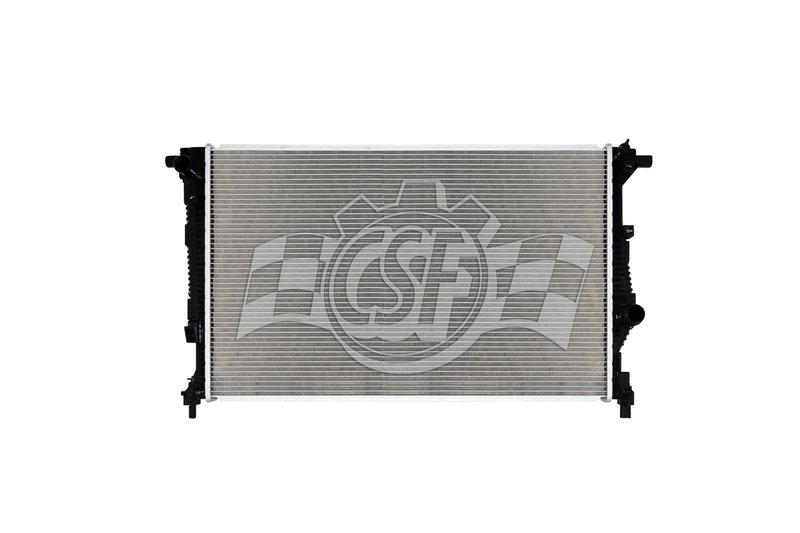

CSF 3912 Radiator
OE Quality 60-Day Returns
CSF

CSF 3912 Radiator

Brand CSF 3912
Core Thickness 1 1/4
Core Width 16 5/8
Core Material Aluminum
Tank Material Plastic
Core Length 26 9/16
Inlet Diameter 1 3/16 left
Outlet Diameter 1 1/4 right
Down Flow Or Cross Flow Type Cross flow
Radiator Core Row Quantity 1
Cap Included No
Box Height (in) 7 1/16
Box Length (in) 34 3/16
Box Weight (lbs) 11
Box Width (in) 21 3/16
Hazardous Material No
Inlet Length (in) 17 1/4
Inlet Width (in) 1 5/8
Oil Cooler (in) No
Outlet Length (in) 17 1/4
Outlet Width (in) 1 5/8
Tech Note O.e.m. style plastic tank & aluminum core with quick-connect outl
Fits Jeep · 11 vehicles

OE-style design. Plastic tank and aluminum core construction with a quick-connect outlet pipe.

Cross-flow radiator. Engineered for efficient coolant flow through a single-row core.

Direct replacement fit with no cap included.

Cross-references BBB Industries 13771, 68291177AA and 68291178AA for the same application. See all 6.

$106.16Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $106.16
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator options

CSF 3912 Radiator for Jeep Cherokee

CSF 3912 is an OE-style radiator built with an aluminum core and plastic tanks for the Jeep Cherokee. It uses a cross-flow design with a quick-connect outlet pipe to match the factory-style cooling layout and support proper coolant routing.

  • OE-style plastic tank and aluminum core construction
  • Cross-flow radiator design
  • 1 1/4 in. core thickness
  • 1-row core configuration
  • Inlet: 1 3/16 in. left; outlet: 1 1/4 in. right
  • Core dimensions: 26 9/16 in. length, 16 5/8 in. width
  • Tech note: quick-connect outlet pipe

Fitment Details

Fits 2022-2023 Jeep Cherokee, N/A. Fits 2019-2021 Jeep Cherokee, N/A. This part cross-references BBB Industries 13771 for the same application.

Part number 3912 is a direct-fit radiator option for Jeep Cherokee cooling system service where an OE-style replacement is needed. The aluminum core helps transfer heat efficiently, while the plastic tank construction follows the factory-style layout used on the listed Cherokee applications. The inlet and outlet sizing, along with the cross-flow configuration, are important details for matching the original cooling system connections.

Common Cooling System Issues

  • Coolant leaks from a damaged radiator tank or core
  • Overheating caused by restricted heat transfer
  • Cracked or aging factory radiator components
  • Fitment problems when replacing a radiator with the wrong inlet or outlet layout
  • Cooling performance loss after impact or corrosion damage

Installation Notes

Verify inlet and outlet orientation before installation, since this radiator uses a left-side inlet and right-side outlet. Confirm the quick-connect outlet pipe connection matches the vehicle’s factory setup, and inspect hoses, clamps, and surrounding cooling components before final assembly. Part number 3912 is listed for 2019-2023 Jeep Cherokee applications, including the upgraded 2022-2023 model.

Quality Assurance

CSF manufactures this radiator as an OE-style replacement with aluminum core and plastic tank construction for the listed Jeep Cherokee fitments. Part number 3912 is built to match the factory-style cooling system layout for the specified applications.

Related reading

This part fits 11 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2023JeepCherokee2.0LL4N/AUpgraded Model
2022JeepCherokee3.2LV6N/AUpgraded Model
2021JeepCherokee3.2LV6N/AOE style design ensures optimal fitment and performance.
2021JeepCherokee2.4LL4N/AOE style design ensures optimal fitment and performance.
2021JeepCherokee2.0LL4N/AOE style design ensures optimal fitment and performance.
2020JeepCherokee2.4LL4N/AOE style design ensures optimal fitment and performance.
2020JeepCherokee2.0LL4N/AOE style design ensures optimal fitment and performance.
2020JeepCherokee3.2LV6N/AOE style design ensures optimal fitment and performance.
2019JeepCherokee2.0LL4N/AOE style design ensures optimal fitment and performance.
2019JeepCherokee2.4LL4N/AOE style design ensures optimal fitment and performance.
2019JeepCherokee3.2LV6N/AOE style design ensures optimal fitment and performance.
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
BBB Industries — 1377168291177AA68291178AA68291179AACH3010384CH3010385
