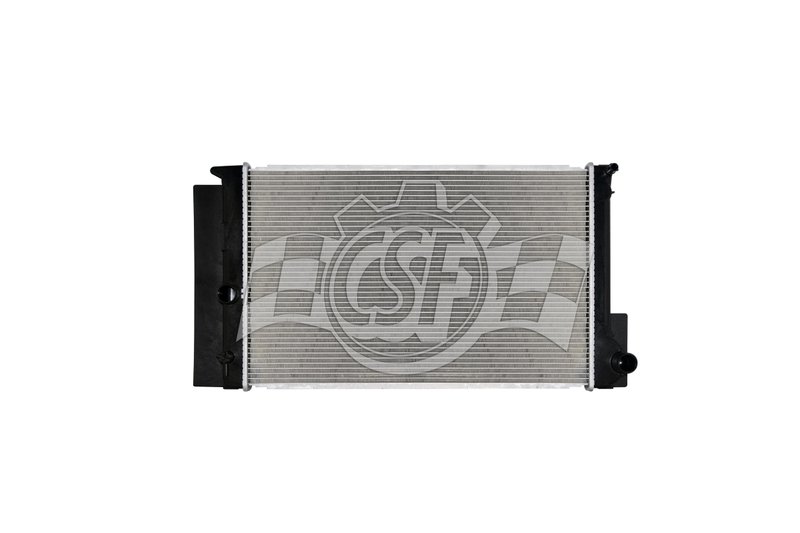

CSF 3919 Radiator
| Brand | CSF 3919 |
|---|---|
| Core Thickness | 5/8 |
| Core Width | 14 5/8 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 23 9/16 |
| Inlet Diameter | 1 3/8 left |
| Outlet Diameter | 1 3/8 right |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 4 1/2 |
| Box Length (in) | 31 5/8 |
| Box Weight (lbs) | 7 |
| Box Width (in) | 18 1/4 |
| Hazardous Material | No |
| Inlet Length (in) | 15 7/16 |
| Inlet Width (in) | 1 5/16 |
| Oil Cooler (in) | No |
| Outlet Length (in) | 15 7/16 |
| Outlet Width (in) | 1 5/16 |
| Tech Note | O.e.m. style plastic tank & aluminum core. |
| Fits | Scion and Toyota · 3 vehicles |
OEM-style design. Plastic tank and aluminum core construction matches the original layout.
Cross-flow radiator. Engineered for efficient cooling performance.
Wind tunnel tested. Validated in the lab for cooling performance.
Cross-references Bosch 13552, 16400-22160 and SC3010110 for the same application. See all 3.
OE-Style Radiator for Corolla iM and Scion iM
Restore cooling system performance with the CSF 3919 radiator, built as an OE-style replacement with a plastic tank and aluminum core. It is engineered for direct-fit service on select Toyota Corolla iM and Scion iM applications, with cross-flow construction and factory-style inlet and outlet placement.
CSF has manufactured radiators for decades, with production backed by ISO/TSO-certified facilities and validation testing focused on cooling performance. The 3919 radiator reflects that approach with a design intended to match original equipment dimensions and cooling layout.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow radiator design
- Single-row core configuration
- Core thickness: 5/8 in.
- Core dimensions: 23 9/16 in. length x 14 5/8 in. width
- Inlet diameter: 1 3/8 in., left side
- Outlet diameter: 1 3/8 in., right side
- No radiator cap included
- Part number: CSF 3919
Detailed Description
The CSF 3919 radiator is designed for 2017-2018 Toyota Corolla iM and 2016 Scion iM applications, with OE-style fitment and cooling-system geometry that follows the original layout. The aluminum core helps transfer heat efficiently, while the plastic tank design mirrors the factory configuration for straightforward replacement service. This radiator is a practical choice for drivers replacing a leaking, clogged, or damaged original unit on a Corolla iM or Scion iM.
This part cross-references Bosch 13552 for the same application.
What It Helps Address
- Coolant leaks from a cracked or aging radiator tank
- Restricted coolant flow from internal corrosion or buildup
- Overheating caused by reduced heat dissipation
- Physical damage to the radiator core or end tanks
- Temperature instability from a failing OE radiator
Installation Notes and Tips
Verify inlet and outlet orientation before installation: the inlet is on the left and the outlet is on the right. Confirm core dimensions and mounting points against the original radiator before removal. Transfer any required vehicle-specific components from the original assembly as needed, and inspect hoses, clamps, and coolant condition during replacement. This radiator does not include a cap.
Quality Assurance
CSF manufactures radiators in ISO/TSO-certified facilities and validates cooling performance through engineering and testing processes. The brand supplies a wide range of radiator applications for major vehicle platforms worldwide, including OE-style replacement designs like the CSF 3919.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Toyota | Corolla iM | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2017 | Toyota | Corolla iM | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2016 | Scion | iM | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
