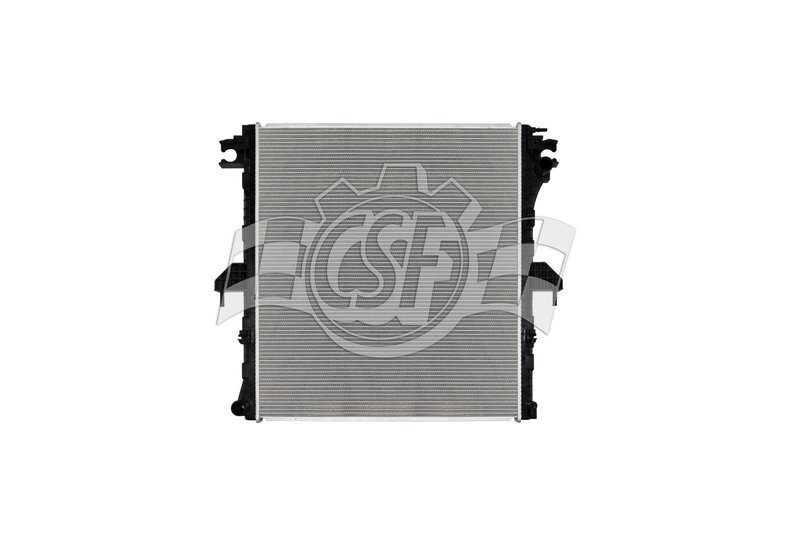

CSF 3929 Radiator
| Brand | CSF 3929 |
|---|---|
| Core Thickness | 1 1/4 |
| Core Width | 26 |
| Core Material | Aluminum |
| Tank Material | Plastic |
| Core Length | 23 1/4 |
| Inlet Diameter | 1 5/16 right |
| Outlet Diameter | 1 5/16 left |
| Down Flow Or Cross Flow Type | Cross flow |
| Radiator Core Row Quantity | 1 |
| Cap Included | No |
| Box Height (in) | 5 11/16 |
| Box Length (in) | 32 5/8 |
| Box Weight (lbs) | 14 |
| Box Width (in) | 29 13/16 |
| Hazardous Material | No |
| Inlet Length (in) | 26 7/8 |
| Inlet Width (in) | 1 9/16 |
| Oil Cooler (in) | No |
| Outlet Length (in) | 26 7/8 |
| Outlet Width (in) | 1 9/16 |
| Tech Note | O.e.m. style plastic tank & aluminum core. |
| Fits | Ford · 9 vehicles |
OEM-style design. Plastic tanks and an aluminum core match the original construction.
Cross-flow radiator. Engineered for efficient coolant flow and cooling performance validation.
ISO/TSO certified. Built in certified factories and sold worldwide for decades.
Cross-references GM3010626 and KB3Z 8005 A for the same application. See all 2.
CSF 3929 Radiator for Ford Ranger
The CSF 3929 radiator is an OE-style replacement built with an aluminum core and plastic tanks for the 2019-2023 Ford Ranger. It is engineered as a cross-flow radiator with a 1 1/4-inch core thickness to support cooling performance in daily driving and demanding use.
Key Features
- OE-style plastic tank and aluminum core construction
- Cross-flow design for the Ford Ranger cooling system layout
- 1 1/4-inch core thickness with a single-row core
- Inlet and outlet sizes: 1 5/16-inch right inlet, 1 5/16-inch left outlet
- No radiator cap included
- CSF part number 3929
Detailed Description
Built for 2019-2020 Ford Ranger and 2021-2023 Ford Ranger applications, the CSF 3929 radiator follows an OE-style design to help maintain proper fitment and cooling system function. The aluminum core and plastic tank construction mirrors the factory layout while the upgraded heavy-duty core specification for 2021-2023 Ford Ranger models adds thickness over the OEM 28mm design, measuring 30mm for added cooling capacity. CSF manufactures radiators to high-performance standards and validates cooling performance through laboratory wind tunnel testing. This part cross-references GM3010626 and KB3Z 8005 A for the same application.
What This Radiator Helps Address
- Overheating caused by a worn or restricted radiator core
- Coolant leaks from aging plastic tanks or core seams
- Reduced cooling efficiency under load or in hot weather
- Fitment issues from damaged or incorrect replacement radiators
- Cooling system service needs on Ford Ranger models
Installation Notes and Tips
Verify inlet and outlet orientation before installation: the CSF 3929 uses a right-side inlet and left-side outlet. Confirm radiator dimensions, hose routing, and mounting points against the original unit before removal. Inspect hoses, clamps, and coolant condition during replacement to help ensure a complete cooling system service on your Ford Ranger.
Quality Assurance
CSF radiators are manufactured in ISO/TSO-certified facilities and built to established performance standards. The brand has supplied radiators worldwide for more than 50 years and uses engineering validation methods to support consistent cooling performance.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2023 | Ford | Ranger | 2.3L | L4 | — | N/A | Upgraded Heavy Duty Core. 7% Thicker 30mm vs OEM 28mm |
| 2022 | Ford | Ranger | 2.3L | L4 | — | N/A | Upgraded Heavy Duty Core. 7% Thicker 30mm vs OEM 28mm |
| 2021 | Ford | Ranger | 2.3L | L4 | — | N/A | Upgraded Heavy Duty Core. 7% Thicker 30mm vs OEM 28mm |
| 2020 | Ford | Ranger | 3.2L | L5 | DIESEL | N/A | OE style design ensures optimal fitment and performance. |
| 2020 | Ford | Ranger | 2.5L | L4 | — | N/A | OE style design ensures optimal fitment and performance. |
| 2020 | Ford | Ranger | 2.3L | L4 | — | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Ford | Ranger | 3.2L | L5 | DIESEL | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Ford | Ranger | 2.3L | L4 | — | N/A | OE style design ensures optimal fitment and performance. |
| 2019 | Ford | Ranger | 2.5L | L4 | — | N/A | OE style design ensures optimal fitment and performance. |
