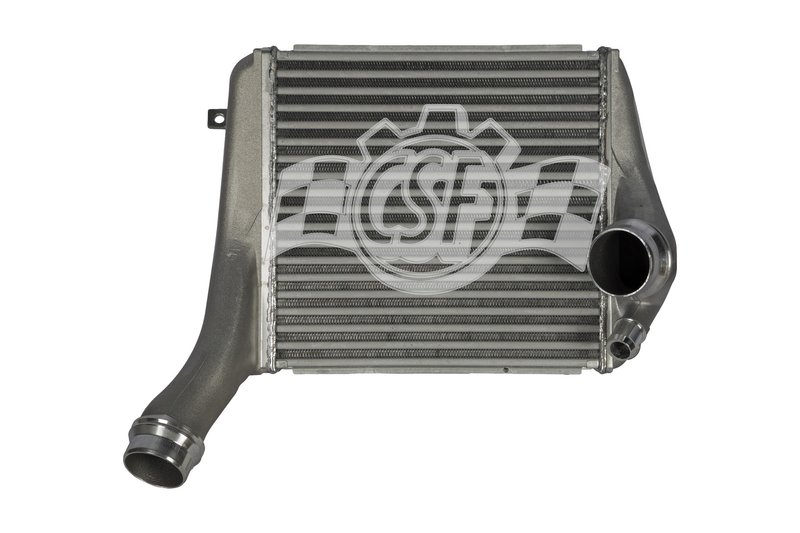

CSF 6034 Intercooler - Right
OE Quality 60-Day Returns
CSF

CSF 6034 Intercooler - Right

Brand CSF 6034
Position Right
Box Height (in) 8
Box Length (in) 20
Box Weight (lbs) 8
Box Width (in) 16
Core Length 11 5/16
Core Material Aluminum
Core Thickness 2 7/16
Core Width 11 5/8
Hazardous Material No
Inlet Tube (in) 2 3/8
Outlet Tube (in) 2 3/16
Tank Material Aluminum
Tech Note Aluminum Die Cast Tanks & quick-connect inlet & outlet pipe
Fits Porsche · 12 vehicles

Drop-in fit. Designed and engineered for straightforward installation.

Aluminum construction. Aluminum core and tanks help support efficient cooling performance.

Die-cast tanks. Quick-connect inlet and outlet pipes simplify connections.

Cross-references 970 110 210 61, 97011021002 and PO3012103 for the same application. See all 3.

$584.68Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $584.68
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Intercooler options

CSF 6034 Intercooler for Porsche Panamera

The CSF 6034 intercooler is an OE-style replacement built for the 2010-2016 Porsche Panamera, right side application. It uses an aluminum core with aluminum die-cast tanks and quick-connect inlet and outlet pipes for a direct-fit layout that matches the original configuration.

Key Features

  • Fits 2010-2016 Porsche Panamera, right
  • OE style design for factory-style replacement fitment
  • Aluminum core construction for efficient charge-air cooling
  • Aluminum die-cast tanks for durability and consistent sealing surfaces
  • Quick-connect inlet and outlet pipe design
  • Core dimensions: 11 5/16 in. length, 11 5/8 in. width, 2 7/16 in. thickness
  • Inlet tube: 2 3/8 in.; outlet tube: 2 3/16 in.

Detailed Description

Built for the Porsche Panamera right-side charge-air cooling circuit, CSF part number 6034 is engineered around a drop-in fit and factory-style layout. The aluminum core and aluminum tank construction support consistent heat transfer, while the die-cast tank design and quick-connect pipe connections follow the OE configuration for straightforward replacement. This part cross-references Porsche OE numbers 970 110 210 61 and 97011021002 for the same application.

For buyers searching for a Porsche Panamera intercooler right side replacement, CSF 6034 provides the dimensions and connection style needed to match the original setup. It is a direct-fit option for 2010, 2011, 2012, 2013, 2014, 2015, and 2016 Panamera models listed in the fitment data.

What It Helps Address

  • Damaged or leaking intercooler housing
  • Cracked or corroded aluminum tanks
  • Restricted charge-air cooling performance from a worn core
  • Fitment issues caused by non-OE-style replacement parts
  • Failed quick-connect pipe interfaces on the right-side intercooler assembly

Installation Notes and Tips

Verify right-side fitment before installation and compare the inlet and outlet tube sizes to the original unit. Confirm the OE-style quick-connect pipe arrangement and mounting points match the vehicle before final assembly. For Porsche Panamera intercooler replacement work, transfer and inspect surrounding charge-air components for wear, contamination, or damage before reinstalling the system.

Quality Assurance

CSF designs and engineers its intercooler coverage with a focus on superior performance and drop-in fit. Part number 6034 is built with aluminum die-cast tanks and an aluminum core to support consistent OE-style replacement quality for the Porsche Panamera application.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2016PorschePanamera3.0LV6RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2016PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2015PorschePanamera3.0LV6RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2015PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2014PorschePanamera3.0LV6RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2014PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2013PorschePanamera3.0LV6RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2013PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2012PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2012PorschePanamera3.0LV6RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2011PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
2010PorschePanamera4.8LV8RightOE Style Design; w/ Aluminum Die Cast Tanks, Aluminum Core Design
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
970 110 210 6197011021002PO3012103
