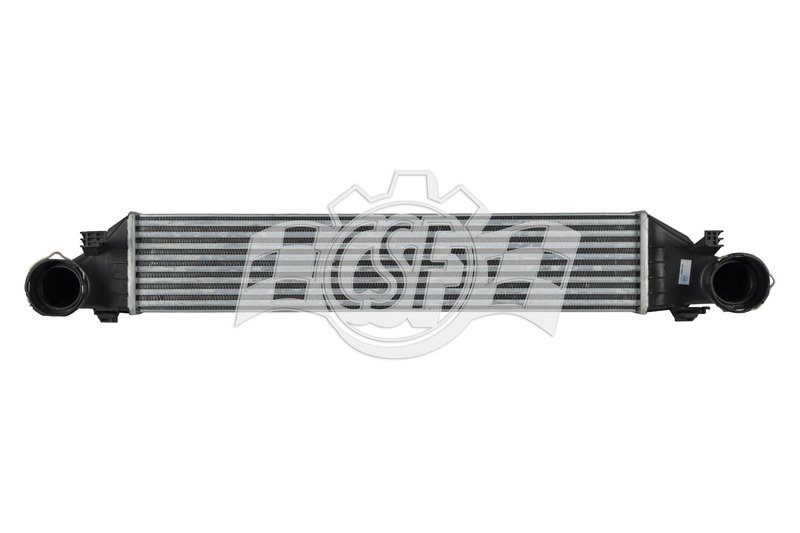

CSF 6056 Intercooler
| Brand | CSF 6056 |
|---|---|
| Box Height (in) | 7 |
| Box Length (in) | 41 |
| Box Weight (lbs) | 6 |
| Box Width (in) | 9 |
| Core Length | 25 9/16 |
| Core Material | Aluminum |
| Core Thickness | 1 15/16 |
| Core Width | 5 |
| Hazardous Material | No |
| Inlet Tube (in) | 2 9/16 |
| Outlet Tube (in) | 2 9/16 |
| Tank Material | Plastic |
| Tech Note | O.E.M. Style Tube & Fin Core Design with quck-connect inlet &outlet pipe |
| Fits | Mercedes-Benz · 3 vehicles |
OE-style design. Tube-and-fin core with quick-connect inlet and outlet pipes.
Aluminum core. Lightweight construction helps promote efficient cooling.
Drop-in fit. Engineered for straightforward installation.
Cross-references 2035000000, 2035000600 and MB3012100 for the same application. See all 3.
OE-Style Intercooler for Mercedes-Benz C230
CSF Part Number 6056 is an OE-style intercooler built for direct replacement on 2003-2005 Mercedes-Benz C230 models. It uses an aluminum core with plastic tanks and quick-connect inlet and outlet pipes to match the factory layout and support consistent charge-air cooling.
Key Features
- OE-style tube-and-fin core design for factory-like fitment
- Aluminum core construction with plastic end tanks
- Core dimensions: 25 9/16 in. length, 5 in. width, 1 15/16 in. thickness
- 2 9/16 in. inlet and outlet tube connections
- Drop-in replacement design for 2003-2005 Mercedes-Benz C230
- CSF Part Number 6056 for easy identification and ordering
Product Details
CSF 6056 is engineered as a direct-fit intercooler for the Mercedes-Benz C230, 2003-2005. The OE-style tube-and-fin core design follows the factory configuration, while the quick-connect inlet and outlet pipe connections help maintain the original routing and mounting layout. With an aluminum core and plastic tanks, this intercooler is built to match the vehicle’s original packaging requirements while supporting efficient charge-air cooling.
This part cross-references Mercedes-Benz OE-style applications such as 2035000000 and 2035000600 for the same vehicle platform. If you are searching for a Mercedes-Benz C230 intercooler replacement, CSF 6056 is the part number to reference.
What It Helps Address
- Cracked or leaking factory intercooler tanks
- Reduced boost-air cooling performance from a worn intercooler
- Fitment issues caused by non-OE-style replacement parts
- Airflow loss from damaged tube-and-fin core components
- Factory connection mismatch at the inlet or outlet pipes
Installation Notes
Verify the vehicle is a 2003-2005 Mercedes-Benz C230 before ordering. Confirm inlet and outlet tube size, core dimensions, and OE-style quick-connect pipe layout against the original unit. Because this intercooler is designed around factory-style fitment, installation should follow the original mounting and hose routing points on the vehicle.
Quality Assurance
CSF designs and engineers its cooling components for direct-fit replacement and performance-focused OE-style construction. Part Number 6056 is built to match the factory application for the Mercedes-Benz C230 while maintaining the dimensional and connection requirements of the original intercooler.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2005 | Mercedes-Benz | C230 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2004 | Mercedes-Benz | C230 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
| 2003 | Mercedes-Benz | C230 | 1.8L | L4 | N/A | OE style design ensures optimal fitment and performance. |
