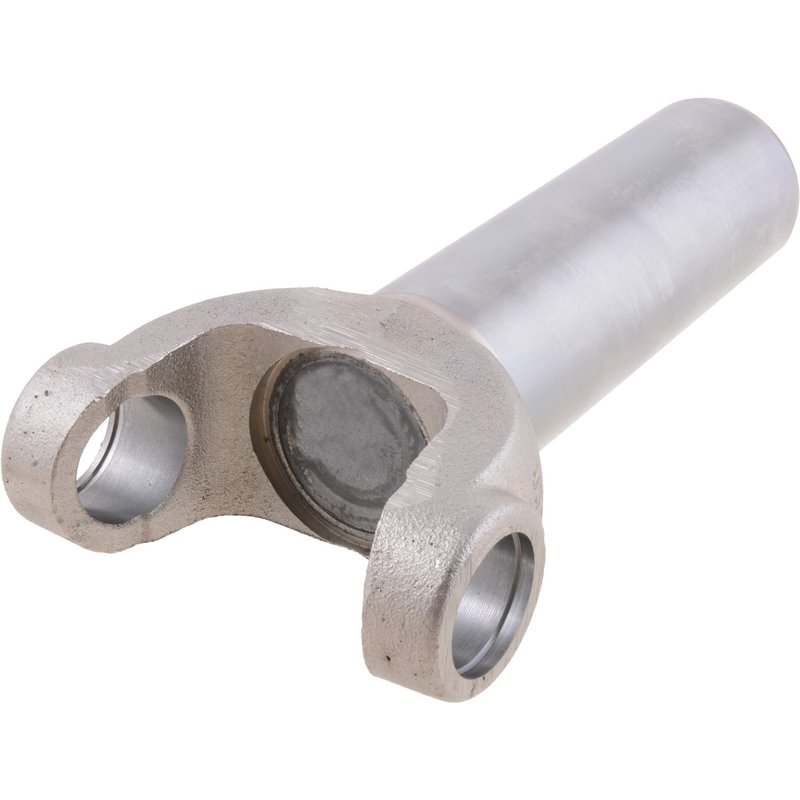

Dana Spicer 3-3-7041X Drive Shaft Transmission Slip Yoke

Spicer Transmission Slip Yoke for Super Duty Driveline Service

This Dana Spicer FSGR transmission slip yoke is built for driveline service on select Ford Super Duty trucks. It is a steel, Series 1410 slip yoke engineered with precise spline and yoke dimensions for proper driveshaft engagement and fitment.

Use part number 3-3-7041X when replacing a worn or damaged slip yoke on compatible Ford F-250 Super Duty and Ford F-350 Super Duty applications. Dana Spicer designs, tests, and manufactures these components as a matched system to support consistent driveline performance.

Key Features

• Brand: Dana Spicer FSGR
• Part number: 3-3-7041X
• Part type: drive shaft transmission slip yoke
• Material: steel
• Series: 1410
• Style: SR
• 33/34 involute spline design
• Spline O.D. (STD): 1.551 in.
• Hub diameter: 2.086 in.
• Outside yoke dimension: 4.438 in.
• Bearing cap diameter: 1.188 in.
• To end of spline: 8.110 in.

Product Details

The 3-3-7041X is a steel transmission slip yoke for driveline and axle service, sized for Series 1410 applications. Its measured dimensions, including the spline outside diameter, hub diameter, bearing cap diameter, and overall yoke dimensions, help ensure the correct interface with the driveshaft and transmission output connection. If you are servicing a Ford F-250 Super Duty or Ford F-350 Super Duty driveline, this Spicer yoke provides a direct replacement option for the listed applications.

This part cross-references 3C3Z-4841-AA and DS337041X for the same application.

Vehicle Fitment

• Fits 2010 Ford F-250 Super Duty, N/A; To 02/12/2010; FSGR
• Fits 2008-2010 Ford F-350 Super Duty, N/A; FSGR
• Fits 2003-2006 Ford F-350 Super Duty, N/A; FSGR
• Fits 2008-2009 Ford F-250 Super Duty, N/A; FSGR
• Fits 2005-2006 Ford F-250 Super Duty, N/A; FSGR
• Fits 2007 Ford F-250 Super Duty, N/A; To 12/18/2006; FSGR
• Fits 2007 Ford F-350 Super Duty, N/A; To 12/18/2006; FSGR
• Fits 2003-2004 Ford F-350 Super Duty, N/A; with Dual Rear Wheels (DRW); FSGR
• Fits 2003-2004 Ford F-350 Super Duty, N/A; with Single Rear Wheels (SRW); FSGR
• Fits 2003 Ford F-250 Super Duty, N/A; From 11/23/2002; FSGR

Installation Notes

Verify spline count, spline diameter, and yoke dimensions against the original part before installation. Confirm the vehicle build date and rear axle configuration where noted, since some Ford F-250 Super Duty and Ford F-350 Super Duty applications are date-specific. Inspect the driveshaft, output seal area, and related driveline components for wear before assembly.

Quality Assurance

Dana Spicer states that its design, engineering, testing, and manufacturing processes work together to deliver consistent performance in genuine Spicer components. This part is built to Spicer specifications for the listed Ford Super Duty applications.
