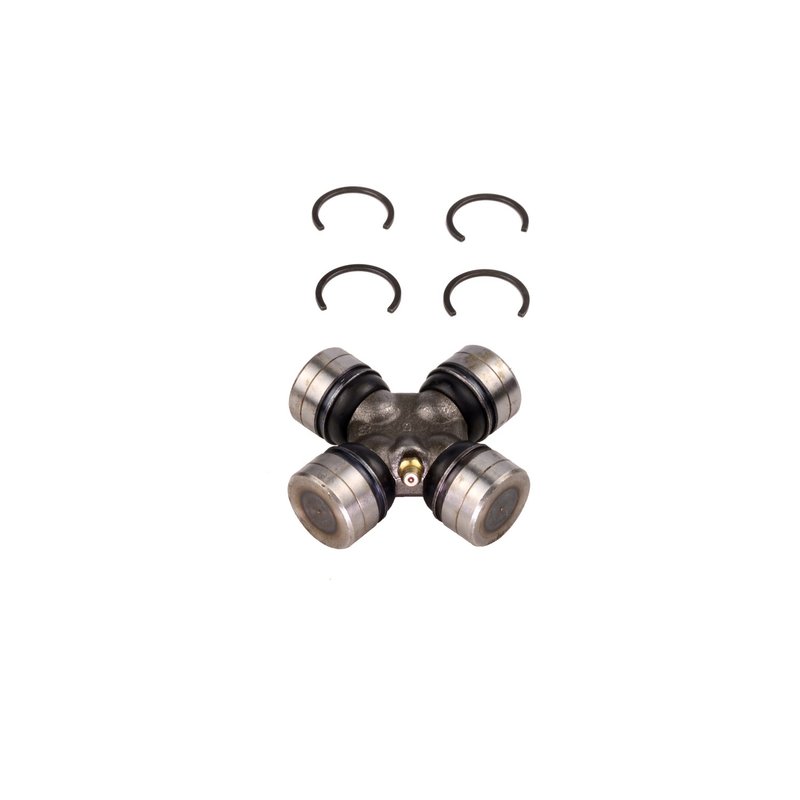

Dana Spicer 5-1515X Universal Joint

Reliable Universal Joint for Acura, Chevrolet, Honda, and Isuzu Vehicles

The Dana Spicer FSGR Universal Joint 5-1515X is engineered to provide dependable driveline performance for select Acura, Chevrolet, Honda, and Isuzu models. Designed with precision steel construction and greaseable features, this universal joint supports smooth power transfer and durability in demanding driving conditions.

• Compatible with Acura Amigo, Chevrolet LUV, Honda Passport, Pickup, Rodeo, SLX, Trooper, and Isuzu VehiCROSS
• Durable steel material construction
• Greaseable with one straight lube fitting in the cross for easy maintenance
• Round bearing caps with 1.142 inch (29 mm) diameter
• Internal snap ring included for secure installation
• Length A and B both 2.08 inches (52.8 mm)

About the Dana Spicer FSGR Product Line

The FSGR line from Dana Spicer focuses on driveline components designed for reliable performance and serviceability. This universal joint 5-1515X features the ISR style bearing caps, which are known for their internal snap ring design that ensures a secure fit and ease of installation. The greaseable cross with a single straight lube fitting supports routine maintenance, extending the service life of the joint in various vehicle applications.

Technical Details and Specifications

This universal joint is constructed from high-quality steel, providing strength and resistance to wear. Both bearing caps measure 1.142 inches (29 mm) in diameter and are round in shape, designed to fit specific driveline configurations. The internal snap ring type secures the bearing caps firmly in place, reducing the risk of joint failure. The overall length between bearing caps is 2.08 inches (52.8 mm) on both sides, matching OEM specifications for Chevy and Isuzu models.

Common Applications and Problem Solving

• Replaces worn or damaged universal joints in Acura Amigo and Honda Passport drivetrains
• Addresses driveline vibrations caused by failing universal joints in Chevrolet LUV and Pickup models
• Restores smooth rotational movement in Isuzu Rodeo and Trooper vehicles
• Prevents premature wear by enabling proper lubrication through grease fitting
• Secures driveline components with internal snap ring design to avoid joint loosening

Installation Notes and Tips

Ensure the universal joint 5-1515X is compatible with your vehicle’s make and model before installation. The internal snap ring requires careful handling during removal and installation to avoid damage. Use the grease fitting to apply lubricant regularly, which helps maintain joint performance and longevity. Verify that the bearing cap diameters and lengths match OEM specifications for a proper fit.

Quality Assurance and Warranty

Dana Spicer manufactures the FSGR universal joint 5-1515X to meet OEM standards for durability and fitment. The steel construction and greaseable design contribute to reliable operation under normal driving conditions. This part includes an internal snap ring for secure installation. Warranty details should be confirmed with the original equipment manufacturer or authorized distributor.
