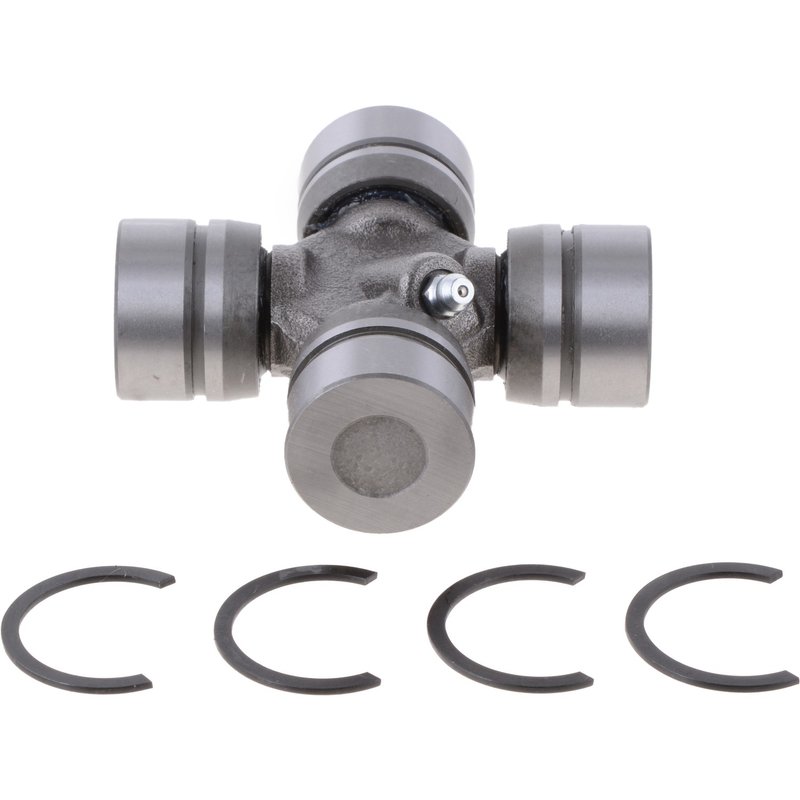

Dana Spicer 5-3221X Universal Joint
OE Quality 60-Day Returns
Dana Spicer
 FSGR

Dana Spicer 5-3221X Universal Joint

Brand Dana Spicer 5-3221X
Position Rear Driveshaft at Transmission, Rear Driveshaft at Rear Axle, Front Driveshaft at Front Axle, and Front Driveshaft at Transfer Case
Bearing Cap Diameter (1) 1.260
Bearing Cap Diameter (2) 1.260
Bearing Cap Diameter A (mm) 32.000
Bearing Cap Diameter B (mm) 32.000
Bearing Cap Type A Isr
Bearing Cap Type B Isr
Greaseable Y
Hardware Included N
Length A (In) 2.520
Length A (mm) 64.008
Length B (In) 2.520
Length B (mm) 64.008
Material Steel
OEM Mfg Toyota
Snap Ring Included Y
Snap Ring Type Internal
SR(1)Brng Cap to Brng Cap(OSR) 2.520
SR(2)Brng Cap to Brng Cap(OSR) 2.520
Type Isr style
Product line FSGR
Fits Lexus and Toyota · 124 vehicles

OE-style replacement. ISR-style universal joint with internal snap rings for straightforward service.

Steel construction. Built for durable driveline performance and dependable strength.

Greaseable design. Allows routine lubrication to help maintain smooth operation.

Cross-references Hayden 389, SKF UJ389 and 2-0020 for the same application. See all 13.

$81.04Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $81.04
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Universal Joint options

Spicer Universal Joint for Toyota Driveline Service

The Dana Spicer FSGR 5-3221X is a greaseable universal joint built for Toyota driveline applications that need precise fitment and dependable service. It is engineered with steel construction, internal snap rings, and ISR-style bearing caps for use in select Toyota Land Cruiser, Lexus LX450, and Toyota Sequoia driveshaft positions.

Key Features

  • Part number 5-3221X from Dana Spicer FSGR
  • ISR-style universal joint with internal snap rings
  • Greaseable design for routine serviceability
  • Steel construction for driveline durability
  • 1.260 in. / 32 mm bearing cap diameter on both ends
  • 2.520 in. / 64.008 mm bearing cap to bearing cap length on both sides
  • OE-matched application coverage for Toyota and Lexus driveline service

Product Details

Spicer universal joints are built around Dana engineering, testing, and manufacturing standards to deliver consistent driveline performance. The FSGR line focuses on serviceable replacement parts for vehicles that require a grease fitting and an internal snap ring configuration. This 5-3221X universal joint is listed for rear driveshaft and front driveshaft positions on Toyota Land Cruiser models, rear driveshaft positions on Lexus LX450, and rear driveshaft positions on Toyota Sequoia with a one-piece rear driveshaft. This part cross-references Hayden 389 and SKF UJ389 for the same application.

Fits 2005-2007 Toyota Sequoia, rear driveshaft at transmission and rear axle; fits 1996-1997 Lexus LX450, rear driveshaft at transmission and rear axle; fits 1977-1997 Toyota Land Cruiser, front driveshaft at front axle and transfer case, plus rear driveshaft at transmission and rear axle, depending on configuration.

Common Driveline Issues This Part Can Address

  • Driveline vibration caused by worn U-joint bearings
  • Clunking or clicking during acceleration or deceleration
  • Excessive play in the driveshaft connection
  • Greaseable joint replacement for service intervals
  • Restoration of smooth power transfer in the driveshaft

Installation Notes and Tips

Verify bearing cap diameter, cap type, and snap ring style before installation. This joint uses internal snap rings and ISR-style bearing caps, so the driveshaft yoke must match those specifications. Confirm the exact position on the vehicle, since Toyota Land Cruiser applications vary by year and driveline configuration, including models with or without CV at the transfer case. Clean the yoke bores thoroughly and grease the joint after installation.

Quality Assurance

Dana Spicer backs this universal joint with OE-level design and manufacturing discipline. The part is built to match the dimensional and service requirements used in Toyota driveline applications, helping ensure proper fit and reliable operation when installed in the correct position.

Related reading

This part fits 124 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2007ToyotaSequoia4WDRear Driveshaft at Transmission1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
2007ToyotaSequoia4WDRear Driveshaft at Rear Axle1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
2006ToyotaSequoia4WDRear Driveshaft at Transmission1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
2006ToyotaSequoia4WDRear Driveshaft at Rear Axle1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
2005ToyotaSequoia4WDRear Driveshaft at Transmission1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
2005ToyotaSequoia4WDRear Driveshaft at Rear Axle1 Piece Driveshaft; Greaseable; with 1 Piece Rear Drive Shaft; FSGR
1997LexusLX450—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1997LexusLX450—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
1997ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1997ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1997ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1997ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1996LexusLX450—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1996LexusLX450—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
1996ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1996ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1996ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1996ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1995ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1995ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1995ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1995ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1994ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1994ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1994ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1994ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1993ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1993ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1993ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1993ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1992ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1992ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1992ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1992ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1991ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1991ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1991ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1991ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1990ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1990ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1990ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1990ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1990ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1990ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1990ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1989ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1989ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1989ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1989ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1989ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1989ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1989ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1988ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1988ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1988ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1988ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1988ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1988ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1988ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1987ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1987ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1987ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1987ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1987ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1987ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1987ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1986ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1986ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1986ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1986ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1986ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1986ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1986ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1985ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1985ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1985ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1985ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1985ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1985ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1985ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1984ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1984ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1984ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1984ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1984ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1984ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1984ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1983ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1983ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1983ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1983ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1983ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1983ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1983ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1982ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1982ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1982ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1982ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1982ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1982ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1982ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1981ToyotaLand Cruiser—Front Driveshaft at Front AxleExcept CV at Transfer Case; Greaseable; FSGR
1981ToyotaLand Cruiser—Front Driveshaft at Transfer CaseExcept CV at Transfer Case; Greaseable; FSGR
1981ToyotaLand Cruiser—Rear Driveshaft at TransmissionExcept CV at Transfer Case; Greaseable; FSGR
1981ToyotaLand Cruiser—Rear Driveshaft at Rear AxleExcept CV at Transfer Case; Greaseable; FSGR
1981ToyotaLand Cruiser—Front Driveshaft at Front AxleGreaseable; with CV at Transfer Case; FSGR
1981ToyotaLand Cruiser—Rear Driveshaft at TransmissionGreaseable; with CV at Transfer Case; FSGR
1981ToyotaLand Cruiser—Rear Driveshaft at Rear AxleGreaseable; with CV at Transfer Case; FSGR
1980ToyotaLand Cruiser—Front Driveshaft at Front AxleFitment: Universal Joint with Grease Fitting; FSGR
1980ToyotaLand Cruiser—Front Driveshaft at Transfer CaseFitment: Universal Joint with Grease Fitting; FSGR
1980ToyotaLand Cruiser—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1980ToyotaLand Cruiser—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
1979ToyotaLand Cruiser—Front Driveshaft at Front AxleFitment: Universal Joint with Grease Fitting; FSGR
1979ToyotaLand Cruiser—Front Driveshaft at Transfer CaseFitment: Universal Joint with Grease Fitting; FSGR
1979ToyotaLand Cruiser—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1979ToyotaLand Cruiser—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
1978ToyotaLand Cruiser—Front Driveshaft at Front AxleFitment: Universal Joint with Grease Fitting; FSGR
1978ToyotaLand Cruiser—Front Driveshaft at Transfer CaseFitment: Universal Joint with Grease Fitting; FSGR
1978ToyotaLand Cruiser—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1978ToyotaLand Cruiser—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
1977ToyotaLand Cruiser—Front Driveshaft at Front AxleFitment: Universal Joint with Grease Fitting; FSGR
1977ToyotaLand Cruiser—Front Driveshaft at Transfer CaseFitment: Universal Joint with Grease Fitting; FSGR
1977ToyotaLand Cruiser—Rear Driveshaft at TransmissionFitment: Universal Joint with Grease Fitting; FSGR
1977ToyotaLand Cruiser—Rear Driveshaft at Rear AxleFitment: Universal Joint with Grease Fitting; FSGR
Directly replaces or cross-references 13 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Hayden — 389SKF — UJ3892-002004371-3602004371-3602104371-3603004371-602100437136020043713602104371360300437160210DS53221XE51511X
