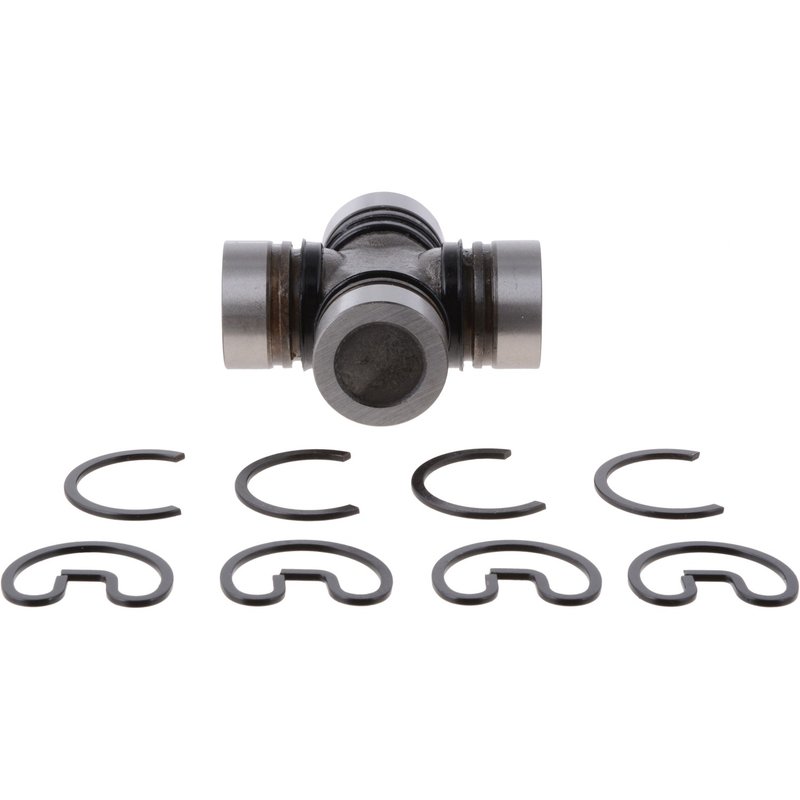

Dana Spicer 5-3224X Universal Joint

Spicer Universal Joint for Toyota Land Cruiser

The Dana Spicer FSGR 5-3224X is a greaseable universal joint built for driveline service in classic Toyota applications. It uses steel construction, external snap rings, and OSR-style bearing caps to support smooth articulation in front and intermediate shaft locations.

Demand genuine Spicer engineering for a replacement that matches the dimensional requirements of the original Toyota driveline setup. The 5-3224X is specified for Toyota Land Cruiser front driveshaft and intermediate shaft positions across 1965-1976 models.

Key Features

• Part number: 5-3224X
• Brand line: FSGR
• Greaseable design for serviceable maintenance
• Steel construction for driveline durability
• OSR style with OSR bearing cap type on both ends
• Bearing cap diameter: 1.123 in. / 28.500 mm
• Length A and Length B: 3.059 in. / 77.698 mm
• External snap ring included
• OEM series: Toyota

Detailed Description

Dana Spicer 5-3224X is a universal joint engineered for Toyota driveline service where precise cap diameter and span dimensions matter. It measures 1.123 inches at both bearing caps, with a 3.059-inch cap-to-cap length on each side, and uses an OSR style configuration with external snap rings. This makes it a direct-fit service part for Toyota Land Cruiser front driveshaft and intermediate shaft locations listed below.

The FSGR product line focuses on greaseable service joints for applications that benefit from routine lubrication. For Toyota Land Cruiser owners restoring or maintaining driveline function, the 5-3224X supports replacement of worn U-joints in the front axle, transfer case, and transmission-side intermediate shaft positions. This part cross-references Hayden 396 and SKF UJ396 for the same application.

What It Helps Fix

• Driveline vibration from worn universal joint bearings
• Clunking or clicking during acceleration and deceleration
• Loose or imprecise shaft movement at the transfer case or axle end
• Grease loss and accelerated wear in serviceable U-joint locations
• Noise from dry or damaged joint caps in Toyota Land Cruiser driveline assemblies

Installation Notes and Fitment

• Fits 1965-1976 Toyota Land Cruiser, Front Driveshaft at Front Axle
• Fits 1965-1976 Toyota Land Cruiser, Front Driveshaft at Transfer Case
• Fits 1965-1976 Toyota Land Cruiser, Intermediate Shaft at Transfer Case
• Fits 1965-1976 Toyota Land Cruiser, Intermediate Shaft at Transmission

Verify bearing cap diameter, overall span, and snap ring style before installation. Clean the yoke bores thoroughly, pack the joint with grease before service, and confirm the external snap rings seat fully in their grooves. The Toyota Land Cruiser fitment for the 5-3224X covers multiple driveline positions, so matching the original joint dimensions is essential.

Quality Assurance

Dana Spicer designs, tests, and manufactures driveline components through integrated engineering and production processes to maintain consistent fit and performance. The 5-3224X reflects that OE-focused approach for Toyota Land Cruiser driveline service.
