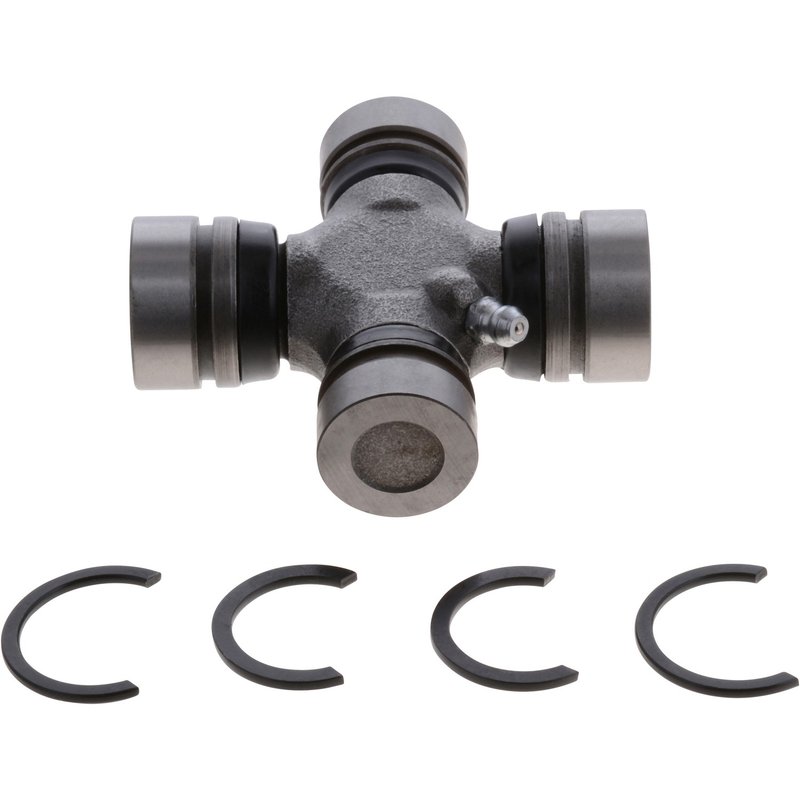

Dana Spicer 5-3229X Universal Joint - Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing or Rear Driveshaft at Transmission

Spicer Universal Joint for Mazda Driveshaft Service

The Dana Spicer 5-3229X is a greaseable universal joint built for Mazda driveline service where precise fit and dependable operation matter. It is designed for rear driveshaft applications on Mazda RX-7 and Mazda 626 models, including transmission, support bearing, and rear axle positions.

Built with steel construction, internal snap rings, and ISR-style bearing caps, this Spicer universal joint follows OE-style dimensions for Mazda applications. The 25.000 mm bearing cap diameter and 43.713 mm cap-to-cap length help support accurate driveshaft service on the specified vehicles.

Key Features

• Part number: 5-3229X
• Brand: Dana Spicer FSGR
• Universal joint with grease fitting for serviceable driveline maintenance
• Steel construction for driveline durability
• ISR style with ISR bearing cap type on both ends
• Internal snap ring design with snap rings included
• Bearing cap diameter: 0.984 in / 25.000 mm
• Cap-to-cap length: 1.721 in / 43.713 mm

Detailed Description

The Dana Spicer 5-3229X universal joint is engineered for Mazda rear driveshaft applications that require a greaseable, OE-style replacement. Spicer design, engineering, testing, and manufacturing are integrated to maintain consistent driveline performance, and this part is built to match the dimensional requirements listed for Mazda RX-7 and Mazda 626 service. The FSGR product line identifies a greaseable service joint configuration, making this unit a practical choice for driveline maintenance where periodic lubrication is preferred. This part cross-references Hayden 397 and SKF UJ397 for the same application.

Vehicle Fitment

• Fits 1979-1983 Mazda RX-7, Rear Driveshaft at Transmission; Fitment: Universal Joint with Grease Fitting; FSGR
• Fits 1979-1983 Mazda RX-7, Rear Driveshaft at Rear Axle; Fitment: Universal Joint with Grease Fitting; FSGR
• Fits 1979-1982 Mazda 626, Rear Driveshaft at Transmission; Fitment: Universal Joint with Grease Fitting; FSGR
• Fits 1979-1982 Mazda 626, Rear Driveshaft at Support Bearing; Fitment: Universal Joint with Grease Fitting; FSGR
• Fits 1979-1982 Mazda 626, Rear Driveshaft at Rear Axle; Fitment: Universal Joint with Grease Fitting; FSGR

Common Issues This Part Can Address

• Driveline vibration from worn universal joint bearings
• Clunking or driveline lash during acceleration or deceleration
• Need for a greaseable replacement during Mazda RX-7 or Mazda 626 driveshaft service
• Loose or noisy rear driveshaft operation at the transmission, support bearing, or rear axle
• Wear-related play in the driveline joint assembly

Installation Notes and Tips

Verify bearing cap diameter, cap-to-cap length, and snap ring style before installation. This joint uses internal snap rings and ISR-style bearing caps, so the driveshaft yoke must match those specifications. Clean the yoke bores thoroughly, pack the joint with grease before service, and confirm smooth articulation after assembly. Always compare the removed part to the 5-3229X before pressing in the new joint.

Quality Assurance

Dana Spicer states that its design, engineering, testing, and manufacturing processes work together to deliver consistent driveline performance. The 5-3229X is built to Spicer dimensional and material standards for Mazda driveline applications.
