Dana Spicer 5-3241X Universal Joint - Rear Driveshaft at Rear Axle or Rear Driveshaft at Support Bearing

Dana Spicer 5-3241X Universal Joint

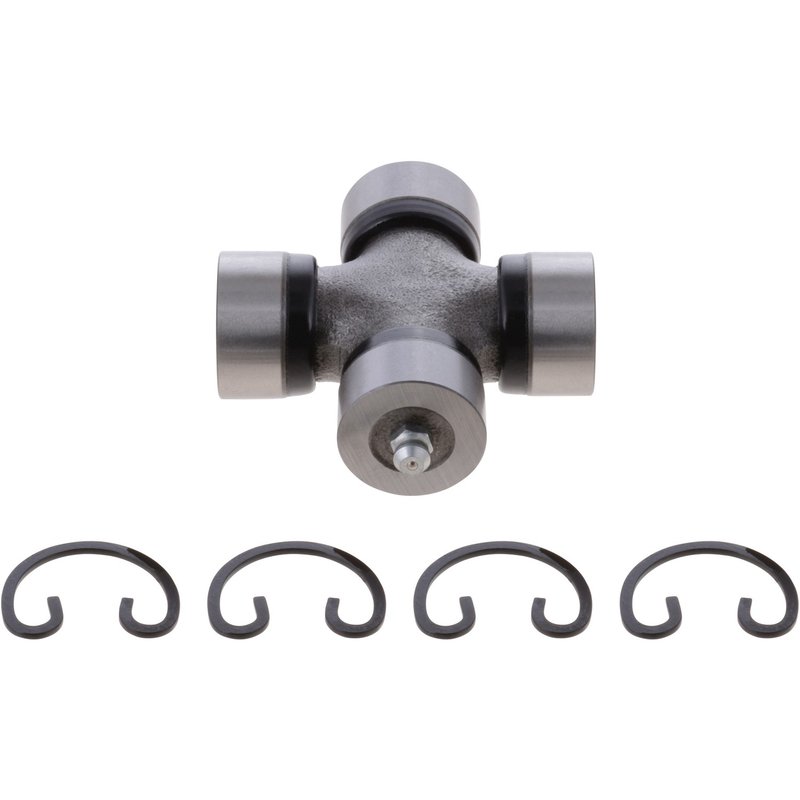

The Dana Spicer 5-3241X is an OSR-style universal joint built for rear driveshaft service on select Saturn Vue, Chevrolet Equinox, and Pontiac Torrent applications. It uses steel construction, greaseable serviceability, and external snap rings to support driveline repair on vehicles with a 2-piece rear driveshaft.

Key Features

• Part number: 5-3241X
• Brand: Dana Spicer FSGR
• Universal joint for driveline and axle service
• OSR style with round bearing caps
• Bearing cap diameter: 1.063 in. / 27 mm
• Length A and Length B: 2.646 in. / 67.2 mm
• Steel construction for driveline durability
• Greaseable design with one lube fitting in the bearing
• External snap ring included
• OEM series: Saturn

Product Details

Dana Spicer designs, engineers, tests, and manufactures driveline components as a matched system, and this universal joint reflects that approach with OE-style dimensions and service features. The 5-3241X is specified for rear driveshaft positions on 2-piece driveshaft setups, including the support bearing and rear axle locations. If you are replacing a worn universal joint on a Saturn Vue rear driveshaft, Chevrolet Equinox rear driveshaft, or Pontiac Torrent rear driveshaft, this part number provides the correct OSR-style fitment for those listed applications. This part cross-references SKF UJ409 for the same application.

Vehicle Fitment

• Fits 2002-2007 Saturn Vue, rear driveshaft at support bearing; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.
• Fits 2002-2007 Saturn Vue, rear driveshaft at rear axle; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.
• Fits 2005-2006 Chevrolet Equinox, rear driveshaft at support bearing; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.
• Fits 2005-2006 Chevrolet Equinox, rear driveshaft at rear axle; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.
• Fits 2006 Pontiac Torrent, rear driveshaft at support bearing; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.
• Fits 2006 Pontiac Torrent, rear driveshaft at rear axle; 2-piece driveshaft; greaseable; fits vehicles with 2-piece rear drive shaft; FSGR.

Common Repair Uses

• Replacing a worn or noisy rear driveshaft universal joint
• Addressing driveline vibration in a 2-piece rear driveshaft
• Restoring smooth rotation at the support bearing or rear axle position
• Repairing greaseable joint wear on Saturn Vue, Chevrolet Equinox, or Pontiac Torrent driveline assemblies
• Correcting looseness, clunking, or binding in the rear driveline

Installation Notes

Verify bearing cap diameter, overall length, and snap ring style before installation. This OSR-style joint uses external snap rings and a grease fitting located in the bearing, so the driveline should be cleaned and inspected for wear at the yokes, support bearing area, and mating surfaces before assembly. Confirm the vehicle has the listed 2-piece rear driveshaft configuration and match the rear driveshaft position exactly to the application.

Quality Assurance

Genuine Spicer components are built using Dana engineering, testing, and manufacturing processes to maintain OE-level dimensional accuracy and driveline performance for the listed applications.
