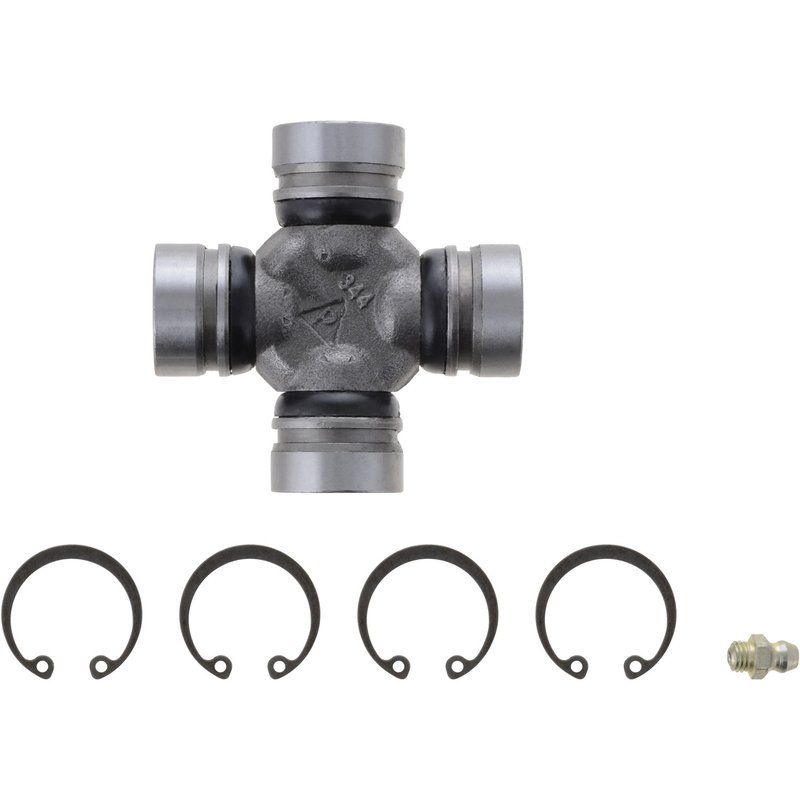

Dana Spicer 5-3257X Universal Joint - Rear Driveshaft at Rear Axle or Rear Driveshaft at Transmission

Reliable Universal Joint for Suzuki Driveline Systems

The Dana Spicer FSGR Universal Joint 5-3257X is engineered to provide dependable performance for Suzuki driveline applications. Designed specifically for Suzuki Grand Vitara, Vitara, and XL-7 models, this universal joint ensures smooth power transfer and durability under demanding conditions.

• Compatible with Suzuki Grand Vitara, Vitara, and XL-7 models
• Greaseable design with one lube fitting for easy maintenance
• Steel construction for strength and longevity
• Round bearing caps with 1.024 inch (26 mm) diameter
• External snap ring included for secure fitment
• Length A and B both 2.756 inches (70 mm) for precise fit

Detailed Product Features and Specifications

The Dana Spicer FSGR 5-3257X universal joint features round bearing caps measuring 1.024 inches (26 mm) in diameter, designed in the OSR (Outside Snap Ring) style. Both bearing caps have external snap rings included, ensuring a secure and stable installation. The universal joint is greaseable, equipped with a single grease fitting located in one bearing cap to facilitate routine lubrication and extend service life. Constructed from durable steel, this part is built to withstand the stresses of driveline torque and rotational forces. The overall length of the joint is 2.756 inches (70 mm) on both sides, matching OEM specifications for Suzuki vehicles.

About the Dana Spicer FSGR Product Line

The FSGR line from Dana Spicer focuses on driveline components designed to meet or exceed OEM standards for reliability and fitment. This product line emphasizes precision manufacturing and compatibility with specific vehicle models, such as Suzuki's Grand Vitara, Vitara, and XL-7. The 5-3257X universal joint is part of this series, offering a balance of durability and serviceability with its greaseable design and secure snap ring retention.

Common Applications and Problem Resolution

• Replacement of worn or damaged universal joints in Suzuki Grand Vitara, Vitara, and XL-7 drive shafts
• Elimination of driveline vibrations caused by failing U-joints
• Restoration of smooth rotational movement in the driveline assembly
• Prevention of premature wear through regular greasing enabled by the grease fitting
• Secure fitment with external snap rings to avoid joint loosening during operation

Installation Notes and Tips

Ensure the universal joint is compatible with your Suzuki model by verifying part number 5-3257X. Use appropriate tools to remove the old U-joint and install the new one, taking care to seat the bearing caps fully and secure the external snap rings properly. Regularly lubricate the joint through the grease fitting to maintain optimal performance and extend service life. Avoid forcing the joint during installation to prevent damage to the bearing caps or snap rings.

Quality Assurance and Warranty Information

Dana Spicer manufactures the FSGR 5-3257X universal joint to meet stringent quality standards, ensuring reliable performance in Suzuki driveline systems. The steel construction and precise engineering contribute to the part's durability. While specific warranty details are not provided here, Dana Spicer products typically come with manufacturer-backed quality guarantees. Consult product documentation or the manufacturer for exact warranty terms.
