Dana Spicer

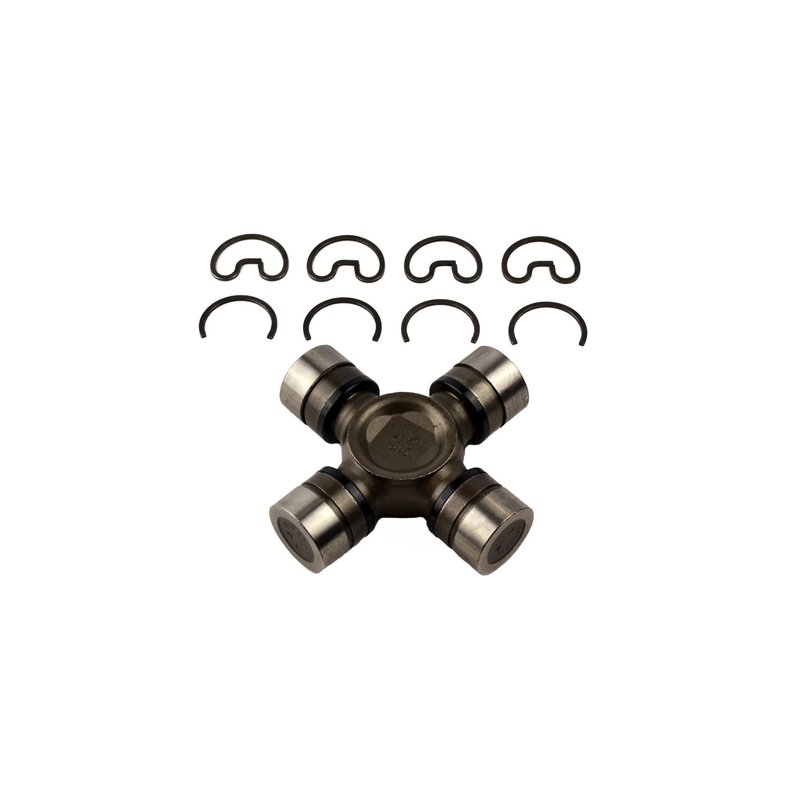

FSGRDana Spicer 5004989 Universal Joint - Rear Driveshaft at Rear Axle, Rear Driveshaft at Support Bearing or Rear Driveshaft at Transmission
| Brand | Dana Spicer 5004989 |
|---|---|
| Position | Rear Driveshaft at Transmission, Rear Driveshaft at Rear Axle, and Rear Driveshaft at Support Bearing |
| Bearing Cap Diameter (1) | 1.188 |
| Bearing Cap Diameter (2) | 1.188 |
| Bearing Cap Diameter A (mm) | 30.2 |
| Bearing Cap Diameter B (mm) | 30.2 |
| Bearing Cap Type | Round |
| Bearing Cap Type A | Isr |
| Bearing Cap Type B | Isr |
| Greaseable | N |
| Hardware Included | N |
| Length A (In) | 3.125 |
| Length A (mm) | 79.4 |
| Length B (In) | 3.125 |
| Length B (mm) | 79.4 |
| Material | Steel |
| OEM Mfg | Cleveland |
| OEM Series | O55 |
| Snap Ring Included | Y |
| Snap Ring Type | Internal |
| SR(1)Brng Cap to Brng Cap(OSR) | 3.125 |
| SR(2)Brng Cap to Brng Cap(OSR) | 4.188 |
| Type | Osr/isr style |
| Product line | FSGR |
| Fits | Chevrolet and GMC · 80 vehicles |
Steel construction. Built for dependable strength in driveline service.
Internal snap rings. Secure retention helps keep the joint assembled.
OSR/ISR style. A versatile universal joint design for a wide range of applications.
Cross-references MOOG Driveline Products 427, SKF UJ427 and Spicer 5004989 for the same application. See all 19.
$33.43Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Universal Joint options
Dana Spicer FSGR Universal Joint
The Dana Spicer FSGR universal joint, part number 5004989, is built for driveline service where precise fit and durable construction matter. It uses a steel body with 1.188-inch bearing caps and internal snap rings for a secure installation in the correct yoke application.
Designed for rear driveshaft service on Chevrolet P30 and GMC P3500 platforms, this Spicer universal joint is a non-greasable, OSR/ISR style replacement for select two-piece and three-piece driveshaft setups. If you are servicing a Chevrolet P30 rear driveshaft at transmission or a GMC P3500 rear axle, support bearing, or transmission location, 5004989 is the direct-fit style to verify against your original joint dimensions.
Key Features
- Part number 5004989 from Dana Spicer FSGR
- Universal joint for driveline and axle service
- Steel construction for strength in demanding applications
- 1.188 in. / 30.2 mm bearing cap diameter on both sides
- Internal snap ring design included
- Non-greasable design
- OSR/ISR style with round bearing caps
- OEM series reference: Cleveland O55
Product Details
Spicer universal joints are engineered for longer service life across light vehicle, commercial, and off-highway use. This FSGR unit follows the OEM-style dimensions needed for driveline repair, including 3.125-inch cap-to-cap lengths and matching 79.4 mm measurements on both sides. The bearing cap type is round, with ISR cap ends and internal snap ring retention for the specified application. Cross-reference part numbers include SKF UJ427 and MOOG Driveline Products 427 for the same application.
What It Helps Fix
- Driveline vibration caused by worn universal joint bearings
- Clunking or driveline lash during acceleration and deceleration
- Needle bearing wear in the rear driveshaft joint
- Loose or damaged joint retention at the yoke
- Service replacement for non-greasable OEM-style driveline joints
Installation Notes
Verify bearing cap diameter, cap style, snap ring type, and overall length before installation. This joint uses internal snap rings and is not greaseable, so it should be matched to the original non-greasable configuration. Confirm fitment for the exact position on the vehicle: Fits 1985-1990 Chevrolet P30, Rear Driveshaft at Transmission; Fits 1980-1981 Chevrolet P30, Rear Driveshaft at Transmission; Fits 1979-1990 GMC P3500, Rear Driveshaft at Transmission; Fits 1989-1990 GMC P3500, Rear Driveshaft at Support Bearing; Fits 1989-1990 GMC P3500, Rear Driveshaft at Rear Axle; Fits 1982-1983 Chevrolet P30, Rear Driveshaft at Rear Axle; Fits 1980-1983 Chevrolet P30, Rear Driveshaft at Rear Axle; Fits 1982-1983 GMC P3500, Rear Driveshaft at Rear Axle; Fits 1982 Chevrolet P30, Rear Driveshaft at Rear Axle.
Quality Assurance
Dana Spicer is a recognized OE supplier name in driveline components, and this universal joint is built to the dimensional and material standards expected for service replacement on Chevrolet P30 and GMC P3500 applications. Part number 5004989 is manufactured for consistent fitment in the specified driveline positions.
This part fits 80 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Body Type | Transmission | Liters | Cylinders | Wheel Base | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 1990 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 4.3L | V6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 4.3L | V6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 3.9L | L4 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 3.9L | L4 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1990 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1990 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Support Bearing | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1990 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Rear Axle | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1989 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1989 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Support Bearing | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1989 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Rear Axle | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1988 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1987 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1986 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | — | — | 178.0" | Rear Driveshaft at Transmission | Except 16,000lb GVW; Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 7.4L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 4.8L | L6 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | Chevrolet | P30 | — | Automatic | 5.7L | V8 | 158.5" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1985 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1984 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1983 | Chevrolet | P30 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Non-Greasable; with 3 Piece Drive Shaft; FSGR |
| 1983 | Chevrolet | P30 | Standard Cargo Van | — | — | — | — | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1983 | Chevrolet | P30 | Stripped Chassis | — | — | — | — | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1983 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1983 | GMC | P3500 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Non-Greasable; with 3 Piece Drive Shaft; FSGR |
| 1982 | Chevrolet | P30 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Non-Greasable; with 3 Piece Drive Shaft; FSGR |
| 1982 | Chevrolet | P30 | Standard Cargo Van | — | — | — | — | Rear Driveshaft at Rear Axle | Non-Greasable; with 2 Piece Drive Shaft; FSGR |
| 1982 | Chevrolet | P30 | Stripped Chassis | — | — | — | — | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1982 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1982 | GMC | P3500 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Non-Greasable; with 3 Piece Drive Shaft; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 125.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 133.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 157.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 158.5" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | Chevrolet | P30 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1981 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 157.0" | Rear Driveshaft at Transmission | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 125.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 133.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 157.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 158.5" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | Chevrolet | P30 | — | — | — | — | 178.0" | Rear Driveshaft at Rear Axle | Compatible with 2 Piece Driveshaft, non-greasable, fits 2 Piece Rear Drive Shaft.; FSGR |
| 1980 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| 1979 | GMC | P3500 | — | — | — | — | — | Rear Driveshaft at Transmission | Non-Greasable; with 2 Piece Drive Shaft; with Yoke O.D. 3.125in; FSGR |
| No rows match your filter. | |||||||||
Directly replaces or cross-references 19 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Driveline Products — 427SKF — UJ427Spicer — 5004989SVL — 15-1206X2-66005 1206X5-1206X45U220551206X219193R911662204C91CP141ND51206XD5004989DS5004989E51206XE5004989SP 5004989HPZJU51206X
