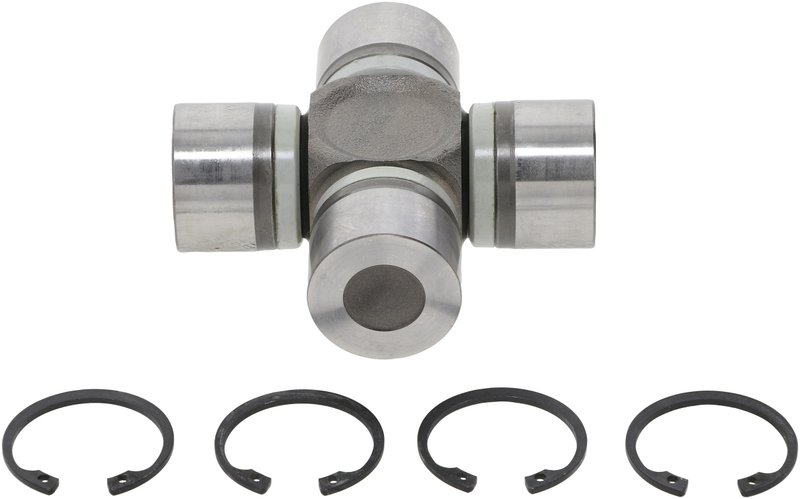

Dana Spicer 7687200600160 Universal Joint
OE Quality 60-Day Returns
Dana Spicer
 FSGR

Dana Spicer 7687200600160 Universal Joint

Brand Dana Spicer 7687200600160
Bearing Cap Diameter (1) 1.189
Bearing Cap Diameter (2) 1.189
Bearing Cap Diameter A (mm) 30.200
Bearing Cap Diameter B (mm) 30.200
Bearing Cap Type Round
Bearing Cap Type A Osr
Bearing Cap Type B Osr
Greaseable N
Length A (In) 3.228
Length A (mm) 82.000
Length B (In) 3.228
Length B (mm) 82.000
Material Steel
OEM Series C2020
Snap Ring Included Y
Snap Ring Type Outside
SR(1)Brng Cap to Brng Cap(OSR) 3.228
SR(2)Brng Cap to Brng Cap(OSR) 3.228
Type Osr style
Product line FSGR
Fits Dodge and Mercedes-Benz · 36 vehicles

Genuine Spicer part. Dana engineering, testing, and manufacturing deliver dependable performance.

Steel construction. Built for strength in demanding driveline applications.

OSR style. Round bearing caps and outside snap rings simplify service.

$152.39Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $152.39
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Universal Joint options

Spicer OSR Universal Joint for Sprinter Drive Shafts

The Dana Spicer FSGR 7687200600160 is a steel OSR-style universal joint built for C2020 Series Dana aftermarket drive shafts. It is specified for select Mercedes-Benz Sprinter 2500 and Sprinter 3500 applications, including non-greasable setups that use an outside snap ring design.

Demand genuine Spicer components when servicing the driveline. Dana’s engineering, testing, and manufacturing processes are aligned to deliver consistent fit and performance for drive shaft service on Mercedes-Benz Sprinter and Dodge Sprinter platforms.

Key Features

  • Part number: 7687200600160
  • Brand: Dana Spicer FSGR
  • Universal joint, OSR style
  • OEM series: C2020
  • Steel construction
  • Bearing cap diameter: 1.189 in. / 30.200 mm
  • Length A and Length B: 3.228 in. / 82.000 mm
  • Round bearing caps with OSR cap type on both sides
  • Outside snap ring included
  • Non-greasable design

Detailed Description

The Dana Spicer 7687200600160 universal joint is engineered for drive shaft service where the vehicle uses a C2020 Series Dana aftermarket drive shaft and an OSR-style, non-greasable joint. Its 1.189-inch bearing caps, 3.228-inch cap-to-cap length, and steel body support precise driveline fitment in the specified Sprinter applications. This part number 7687200600160 is a direct service option for owners and technicians working on Mercedes-Benz Sprinter 2500, Mercedes-Benz Sprinter 3500, Dodge Sprinter 2500, and Dodge Sprinter 3500 driveline repairs.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Driveline vibration caused by worn universal joint bearings
  • Clunking or driveline lash during acceleration and deceleration
  • Need for service on a non-greasable OSR-style joint
  • Drive shaft noise from looseness at the bearing caps
  • Replacement of a worn joint in C2020 Series Dana aftermarket drive shafts

Installation Notes and Tips

Verify the existing joint style before ordering, since fitment excludes staked-type U-joints. Confirm the vehicle uses a non-greasable C2020 Series Dana aftermarket drive shaft and match the bearing cap diameter, cap-to-cap length, and outside snap ring configuration before installation. Fits 2010-2018 Mercedes-Benz Sprinter 2500, N/A, except staked type U-joint; non-greasable; with C2020 Series Dana aftermarket drive shaft; FSGR. Fits 2010-2014 Mercedes-Benz Sprinter 3500, N/A, except staked type U-joint; non-greasable; with C2020 Series Dana aftermarket drive shaft; FSGR. Fits 2003-2009 Dodge Sprinter 2500, N/A, except staked type U-joint; non-greasable; with C2020 Series Dana aftermarket drive shaft; FSGR. Fits 2003-2009 Dodge Sprinter 3500, N/A, except staked type U-joint; non-greasable; with C2020 Series Dana aftermarket drive shaft; FSGR.

Quality Assurance

Built by Dana Spicer using controlled design, engineering, testing, and manufacturing processes to support consistent driveline service performance. Confirm all fitment details against the vehicle and drive shaft configuration before installation.

Related reading

This part fits 36 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelNotes
2018Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2017Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2016Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2015Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2014Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2014Mercedes-BenzSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2013Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2013Mercedes-BenzSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2012Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2012Mercedes-BenzSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2011Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2011Mercedes-BenzSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2010Mercedes-BenzSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2010Mercedes-BenzSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2009DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2009DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2008DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2008DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2007DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2007DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2006DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2006DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2006FreightlinerSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2006FreightlinerSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2005DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2005DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2005FreightlinerSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2005FreightlinerSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2004DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2004DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2004FreightlinerSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2004FreightlinerSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2003DodgeSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2003DodgeSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2003FreightlinerSprinter 2500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
2003FreightlinerSprinter 3500Except Staked Type U-Joint; Non-Greasable; with C2020 Series Dana Aftermarket Drive Shaft; FSGR
