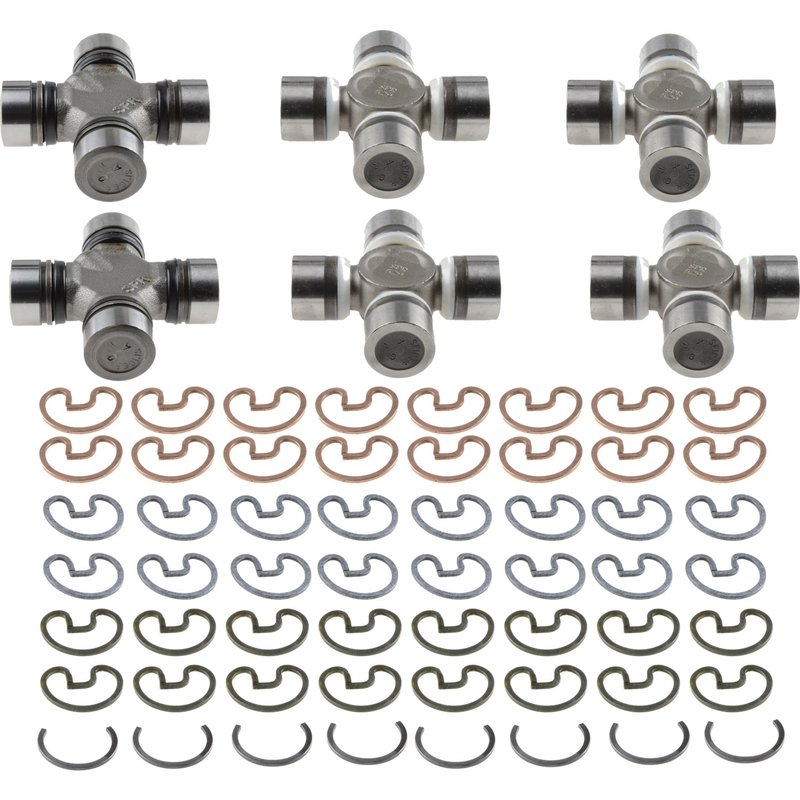

Dana Spicer SPL1026JK Universal Joint

Spicer Life Series U-Joint for Jeep Driveshafts

The Dana Spicer HGVF SPL1026JK is a Spicer Life Series universal joint built for Jeep driveline service where strength, friction control, and heat resistance matter. Cold-forged steel construction supports dependable operation in demanding drive shaft applications, including classic Jeep Wrangler, Cherokee, CJ7, and CJ5 fitments.

For buyers searching for a Jeep Wrangler U-joint, Jeep Cherokee driveshaft universal joint, or a Dana Spicer SPL1026JK replacement, this part is built around the Spicer Life Series (SPL) design used in performance-focused driveline service.

Key Features

• Cold-forged steel construction for driveline strength and durability
• Spicer Life Series (SPL) design for reduced friction and improved temperature resistance
• Round bearing cap type
• OSR/ISR style universal joint
• External and internal snap rings included
• Non-greaseable design for sealed service
• OEM series reference: 1310WJ, 1310/SPL22

Detailed Description

The Dana Spicer SPL1026JK universal joint is engineered for drive shaft service in Jeep applications that use the Spicer Life Series fitment profile. Its steel construction and cold-forged manufacturing help maintain joint integrity under driveline load, while the SPL design focuses on lower friction and better resistance to elevated operating temperatures. This makes it a practical choice for restoring smooth power transfer in older Jeep driveline systems.

Compatible With 1987-1995 Jeep Wrangler, N/A; 1984-1993 Jeep Cherokee, N/A; 1976-1986 Jeep CJ7, N/A; and 1968-1983 Jeep CJ5, N/A. The SPL1026JK part number is also a useful reference when matching the correct Spicer Life Series U-joint for these Jeep drive shaft applications.

This part cross-references no additional part numbers listed for the same application.

What It Helps Solve

• Driveline vibration caused by worn universal joint bearings
• Clunking or driveline lash during acceleration and deceleration
• Need for a replacement U-joint in Jeep Wrangler, Cherokee, CJ7, or CJ5 drive shafts
• Heat-related wear in demanding driveline service
• Loss of smooth torque transfer through the driveshaft

Installation Notes and Tips

Verify the existing joint style, snap ring configuration, and OEM series before installation. This SPL1026JK uses external and internal snap rings and a round bearing cap design, so the driveshaft yoke and retaining groove style must match. Confirm the vehicle’s driveline configuration against the listed fitment notes, including 1 Piece Driveshaft and without CV Front Driveshaft applications where specified.

For best results, inspect the driveshaft yokes for wear, clean the retaining surfaces, and check for binding after installation. Proper fitment is especially important on Jeep Wrangler and Jeep Cherokee driveline repairs where the original shaft configuration varies by model and year.

Quality Assurance

Dana Spicer is a recognized OE supplier in driveline components, and the Spicer Life Series line is built to meet the demands of service replacement in performance-oriented applications. The SPL1026JK follows the Spicer OEM series references 1310WJ and 1310/SPL22 for accurate application matching.
