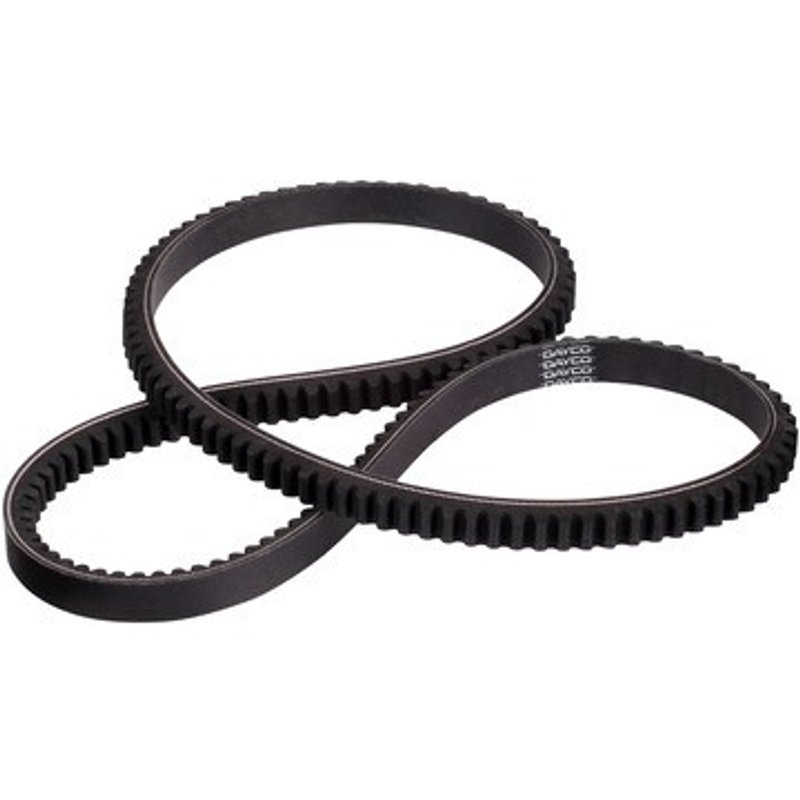

Dayco 22463 Accessory Drive Belt
OE Quality 60-Day Returns
Dayco

Dayco 22463 Accessory Drive Belt

Brand Dayco 22463
Position Fan and Alternator, Water Pump and Alternator, Main Drive, Water Pump and Power Steering, Alternator, Water Pump, and Air Conditioning
Material Synthetic rubber compound
Top Width .69
Color Black
Effective Length 1174.75
Effective Length 46.25
Outside Circumference 1191.01
Outside Circumference 46.89
Angle 38
Banded Belt N
Belt Construction Double cog
Maximum Operating Temperature 175
Maximum Operating Temperature 79.4
Minimum Operating Temperature -35
Minimum Operating Temperature -37.2
Standards Sae j636, sae j637
Fits —

Double-cog construction. Helps the accessory drive belt flex smoothly and run efficiently.

Synthetic rubber compound. Built for dependable belt performance in demanding conditions.

SAE J636, J637. Meets recognized standards for accessory drive belt quality.

Cross-references ACDelco T22461, CARQUEST TR22461 and Cummins 178445 for the same application. See all 49.

$28.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $28.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Accessory Drive Belt options

Dayco 22463 Accessory Drive Belt Overview

The Dayco 22463 accessory drive belt is built for accessory drive systems that require a 0.69 in top width, a 38-degree angle, and a double cog construction. Made from a synthetic rubber compound with a black finish, it is engineered for stable operation across a wide temperature range in demanding engine bay conditions.

Compatible With Ford truck and car applications, this belt is also cross-referenced for several OE and aftermarket part numbers used in the same application family. If you are replacing a worn accessory drive belt on a Ford, Nissan, Mazda, or similar vehicle platform, Dayco 22463 is a direct reference point for the correct size and construction.

Key Features

  • Part number: 22463
  • Synthetic rubber compound construction for accessory drive service
  • Double cog belt design for flexibility in belt routing
  • 0.69 in top width for the specified drive system
  • Effective length: 46.25 in
  • Outside circumference: 46.89 in
  • 38-degree belt angle
  • Operating temperature range: -35 to 175 degrees
  • Meets SAE J636 and SAE J637 standards

Detailed Description

Dayco 22463 is an accessory drive belt intended for engine accessory systems that rely on precise belt length, width, and angle. The double cog construction helps the belt conform to pulley paths, while the synthetic rubber compound supports consistent performance in hot and cold operating environments. This specification set is important when sourcing a replacement belt for Ford, Nissan, Mazda, and other interchange-listed applications.

This part cross-references Gates 15A1170 and NAPA 25-22461 for the same application. When selecting a replacement, verify the belt dimensions against the original belt or vehicle service information to confirm the correct accessory drive fit.

What This Belt Helps Address

  • Squealing or slipping caused by a worn accessory drive belt
  • Cracking, glazing, or edge wear on the existing belt
  • Loss of accessory drive performance from incorrect belt length
  • Fitment issues when replacing an OE-style belt with the wrong profile
  • Noise from a belt that no longer tracks properly on the pulleys

Installation Notes and Tips

Before installation, compare the old belt and the replacement belt dimensions, including effective length, outside circumference, top width, and angle. Inspect pulleys, tensioners, and idlers for wear before installing Dayco 22463, since damaged components can shorten belt life and affect tracking. Confirm the routing path matches the vehicle service diagram for the specific Ford, Nissan, Mazda, or other listed application.

Quality Assurance

Dayco manufactures accessory drive components to meet SAE J636 and SAE J637 standards, supporting consistent dimensional and material specifications for replacement service.

Related reading

This part fits 0 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
Directly replaces or cross-references 49 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — T22461CARQUEST — TR22461Cummins — 178445Cummins — 178593Cummins — 3040360Datsun/Nissan — 11720-0T001Ford — C4TS-8620-EFord — C7TS-8620-EFord — D2HA-8620-CAFord — E0HS-8A615-EAFord — E4HT-8A615-HAFord — E4PZ-8620-EGates — 15A1170Gates — 15A1180Gates — 468Gates — 518TGates — TR22461Goodyear — 22470Hino — 9001-45286AIsuzu — 2-94237-006-0Isuzu — 8-94152-812-0Isuzu — 8-94399-198-0Isuzu — 113671-2161Isuzu — 113671-4641John Deere — T23505Komatsu — 04120-01724Komatsu — 04120-31746Mazda — V101-18-38199Mitsubishi — ME018626Mitsubishi — ME900712Mitsuboshi — RECMF-8450Mopar — BH134Mopar — BH135Motorcraft — JE-465NAPA — 25-11700NAPA — 25-22461Navistar — 113671-4050Navistar — 214533-R1Navistar — 214533-R2Navistar — 455992-R1Optibelt — 17.5X1170Pirelli — 22-472Uniroyal — 21470White — 02-7007310White — 02-7015557White — 33-0063649White — 1600234White — V1090872White — V1091028
