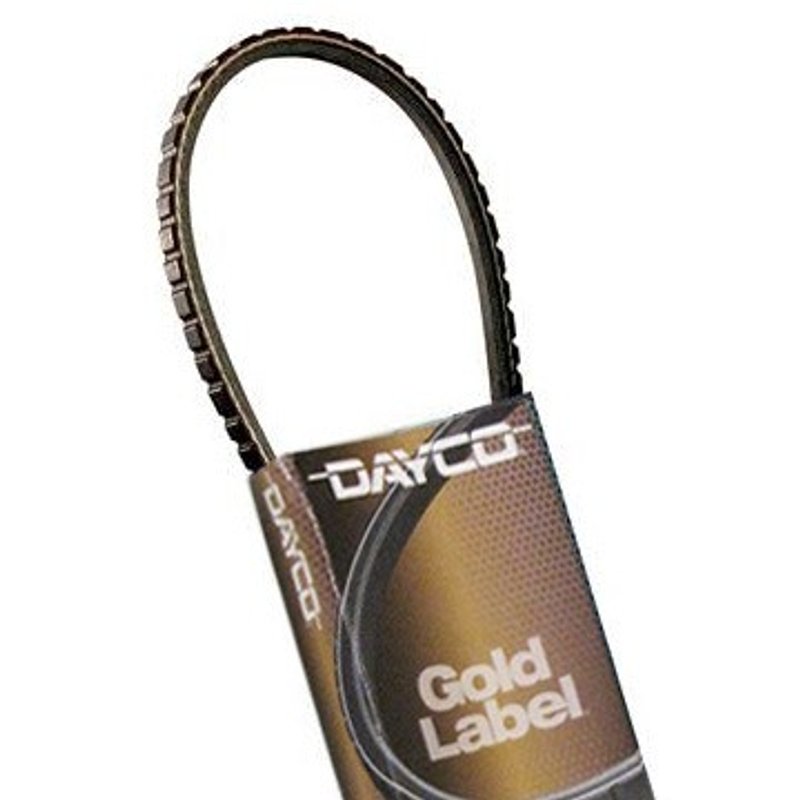

Dayco 22505 Accessory Drive Belt - Air Conditioning, Fan or Fan and Generator

Dayco 22505 Accessory Drive Belt Overview

The Dayco 22505 accessory drive belt is a black, double-cog belt made from a synthetic rubber compound for accessory drive applications. With a 0.69-inch top width, 50.50-inch effective length, and 51.14-inch outside circumference, it is built to match the dimensional requirements of specific OE-style belt drives.

Compatible With select Ford, Freightliner, Cummins, and John Deere applications, this belt is specified to SAE J636 and SAE J637 standards. The Dayco 22505 is a direct-fit accessory drive belt choice for buyers searching for Dayco 22505 belt replacement, 50.50-inch effective length belt, or double cog accessory drive belt applications.

Key Features

• Synthetic rubber compound construction for accessory drive service
• Double-cog profile for flexible belt routing
• 0.69-inch top width for specified pulley systems
• 50.50-inch effective length and 51.14-inch outside circumference
• Black finish
• Built to SAE J636 and SAE J637 standards
• Operating temperature range: -35°F to 175°F

Detailed Product Description

The Dayco 22505 accessory drive belt is engineered for belt-driven engine accessory systems that require the listed dimensions and profile. Its double-cog construction helps the belt conform around pulleys in compact routing layouts, while the synthetic rubber compound supports consistent operation across a wide temperature range. For shoppers comparing Dayco 22505 against OE and aftermarket references, this belt cross-references Gates 15A1285 and ACDelco T22508 for the same application.

Vehicle search terms commonly associated with this part include Ford accessory drive belt replacement, Freightliner belt service, and John Deere drive belt applications. When matching by size, confirm the 50.50-inch effective length, 0.69-inch top width, and 38-degree angle before installation.

What This Belt Helps Address

• Squealing or slipping accessory drive belt noise
• Cracking, glazing, or visible wear on the existing belt
• Loss of proper drive to alternator, water pump, or other belt-driven accessories
• Incorrect belt length or profile during replacement service
• Temperature-related belt performance issues in hot or cold conditions

Installation Notes and Tips

Verify pulley alignment, belt routing, and tensioner condition before installing the Dayco 22505. Confirm the belt dimensions against the original part number and measure the system if the previous belt is missing or unreadable. This part is commonly searched for Ford, Freightliner, and Cummins belt replacement needs, so matching the application by size and OE reference is important.

Use the listed effective length, outside circumference, and angle to confirm fitment before final assembly. Proper tension and clean pulley surfaces help the belt seat correctly and reduce premature wear.

Quality Assurance

Dayco manufactures accessory drive components to published dimensional and performance standards, and this belt is specified to SAE J636 and SAE J637. The part number 22505 is identified for OE-style replacement use in the listed applications.
