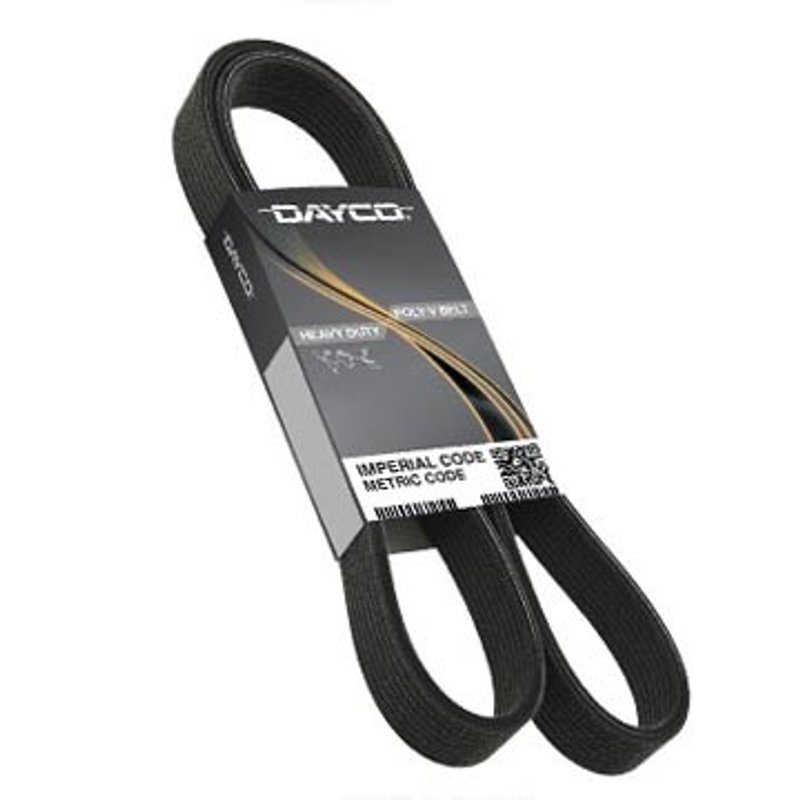

Dayco 5100510 Serpentine Belt - Fan or Fan and Water Pump

Dayco 5100510 Serpentine Belt Overview

The Dayco 5100510 serpentine belt is a K-section accessory drive belt built for consistent power transfer in demanding engine accessory systems. With EPDM construction and aramid reinforcement, it delivers the strength and heat resistance needed for reliable operation in applications such as Ford F1HT-8620-VA and F1HZ-8620-H fitments.

Key Features

• EPDM rubber construction with aramid reinforcement for added tensile strength
• 10-rib, straight-rib profile for stable belt tracking
• Black finish with a 1.38-inch top width
• Effective length: 51.00 in. (1295.40 mm)
• Outside circumference: 51.63 in. (1311.41 mm)
• Operating temperature range: -45°F to 212°F
• Built to SAE J1459 and SAE J2432 standards

Detailed Description

Dayco 5100510 is a serpentine belt for accessory drive belt system components, engineered to maintain dependable drive performance across engine-driven accessories. The K-section profile and 10-rib layout support secure engagement on the pulley system, while EPDM material helps resist heat and wear in high-load service. This part cross-references ACDelco 10K510 and Gates K100510 for the same application. It is a direct-fit option for vehicles using the specified belt dimensions, including Ford F1HT-8620-VA and F1HZ-8620-H applications, and it is also referenced by Cummins and Motorcraft part numbers in related service catalogs.

Common Issues This Belt Can Address

• Squealing or chirping from a worn accessory drive belt
• Cracking, glazing, or rib wear on the belt surface
• Loss of accessory drive consistency from belt stretch or fatigue
• Reduced belt tracking caused by an aging or damaged serpentine belt
• Service replacement for Ford F1HT-8620-VA and F1HZ-8620-H belt applications

Installation Notes and Tips

Verify belt length, rib count, and cross section before installation. Inspect pulleys, tensioners, and idlers for wear or misalignment, since those conditions can shorten belt life. Confirm the routing matches the vehicle’s accessory drive layout before starting the engine. Fits Ford F1HT-8620-VA and F1HZ-8620-H applications where the specified 10-rib, 51-inch belt is required.

Quality Assurance

Dayco manufactures this belt to SAE J1459 and SAE J2432 standards, with EPDM and aramid reinforcement selected for durability in accessory drive service. The part number 5100510 is identified for OE-style replacement use in the listed applications.
