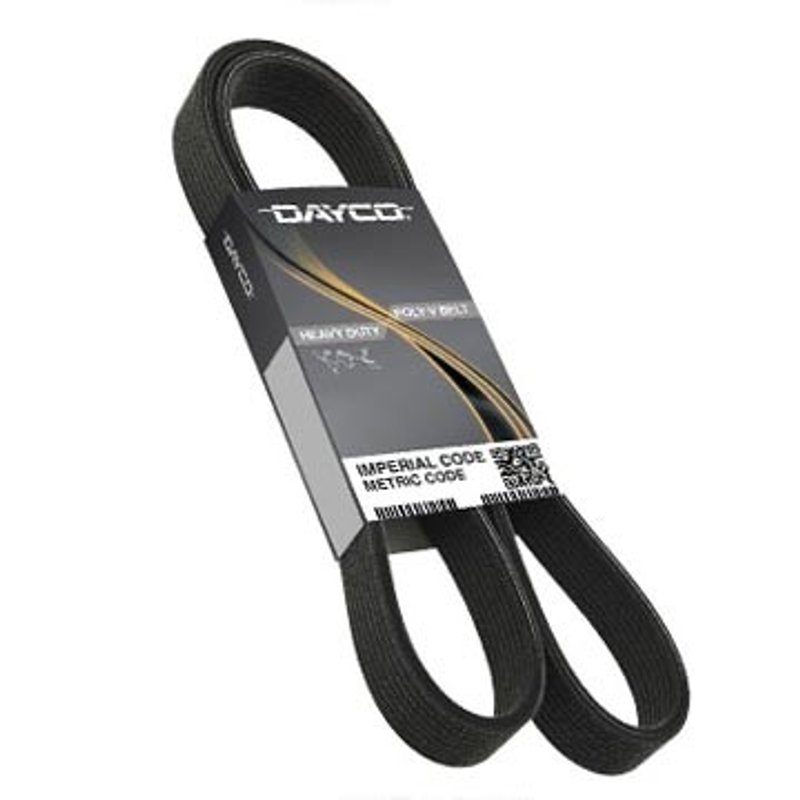

Dayco 5100540 Serpentine Belt - Fan

Durable Dayco Serpentine Belt for Reliable Engine Performance

The Dayco 5100540 serpentine belt is engineered to provide consistent power transmission for accessory drive systems. Constructed with EPDM and aramid reinforcement, this belt offers durability and resistance to wear under various operating conditions.

• Material: EPDM with aramid fiber reinforcement for enhanced strength
• Top Width: 1.38 inches for precise fitment
• Effective Length: Approximately 54 inches (1371.60 mm)
• Outside Circumference: 54.63 inches (1387.61 mm)
• Rib Quantity: 10 ribs with a straight rib profile
• Cross Section: K-section design for optimal belt engagement
• Operating Temperature Range: -45°C to 212°F (-42.7°C to 100°C)
• Complies with SAE J1459 and SAE J2432 standards

Technical Overview of Dayco 5100540 Serpentine Belt

This serpentine belt features a K-section cross section and 10 straight ribs, designed to maintain consistent contact with pulleys in accessory drive systems. The EPDM material combined with aramid reinforcement improves resistance to heat, ozone, and mechanical stress, extending belt life. The belt’s dimensions, including a top width of 1.38 inches and an effective length near 54 inches, ensure compatibility with specific vehicle applications requiring these measurements.

Compatible Vehicles and Common Applications

The Dayco 5100540 serpentine belt is suitable for use in various automotive makes and models that require a 10-rib K-section belt with these dimensions. It is commonly used in accessory drive systems to power components such as the alternator, power steering pump, water pump, and air conditioning compressor.

• Replaces worn or cracked serpentine belts causing squealing noises
• Addresses belt slippage affecting accessory performance
• Prevents overheating due to belt failure in cooling systems
• Eliminates vibration or misalignment issues in drive belts
• Restores proper tension and power transmission in accessory drives

Installation Notes and Tips

Ensure the correct belt routing according to the vehicle’s service manual before installation. Verify belt tension and alignment to prevent premature wear. Inspect pulleys and tensioners for damage or wear during replacement. The Dayco 5100540 belt should be installed on compatible vehicles requiring a 10-rib, 1.38-inch wide serpentine belt with the specified length.

Quality Assurance and Standards Compliance

Manufactured to meet SAE J1459 and SAE J2432 standards, the Dayco 5100540 serpentine belt adheres to industry requirements for durability and performance. The use of EPDM and aramid materials ensures resistance to heat and mechanical stress, supporting reliable operation within the specified temperature range. While no explicit warranty information is provided, Dayco products are generally recognized for consistent quality in automotive belt applications.
