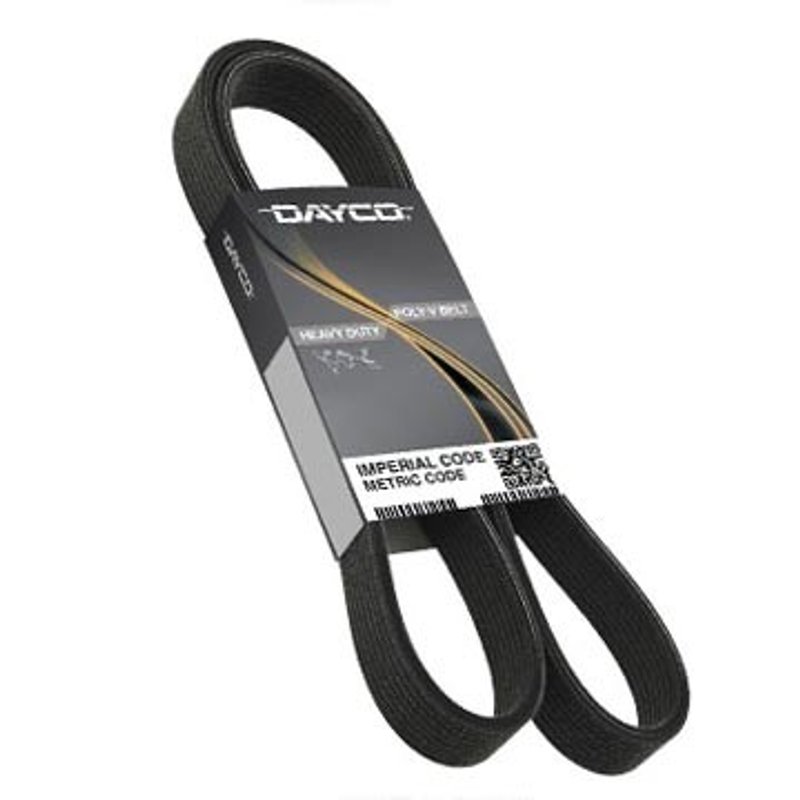

Dayco 5100770 Serpentine Belt - Fan and Alternator

Durable Dayco Serpentine Belt for Reliable Engine Performance

The Dayco 5100770 serpentine belt is engineered to provide consistent power transmission for accessory drive systems. Constructed with EPDM and aramid reinforcement, this belt offers durability and resistance to wear, suitable for various vehicle applications including popular makes and models requiring a 10-rib serpentine belt.

• Material: EPDM with aramid fiber reinforcement for enhanced strength
• Top Width: 1.38 inches ensuring proper fit and tension
• Effective Length: Approximately 77 inches (1955.80 mm) for precise compatibility
• Rib Quantity: 10 ribs with a straight rib profile for smooth operation
• Cross Section: K-section design for optimal belt engagement
• Operating Temperature Range: -45°C to 100°C (-49°F to 212°F) for reliable performance in varied climates
• Complies with SAE J1459 and SAE J2432 standards for quality and safety

Technical Overview of Dayco 5100770 Serpentine Belt

This serpentine belt features a black EPDM rubber compound reinforced with aramid fibers, which improves tensile strength and resistance to heat and abrasion. The 10-rib design with a straight rib profile ensures efficient power transfer to engine accessories such as the alternator, power steering pump, and air conditioning compressor. The K-section cross section maintains proper belt alignment and tension, reducing slippage and premature wear. With an outside circumference of approximately 77.63 inches, this belt fits specific vehicle models requiring these dimensions.

Compatible Vehicles and Common Applications

• Compatible with various domestic and import vehicles requiring a 10-rib serpentine belt with a 1.38-inch width
• Suitable for models that specify a belt with an effective length near 77 inches
• Used in accessory drive systems to address issues such as belt squealing, slipping, or cracking
• Ideal replacement for worn or damaged belts in vehicles experiencing accessory drive malfunctions

Installation Notes and Tips

Ensure the correct belt routing by consulting the vehicle’s service manual or belt routing diagram. Before installation, inspect pulleys and tensioners for wear or damage to prevent premature belt failure. Proper tension adjustment is critical; use a belt tension gauge or follow manufacturer specifications to achieve optimal performance. Avoid twisting or forcing the belt during installation to maintain its structural integrity.

Quality Assurance and Standards Compliance

The Dayco 5100770 serpentine belt meets SAE J1459 and SAE J2432 standards, ensuring it adheres to industry requirements for durability and performance. Manufactured with high-quality EPDM and aramid reinforcement, this belt is designed to withstand temperature extremes from -45°C to 100°C (-49°F to 212°F). While no specific warranty information is provided, Dayco products are generally recognized for consistent quality in automotive belt applications.
