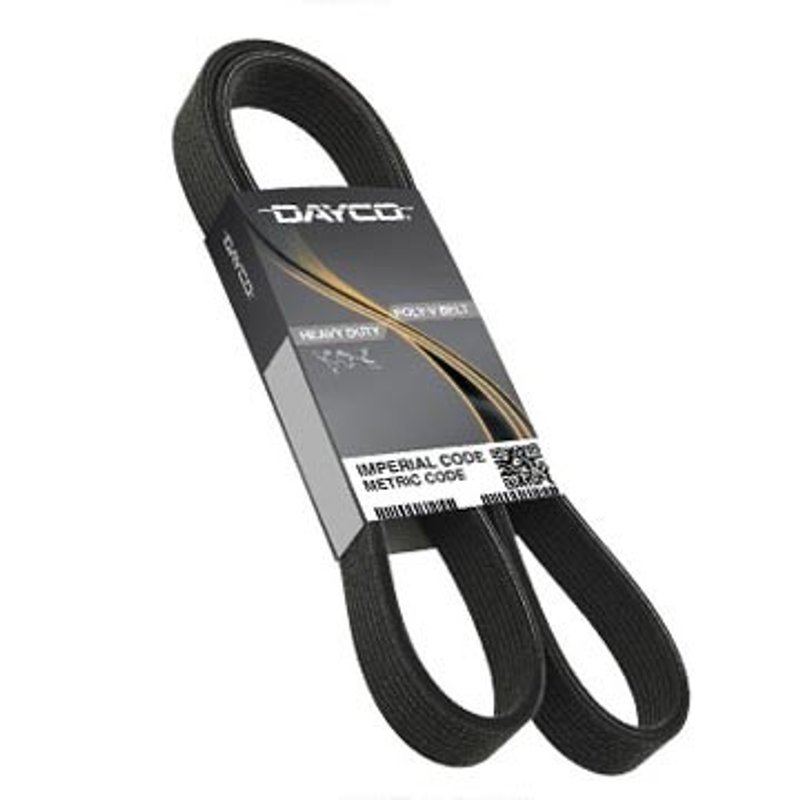

Dayco 5120603 Serpentine Belt - Alternator

Dayco 5120603 Serpentine Belt Overview

The Dayco 5120603 serpentine belt is a K-section accessory drive belt built for demanding engine accessory systems. It uses EPDM rubber with aramid reinforcement to support stable operation across a wide temperature range and consistent rib tracking under load.

Compatible With Cummins, General Motors, John Deere, and Komatsu applications, this belt is specified for heavy-duty and industrial accessory drive systems where correct rib profile and effective length matter. The Dayco 5120603 is a direct-fit serpentine belt for applications calling for a 12-rib, black, straight-rib design.

Key Features

• EPDM construction with aramid reinforcement for durability in accessory drive service
• 12-rib K-section profile for multi-groove pulley engagement
• Top width of 1.66 in. for proper belt tracking
• Effective length of 60.30 in. and outside circumference of 60.93 in.
• Operating temperature range from -45°F to 212°F
• Built to SAE J1459 and SAE J2432 standards
• Black straight-rib design for consistent pulley contact

Detailed Description

Dayco 5120603 is engineered as a serpentine belt for accessory drive belt system components, delivering the dimensions and rib geometry needed for proper belt routing and pulley engagement. The EPDM compound resists heat and wear, while aramid reinforcement adds strength for service in engines and equipment that place steady demand on the drive system. This part cross-references Cummins applications (e.g., 3072829, 3095676) for the same application.

Use the Dayco 5120603 when replacing a worn serpentine belt on Cummins, General Motors, John Deere, or Komatsu equipment that specifies this 12-rib K-section belt. It is also referenced by part number 5120603 for catalog and service matching.

What This Belt Helps Address

• Squealing or slipping caused by belt wear or glazing
• Cracking, fraying, or rib separation on the existing belt
• Loss of accessory drive consistency from incorrect belt length or profile
• Reduced pulley engagement from a worn 12-rib belt
• Service interruptions tied to accessory drive belt failure

Installation Notes and Tips

Verify rib count, top width, effective length, and outside circumference before installation. Confirm pulley alignment and inspect tensioner and idler condition at the same time, since worn components can shorten belt life. For fitment-based searches, this part is commonly referenced for Cummins, General Motors, John Deere, and Komatsu applications that call for the Dayco 5120603 serpentine belt.

Quality Assurance

This belt is manufactured to SAE J1459 and SAE J2432 standards, supporting consistent dimensional and material requirements for accessory drive service. The EPDM and aramid-reinforced construction is selected for temperature resistance and long-term belt stability in demanding operating conditions.
