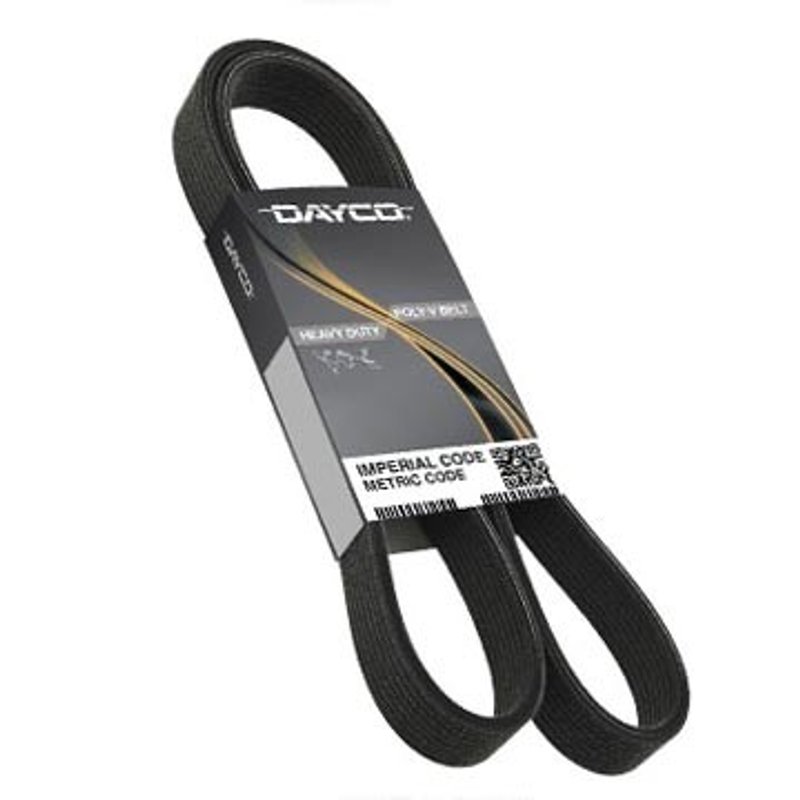

Dayco 5120646 Serpentine Belt - Air Conditioning and Alternator or Fan

Dayco 5120646 Serpentine Belt Overview

The Dayco 5120646 serpentine belt is a K-section accessory drive belt built with EPDM and aramid reinforcement for consistent belt tracking and durability. With 12 ribs, a black finish, and SAE J1459 and SAE J2432 compliance, it is a direct-fit option for vehicles that use a 64.57-inch effective length belt.

Key Features

• Part number: 5120646
• EPDM construction with aramid reinforcement for strength and wear resistance
• 12-rib, straight-rib profile for accessory drive applications
• Top width: 1.66 in.
• Effective length: 64.57 in. (1640.08 mm)
• Outside circumference: 65.13 in. (1654.31 mm)
• Operating temperature range: -45°F to 212°F
• Meets SAE J1459 and SAE J2432 standards

Detailed Description

Dayco 5120646 is a serpentine belt for accessory drive systems that require a 12-rib K-section belt with a 64.57-inch effective length. The EPDM rubber construction helps maintain flexibility across a wide temperature range, while aramid reinforcement adds tensile strength for demanding engine bay conditions. This belt is a practical choice for drivers searching for a Dayco serpentine belt 5120646 for compatible vehicle applications, including select Chevrolet Silverado and GMC Sierra fitments where this belt specification is required.

This part cross-references ACDelco K120645HD and Gates K120645HD for the same application.

What It Helps Address

• Squealing or chirping from a worn accessory drive belt
• Cracking, glazing, or rib wear on the existing serpentine belt
• Loss of proper drive to alternator, power steering, or other belt-driven accessories
• Belt tracking issues caused by an incorrect rib count or length
• Replacement needs for vehicles requiring a 12-rib, 64.57-inch serpentine belt

Installation Notes and Tips

Verify rib count, belt length, and cross-section before installation. Confirm the routing path against the vehicle’s belt diagram and inspect pulleys, tensioner operation, and accessory alignment before fitting the new belt. For fitment-based searches, this Dayco 5120646 serpentine belt is commonly referenced for compatible Chevrolet Silverado and GMC Sierra applications that call for this exact specification.

Quality Assurance

Built to SAE J1459 and SAE J2432 standards, this belt is engineered for accessory drive service in a wide operating temperature range. Dayco 5120646 is specified for vehicles that require a 12-rib K-section belt with EPDM and aramid reinforcement.
