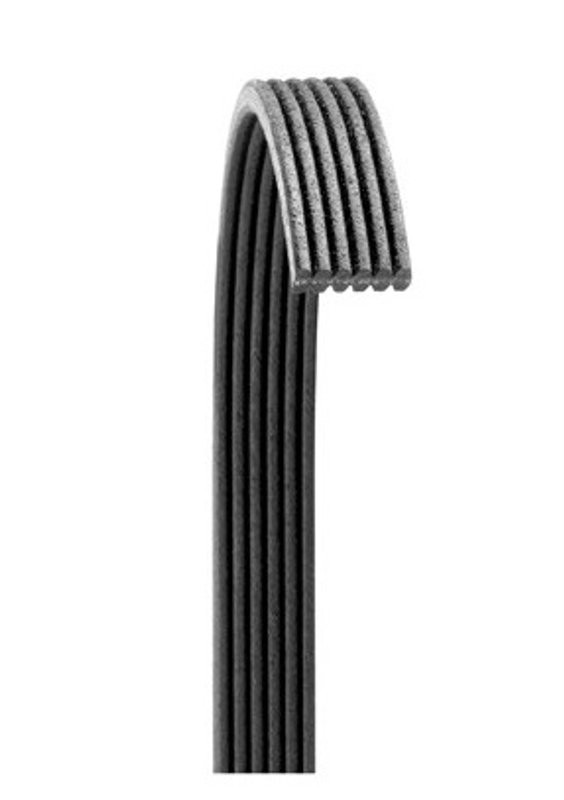

Dayco 6050565 Serpentine Belt - Water Pump To Alternator

Durable Serpentine Belt for Cadillac XLR

The Dayco 6050565 serpentine belt is engineered to meet the demanding requirements of the Cadillac XLR. Constructed with EPDM and aramid reinforcement, this belt offers reliable performance and longevity under various operating conditions.

• Material: EPDM with aramid reinforcement for enhanced durability
• Top Width: 0.68 inches
• Effective Length: 56.49 inches (1434.85 mm)
• Outside Circumference: 57.50 inches (1460.50 mm)
• Rib Quantity: 5 ribs with a straight rib, double-sided profile
• Cross Section: Double sided K-section design
• Operating Temperature Range: -45°C to 212°F (-42.7°C to 100°C)
• Meets SAE J1459 and SAE J2432 standards

Technical Overview of Dayco 6050565 Serpentine Belt

This serpentine belt is specifically designed for the accessory drive system of the Cadillac XLR, ensuring proper fit and function. The EPDM (ethylene propylene diene monomer) rubber compound combined with aramid fiber reinforcement provides resistance to heat, wear, and stretching. The 5-rib design with a double-sided K-section cross section ensures optimal grip and power transmission to engine components such as the alternator, power steering pump, and air conditioning compressor. The belt’s effective length and outside circumference are precisely engineered to maintain tension and reduce slippage during operation.

Compatible Applications and Common Issues Addressed

• Replacement for worn or cracked serpentine belts on Cadillac XLR models
• Resolves belt squealing caused by material degradation or improper tension
• Prevents accessory drive failures due to belt stretching or rib separation
• Improves engine accessory performance by maintaining consistent belt grip
• Suitable for vehicles experiencing belt wear from extreme temperature fluctuations

Installation Notes and Tips

When installing the Dayco 6050565 serpentine belt on a Cadillac XLR, ensure the belt routing matches the vehicle’s accessory drive diagram. Check the tensioner for proper operation and replace if necessary to maintain correct belt tension. Inspect pulleys for wear or damage before installation. Proper alignment of ribs with pulley grooves is critical to prevent premature belt wear.

Quality Assurance and Standards Compliance

The Dayco 6050565 serpentine belt complies with SAE J1459 and SAE J2432 standards, ensuring it meets industry requirements for performance and durability. Manufactured with high-quality EPDM and aramid materials, this belt is designed to withstand operating temperatures ranging from -45°C to 212°F. While no specific warranty information is provided, Dayco products are known for consistent quality and reliability in automotive applications.
