Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

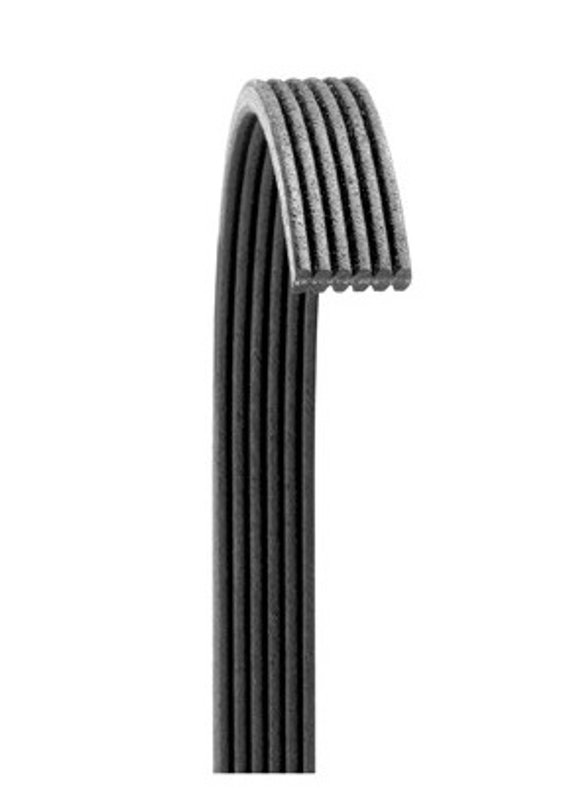

Dayco 6060673 Serpentine Belt - Main Drive
| Brand | Dayco 6060673 |
|---|---|
| Position | Main Drive |
| Material | Epdm, aramid reinforced |
| Top Width | .82 |
| Color | Black |
| Effective Length | 1708.15 |
| Effective Length | 67.25 |
| Outside Circumference | 1733.81 |
| Outside Circumference | 68.26 |
| Rib Quantity | 6 |
| Cross Section | Double sided k-section |
| Maximum Operating Temperature | 100 |
| Maximum Operating Temperature | 212 |
| Minimum Operating Temperature | -42.7 |
| Minimum Operating Temperature | -45 |
| Rib Depth | Standard |
| Rib Profile | Straight rib, double sided |
| Standards | Sae j1459, sae j2432 |
| Fits | Chevrolet · 2 vehicles |
Aramid reinforced. EPDM construction helps resist wear and heat.
Double-sided K-section. Built for accessory drive belt systems.
SAE standards. Meets J1459 and J2432 specifications.
Cross-references ACDelco 6DK674, CARQUEST DK060674 and Gates DK060674 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dayco 6060673 Serpentine Belt Overview
The Dayco 6060673 serpentine belt is a double-sided, 6-rib accessory drive belt built for the 1992-1993 Chevrolet Corvette main drive application. It uses EPDM construction with aramid reinforcement to support consistent belt tracking and dependable power transfer in demanding accessory drive systems.
Compatible With 1992-1993 Chevrolet Corvette main drive applications, this belt is identified by part number 6060673 and cross-references ACDelco 6DK674 for the same application.
Key Features
- EPDM, aramid reinforced construction for durability in accessory drive service
- Double sided K-section profile for the Corvette main drive layout
- 6-rib design with straight rib, double-sided rib profile
- Black finish with standard rib depth
- Effective length: 67.25 in. / 1708.15 mm
- Outside circumference: 68.26 in. / 1733.81 mm
- Built to SAE J1459 and SAE J2432 standards
- Operating temperature range: -45°F to 212°F
Detailed Description
Dayco 6060673 is a serpentine belt engineered for the accessory drive system on the 1992-1993 Chevrolet Corvette. The double-sided K-section construction and 6-rib layout support proper engagement in main drive routing, while EPDM material and aramid reinforcement help the belt maintain strength and dimensional stability under heat and cold cycling. If you are sourcing a replacement serpentine belt for a 1992 Chevrolet Corvette or 1993 Chevrolet Corvette main drive setup, 6060673 provides the specified fitment and dimensions for that application.
What This Belt Helps Address
- Squealing or slipping from a worn accessory drive belt
- Cracking, glazing, or rib wear on the existing belt
- Loss of consistent drive to belt-driven accessories
- Incorrect belt length or profile on a Corvette main drive system
- Reduced belt performance from heat and temperature cycling
Installation Notes and Tips
Verify the routing, rib count, and double-sided K-section profile before installation. Inspect pulleys, tensioners, and idlers for wear or misalignment, since those conditions can shorten belt life and affect tracking. Confirm the application against the vehicle’s main drive configuration for 1992-1993 Chevrolet Corvette models before final installation.
Quality Assurance
This Dayco belt is manufactured to SAE J1459 and SAE J2432 standards and uses EPDM with aramid reinforcement for accessory drive service. Part number 6060673 is also referenced by ACDelco 6DK674 for the same application.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1993 | Chevrolet | Corvette | 5.7L | V8 | Main Drive | Double Side V-Ribbed Belt; Double Sided Belt |
| 1992 | Chevrolet | Corvette | 5.7L | V8 | Main Drive | Double Side V-Ribbed Belt; Double Sided Belt |
| No rows match your filter. | ||||||
