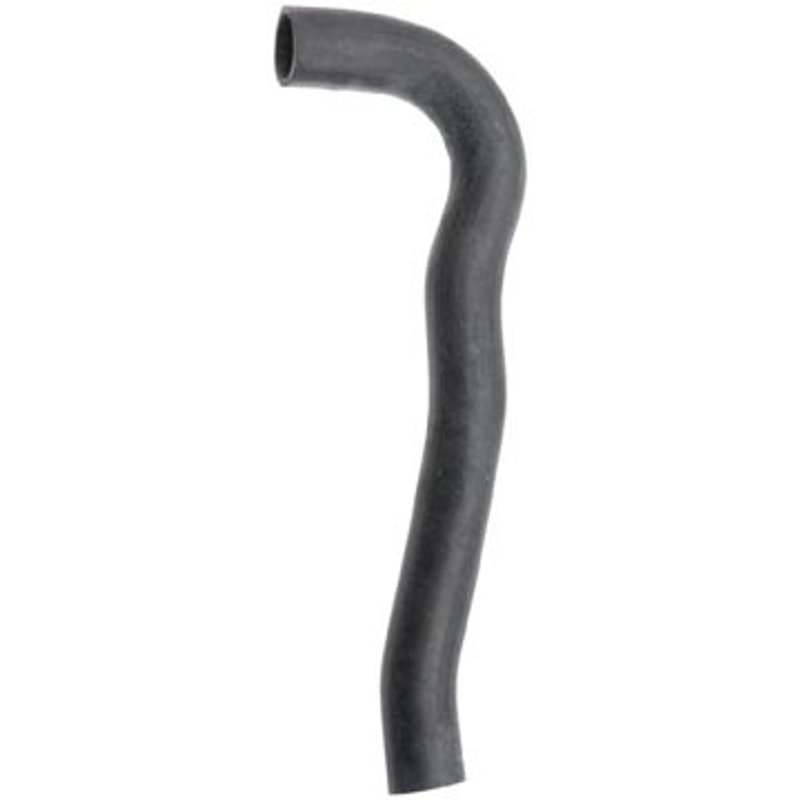

Dayco 71256 Radiator Coolant Hose - Lower, Lower - Tee To Engine or Upper
OE Quality 60-Day Returns
Dayco
 Curved Radiator Hose

Dayco 71256 Radiator Coolant Hose - Lower, Lower - Tee To Engine or Upper

Brand Dayco 71256
Position Upper, Lower - Tee To Engine, and Lower
Material Epdm
Color Black
End 1 Inside Diameter 1 5/16
End 2 Inside Diameter 1 5/16
Contains Heat Shield N
Contains Protective Sleeve N
Hose Type Single i.d. hose
SAE Specification Sae j20r4 class d-1, sae j1684 type ec
Trunk Height 17 3/4
Product line Curved Radiator Hose
Fits Chevrolet, Mitsubishi, and Nissan · 17 vehicles

EPDM construction. Resists heat and coolant exposure for dependable hose performance.

Single I.D. hose. Provides a straightforward coolant transfer path in a curved design.

SAE J20R4 Class D-1. Built to meet recognized coolant hose performance standards.

Cross-references ACDelco 24514L, ACDelco 24580L and ACDelco 26030X for the same application. See all 24.

$25.47Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $25.47
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator Coolant Hose options

Dayco Curved Radiator Hose 71256

Dayco 71256 is a curved radiator coolant hose built from EPDM and finished in black for cooling-system service. With a 1 5/16 in. inside diameter at both ends, it is a single I.D. hose for direct replacement use in select Chevrolet, Mitsubishi, and Nissan applications.

Key Features

  • EPDM construction for coolant-hose service
  • Black finish for a clean OE-style appearance
  • 1 5/16 in. inside diameter at both ends
  • Single I.D. hose design
  • Meets SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
  • Curved radiator hose profile for routed cooling-system connections

Product Details

The Dayco Curved Radiator Hose line focuses on replacement hoses shaped for specific cooling-system routing. Part number 71256 is a curved radiator coolant hose that follows the factory-style path used in select vehicles, helping maintain proper coolant flow between the radiator and engine connections. This hose is listed for 2006 Chevrolet HHR lower tee-to-engine applications with oil cooler, 1996-1999 Mitsubishi Eclipse lower applications, and several Nissan upper hose applications including D21, 200SX, and Pathfinder. This part cross-references Gates 20893 for the same application.

What This Hose Helps Address

  • Coolant leaks from a cracked or aged radiator hose
  • Softening, swelling, or collapse in an original hose
  • Improper hose routing after cooling-system service
  • Loss of coolant circulation caused by hose deterioration
  • Fitment issues on select Chevrolet HHR, Mitsubishi Eclipse, and Nissan upper hose applications

Installation Notes

Verify end diameters, routing, and position before installation. This hose is listed for lower and upper positions depending on vehicle application, including 2006 Chevrolet HHR lower - tee to engine, 1996-1999 Mitsubishi Eclipse lower, and 1984-1989 Nissan 200SX, D21, and Pathfinder upper applications. Confirm whether the vehicle is equipped with power steering on the 1987-1988 Nissan Pathfinder listing, since fitment notes differ by configuration. Inspect clamps, mating tubes, and nearby cooling components before refilling the system.

Quality Assurance

Dayco manufactures this hose to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications, supporting consistent material and performance requirements for radiator coolant hose replacement.

Related reading

This part fits 17 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelTransmissionLitersCylindersPositionNotes
2006ChevroletHHR—2.4LL4Lower - Tee To Enginew/Oil Cooler; Curved Radiator Hose
1999MitsubishiEclipseManual2.4LL4LowerCurved Radiator Hose
1998MitsubishiEclipseManual2.4LL4LowerCurved Radiator Hose
1997MitsubishiEclipseManual2.4LL4LowerCurved Radiator Hose
1996MitsubishiEclipseManual2.4LL4LowerCurved Radiator Hose
1989NissanD21—2.4LL4UpperCurved Radiator Hose
1988Nissan200SX—2.0LL4UpperCurved Radiator Hose
1988NissanD21—2.4LL4UpperCurved Radiator Hose
1988NissanPathfinder—2.4LL4Upperwithout power steering; Curved Radiator Hose
1988NissanPathfinder—2.4LL4UpperSerpentine Belt compatible with vehicles equipped with power steering.; Curved Radiator Hose
1987Nissan200SX—2.0LL4UpperCurved Radiator Hose
1987NissanD21—2.4LL4UpperCurved Radiator Hose
1987NissanPathfinder—2.4LL4Upperwithout power steering; Curved Radiator Hose
1987NissanPathfinder—2.4LL4UpperSerpentine Belt compatible with vehicles equipped with power steering.; Curved Radiator Hose
1986Nissan200SX—2.0LL4UpperCurved Radiator Hose
1985Nissan200SX—2.0LL4UpperCurved Radiator Hose
1984Nissan200SX—2.0LL4UpperCurved Radiator Hose
Directly replaces or cross-references 24 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 24514LACDelco — 24580LACDelco — 26030XCARQUEST — 20893CARQUEST — 22890CARQUEST — 23162Datsun/Nissan — 21501-01G00Datsun/Nissan — 21501-01G10Datsun/Nissan — 21501-02F00Datsun/Nissan — 21501-07F00Duralast — D71256Freshstart — 571Gates — 20893Gates — 22890Gates — 23162General Motors — 22728078Goodyear — 61784Goodyear — 62992Goodyear — 66111Lazorlite — L34-2700Mitsubishi — MR239217NAPA — 7620NAPA — 9525NAPA — 9823
