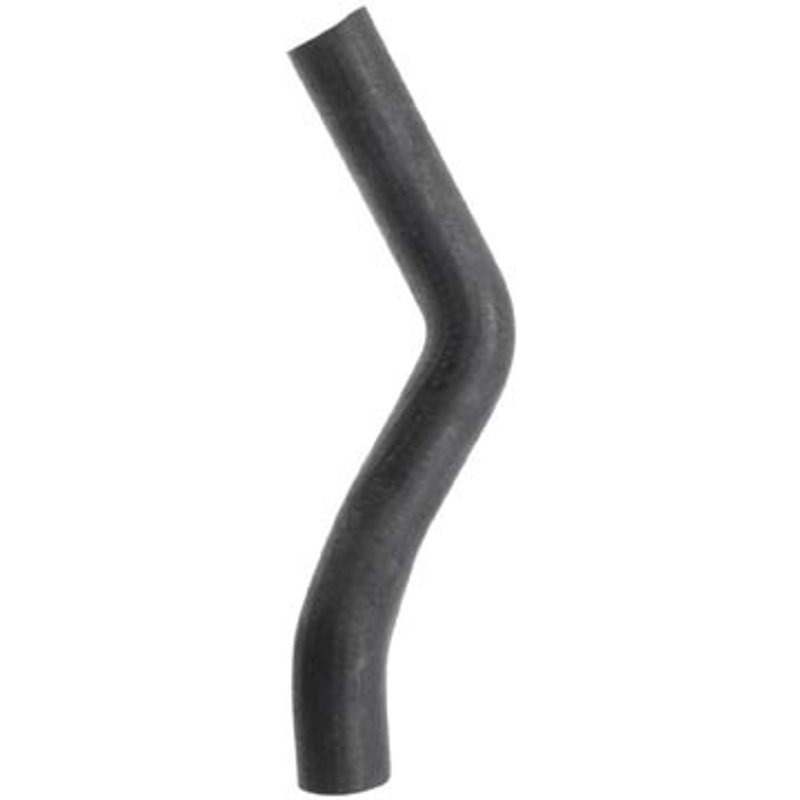

Dayco 71282 Radiator Coolant Hose - Upper
| Brand | Dayco 71282 |
|---|---|
| Position | Upper |
| Material | Epdm |
| Color | Black |
| End 1 Inside Diameter | 1 1/2 |
| End 2 Inside Diameter | 1 1/2 |
| Contains Heat Shield | N |
| Contains Protective Sleeve | N |
| Hose Type | Single i.d. hose |
| SAE Specification | Sae j20r4 class d-1, sae j1684 type ec |
| Trunk Height | 15 1/2 |
| Product line | Curved Radiator Hose |
| Fits | Ford · 3 vehicles |
Curved radiator hose. EPDM construction for dependable coolant transfer.
Single I.D. hose. Uniform 1 1/2-inch ends for a consistent fit.
SAE J20R4 Class D-1. Built to meet recognized coolant hose standards.
Cross-references ACDelco 22273M, CARQUEST 21974 and Duralast D71282 for the same application. See all 9.
Curved Upper Radiator Hose for Ford E-Series
Dayco 71282 is a curved radiator coolant hose built for upper cooling-system routing on select 1986 Ford E-Series vans. Made from EPDM and finished in black, it provides a direct-fit replacement for applications that require a 1 1/2 in. inside diameter at both ends.
This Dayco Curved Radiator Hose line is engineered for common coolant-hose service needs in passenger and commercial vehicles, with a shape that follows the original routing path for the upper hose connection.
- EPDM construction for coolant-hose service
- Black finish
- Single I.D. hose design
- 1 1/2 in. inside diameter at both ends
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
- Curved profile with 15 1/2 in. trunk height
Application Details
Compatible with 1986 Ford E-150 Econoline, upper; 1986 Ford E-150 Econoline Club Wagon, upper; and 1986 Ford E-250 Econoline, upper. Search terms such as 1986 Ford E-150 Econoline upper radiator hose, 1986 Ford E-150 Econoline Club Wagon curved coolant hose, and 1986 Ford E-250 Econoline upper radiator hose all point to this application. Part number 71282 is also referenced in interchange listings for ACDelco 22273M, CARQUEST 21974, Duralast D71282, Gates 21974, Goodyear 60913, Motorcraft KM1595, and NAPA 8664.
What This Hose Helps Address
- Cracked or hardened upper radiator hose material
- Coolant leaks at the hose connection points
- Incorrect hose shape that does not follow the factory routing
- Restricted coolant flow caused by a deteriorated hose
- Service replacement for aging cooling-system rubber components
Installation Notes and Tips
Verify the hose end diameters and routing before installation. Inspect the radiator neck, engine fitting, and clamps for wear or corrosion, and replace any damaged sealing surfaces before installing the new hose. Confirm that the hose follows the original curved path without kinks or twist.
Quality Assurance
Dayco 71282 is manufactured to meet SAE J20R4 Class D-1 and SAE J1684 Type EC requirements for radiator coolant hose applications. Those specifications help define material and performance expectations for cooling-system service on the listed Ford E-Series vehicles.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1986 | Ford | E-150 Econoline | 5.0L | V8 | Upper | Curved Radiator Hose |
| 1986 | Ford | E-150 Econoline Club Wagon | 5.0L | V8 | Upper | Curved Radiator Hose |
| 1986 | Ford | E-250 Econoline | 5.0L | V8 | Upper | Curved Radiator Hose |
