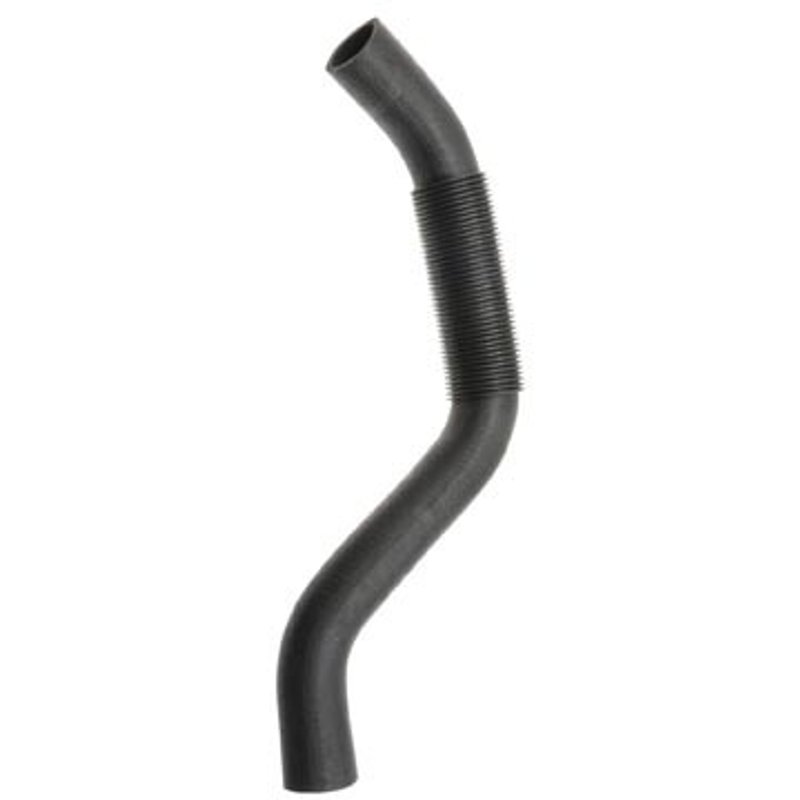

Dayco 71610 Radiator Coolant Hose - Lower or Upper
| Brand | Dayco 71610 |
|---|---|
| Position | Lower |
| Color | Black |
| Contains Protective Sleeve | Y |
| End 1 Inside Diameter | 1 5/16 |
| End 2 Inside Diameter | 1 5/16 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R4 Class D-1, SAE J1684 Type EC |
| Trunk Height | 17 |
| Product line | Curved Radiator Hose |
| Fits | Hyundai, Acura, Mitsubishi, and Dodge · 35 vehicles |
Curved hose design. Helps route coolant smoothly with a cleaner, more direct fit.
EPDM construction. Resists heat and coolant exposure for dependable service.
Protective sleeve included. Adds extra abrasion protection where the hose runs.
Cross-references ACDelco 22598M, ACDelco 24227L and ACDelco 24614L for the same application. See all 15.
Curved Radiator Hose for OE-Style Cooling Service
The Dayco 71610 curved radiator hose is built for cooling-system service on select Acura, Hyundai, Mitsubishi, and Dodge applications. Made from EPDM rubber with a protective sleeve, it is shaped to match the routing needed for upper and lower radiator hose positions on listed vehicles.
Dayco’s Curved Radiator Hose line focuses on direct-fit replacement hoses for vehicles that need a formed coolant hose with the correct bend, inside diameter, and material construction. The 71610 follows that approach with a single I.D. hose design and SAE J20R4 Class D-1 / SAE J1684 Type EC compliance.
Key Features
- Dayco 71610 curved radiator hose for cooling-system replacement
- EPDM construction for coolant-hose service
- Black finish with protective sleeve
- 1 5/16 in. inside diameter at both ends
- Single I.D. hose design for formed routing
- Meets SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
- Compatible with upper and lower radiator hose applications listed below
Detailed Description
This Dayco radiator coolant hose is a formed, curved hose intended for vehicles that require a specific bend to route coolant between engine and radiator connections. The EPDM rubber construction is selected for standard cooling-system temperatures and coolant exposure, while the protective sleeve adds an extra layer where routing passes near nearby components. If you are replacing a worn hose on a 2004-2008 Acura TSX upper radiator hose application, a 2006-2011 Hyundai Azera lower radiator hose application, or a 1991-1999 Mitsubishi 3000GT upper radiator hose application, the Dayco 71610 provides the correct curved profile for those listed positions.
This part cross-references Duralast D71610 and Gates 21737 for the same application.
Common Problems This Hose Can Address
- Coolant leaks from cracked, hardened, or split radiator hose rubber
- Improper hose routing caused by a collapsed or misshaped hose
- Soft spots or swelling from age and heat cycling
- Loss of coolant from damaged hose ends or worn sealing surfaces
- Cooling-system service on vehicles with a formed upper or lower hose layout
Installation Notes and Tips
- Verify the hose position before installation: upper or lower, as listed for the vehicle.
- Match the 1 5/16 in. end inside diameter to the existing connection points.
- Inspect clamps, necks, and adjacent cooling components before reassembly.
- Confirm the hose routing follows the original curved path without twist or tension.
- Refill and bleed the cooling system according to the vehicle service procedure after installation.
Quality Assurance
The Dayco 71610 is built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications, supporting consistent radiator hose performance for listed applications. It is a formed EPDM replacement hose designed for direct cooling-system service on the vehicles shown below.
- Fits 2006-2011 Hyundai Azera, lower
- Fits 2004-2008 Acura TSX, upper
- Fits 1991-1999 Mitsubishi 3000GT, upper
- Fits 1991-1996 Dodge Stealth, upper
- Fits 1992-1995 Mitsubishi Diamante, upper
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2011 | Hyundai | Azera | 3.3L | V6 | Lower | Curved Radiator Hose |
| 2011 | Hyundai | Azera | 3.8L | V6 | Lower | Curved Radiator Hose |
| 2010 | Hyundai | Azera | 3.3L | V6 | Lower | Curved Radiator Hose |
| 2010 | Hyundai | Azera | 3.8L | V6 | Lower | Curved Radiator Hose |
| 2009 | Hyundai | Azera | 3.3L | V6 | Lower | Curved Radiator Hose |
| 2009 | Hyundai | Azera | 3.8L | V6 | Lower | Curved Radiator Hose |
| 2008 | Acura | TSX | — | — | Upper | Curved Radiator Hose |
| 2008 | Hyundai | Azera | 3.3L | V6 | Lower | Curved Radiator Hose |
| 2008 | Hyundai | Azera | 3.8L | V6 | Lower | Curved Radiator Hose |
| 2007 | Acura | TSX | — | — | Upper | Curved Radiator Hose |
| 2007 | Hyundai | Azera | 3.3L | V6 | Lower | Curved Radiator Hose |
| 2007 | Hyundai | Azera | 3.8L | V6 | Lower | Curved Radiator Hose |
| 2006 | Acura | TSX | — | — | Upper | Curved Radiator Hose |
| 2006 | Hyundai | Azera | — | — | Lower | Curved Radiator Hose |
| 2005 | Acura | TSX | — | — | Upper | Curved Radiator Hose |
| 2004 | Acura | TSX | — | — | Upper | Curved Radiator Hose |
| 1999 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1998 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1997 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1996 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1996 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1995 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1995 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1995 | Mitsubishi | Diamante | — | — | Upper | Curved Radiator Hose |
| 1994 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1994 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1994 | Mitsubishi | Diamante | — | — | Upper | Curved Radiator Hose |
| 1993 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1993 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1993 | Mitsubishi | Diamante | — | — | Upper | Curved Radiator Hose |
| 1992 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1992 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
| 1992 | Mitsubishi | Diamante | — | — | Upper | Curved Radiator Hose |
| 1991 | Dodge | Stealth | — | — | Upper | Curved Radiator Hose |
| 1991 | Mitsubishi | 3000GT | — | — | Upper | Curved Radiator Hose |
