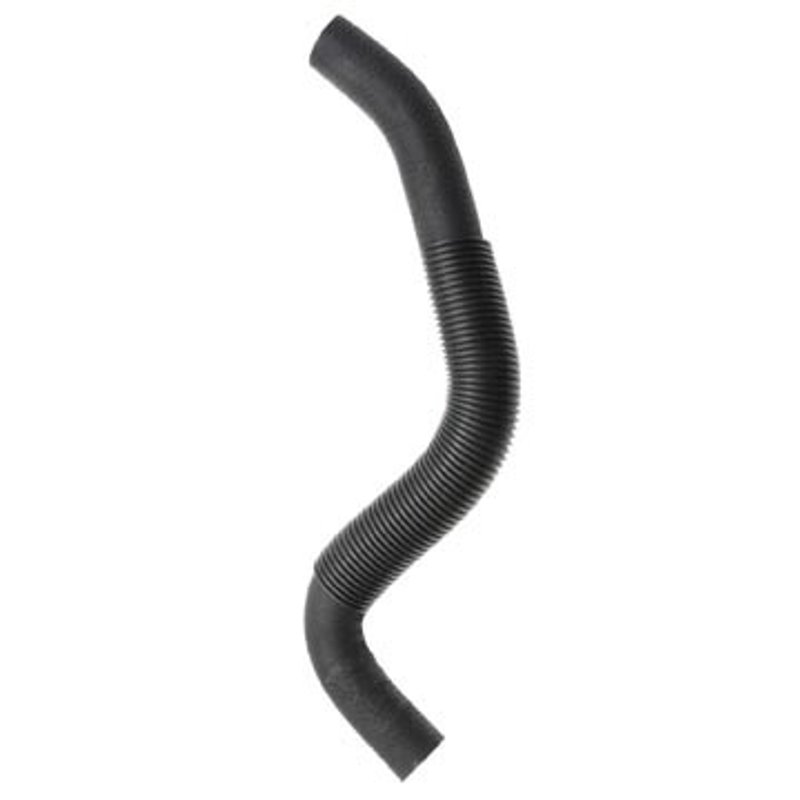

Dayco 72338 Radiator Coolant Hose - Lower or Lower - Tee To Radiator
| Brand | Dayco 72338 |
|---|---|
| Position | Lower - Tee To Radiator |
| Color | Black |
| Contains Protective Sleeve | Y |
| End 1 Inside Diameter | 1 5/16 |
| End 2 Inside Diameter | 1 5/16 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R4 Class D-1, SAE J1684 Type EC |
| Trunk Height | 19 |
| Product line | Curved Radiator Hose |
| Fits | Chevrolet, Pontiac, and Mitsubishi · 9 vehicles |
Curved hose design. Helps route coolant smoothly through the cooling system.
EPDM construction. Resists heat and coolant exposure for dependable service.
Protective sleeve included. Adds extra abrasion resistance where the hose needs it.
Cross-references ACDelco 24581L, CARQUEST 23165 and Duralast E72338 for the same application. See all 8.
Dayco Curved Radiator Hose 72338
Dayco 72338 is a curved radiator coolant hose built for lower cooling-system routing on select Chevrolet, Pontiac, and Mitsubishi applications. It uses EPDM construction for coolant resistance and includes a protective sleeve to help shield the hose in higher-heat areas.
Key Features
- EPDM rubber construction for radiator coolant service
- Black finish for OE-style appearance
- 1 5/16 in. inside diameter at both ends
- Single I.D. hose design for curved lower radiator routing
- Protective sleeve included for added abrasion and heat protection
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
Product Details
This Dayco curved radiator hose is engineered for lower coolant transfer where a formed hose is required. The 72338 hose matches applications that need a 1 5/16 in. inside diameter at both ends and a curved profile for proper routing between the engine tee and radiator or lower radiator connection. It is compatible with 2006-2007 Chevrolet Cobalt, lower - tee to radiator; 2007 Pontiac G5, lower - tee to radiator; 2006 Pontiac Pursuit, lower - tee to radiator; and 2003-2005 Mitsubishi Lancer, lower. This part cross-references ACDelco 24581L and Gates 23165 for the same application.
What It Helps Address
- Coolant leaks from a cracked or softened lower radiator hose
- Restricted coolant flow caused by hose collapse or internal deterioration
- Improper hose routing on curved lower radiator connections
- Heat-related wear in exposed hose sections
- Fitment issues when replacing an OE-style formed coolant hose
Installation Notes
Verify hose routing, end diameters, and connection points before installation. Inspect clamps, radiator necks, and tee fittings for wear or corrosion before transferring the hose into service. Confirm the hose follows the original curved path without twisting so coolant flow and clearance remain correct.
Quality Assurance
Dayco manufactures this radiator coolant hose to meet SAE J20R4 Class D-1 and SAE J1684 Type EC requirements, supporting consistent material and performance standards for cooling-system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2007 | Chevrolet | Cobalt | 2.2L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2007 | Chevrolet | Cobalt | 2.4L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2007 | Pontiac | G5 | 2.2L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2007 | Pontiac | G5 | 2.4L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2006 | Chevrolet | Cobalt | 2.2L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2006 | Pontiac | Pursuit | 2.2L | L4 | Lower - Tee To Radiator | Curved Radiator Hose |
| 2005 | Mitsubishi | Lancer | 2.0L | L4 | Lower | Curved Radiator Hose |
| 2004 | Mitsubishi | Lancer | 2.0L | L4 | Lower | Curved Radiator Hose |
| 2003 | Mitsubishi | Lancer | 2.0L | L4 | Lower | Curved Radiator Hose |
