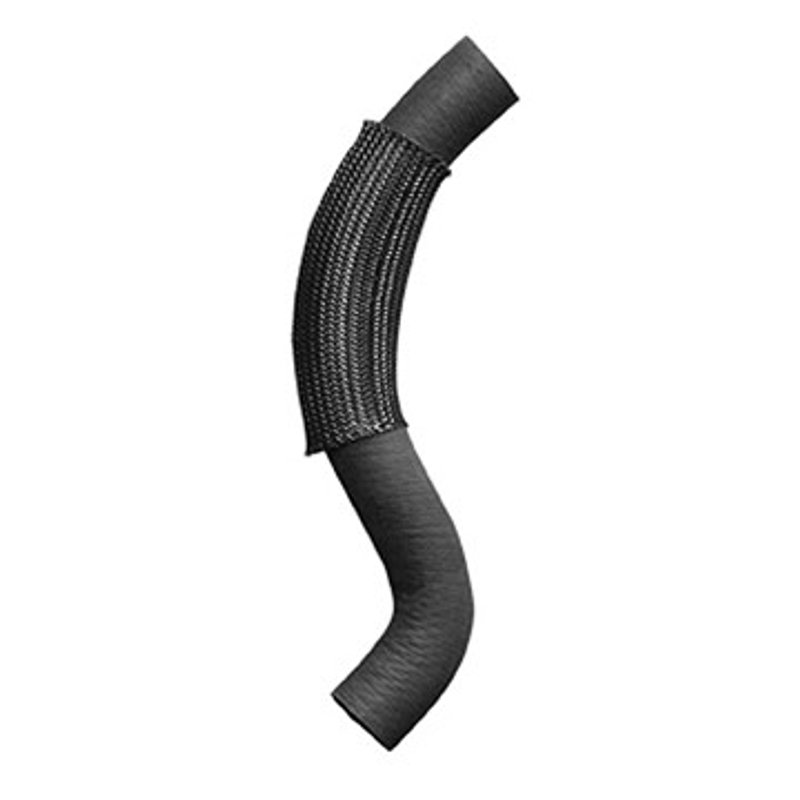

Dayco 72411 Radiator Coolant Hose - Upper
| Brand | Dayco 72411 |
|---|---|
| Position | Upper |
| Color | Black |
| Contains Protective Sleeve | Y |
| End 1 Inside Diameter | 1 5/16 |
| End 1 Outside Diameter | 1 11/16 |
| End 2 Inside Diameter | 1 5/16 |
| End 2 Outside Diameter | 1 11/16 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R4 Class D-1, SAE J1684 Type EC |
| Trunk Height | 14 |
| Product line | Curved Radiator Hose |
| Fits | Scion · 6 vehicles |
Curved hose design. Routes coolant smoothly with a precise, formed fit.
EPDM construction. Resists heat and coolant exposure for dependable service.
Protective sleeve included. Adds extra abrasion resistance where the hose needs it most.
Cross-references ACDelco 22589M, CARQUEST 23254 and Duralast D72411 for the same application. See all 7.
Curved Radiator Hose for Scion tC
Dayco 72411 is a curved radiator coolant hose built for the upper cooling circuit on select Scion tC models. Made from EPDM rubber with a black finish and a protective sleeve, it is shaped to match the routing needed for a clean, secure coolant connection.
Compatible with 2005-2010 Scion tC, upper, this Dayco Curved Radiator Hose supports direct replacement service for vehicles needing a formed hose with the correct inside and outside diameters. The Dayco 72411 is also cross-referenced to Toyota 16571-28070 for the same application.
Key Features
- EPDM construction for radiator coolant service
- Curved hose profile for upper radiator routing
- Single I.D. hose design
- 1 5/16 in. inside diameter at both ends
- 1 11/16 in. outside diameter at both ends
- Protective sleeve included; heat shield not included
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
- Black finish for OE-style appearance
Product Details
Dayco Curved Radiator Hose 72411 is engineered as a formed coolant hose for the upper radiator connection on 2005-2010 Scion tC models. The EPDM rubber construction is suited for cooling-system use, while the curved shape helps maintain the intended hose path in the engine bay. With matching 1 5/16-inch inside diameters at both ends, this hose is specified for a direct-fit replacement where the original hose follows the same routing and connection size. Dayco 72411 is a practical choice for Scion tC upper radiator hose replacement and related cooling-system service.
Common Replacement Reasons
- Cracked or hardened radiator hose rubber
- Coolant seepage at the hose connection
- Loss of hose flexibility from age and heat cycling
- Incorrect fitment after prior cooling-system repair
- Need for a formed upper radiator hose on a Scion tC
Installation Notes and Tips
Verify the hose routing, end diameters, and upper-position application before installation. Inspect the radiator neck and engine-side connection for corrosion, residue, or sharp edges that can affect sealing. Replace worn clamps as needed and confirm the hose sits naturally without twisting once installed. This part fits 2005-2010 Scion tC, upper.
Quality Assurance
Dayco manufactures this hose to meet SAE J20R4 Class D-1 and SAE J1684 Type EC requirements for radiator coolant hose applications. The protective sleeve adds an extra layer of abrasion protection in the specified routing area.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2010 | Scion | tC | Upper | Curved Radiator Hose |
| 2009 | Scion | tC | Upper | Curved Radiator Hose |
| 2008 | Scion | tC | Upper | Curved Radiator Hose |
| 2007 | Scion | tC | Upper | Curved Radiator Hose |
| 2006 | Scion | tC | Upper | Curved Radiator Hose |
| 2005 | Scion | tC | Upper | Curved Radiator Hose |
