Dayco 72454 Radiator Coolant Hose - Upper
OE Quality 60-Day Returns
Dayco
 Curved Radiator Hose

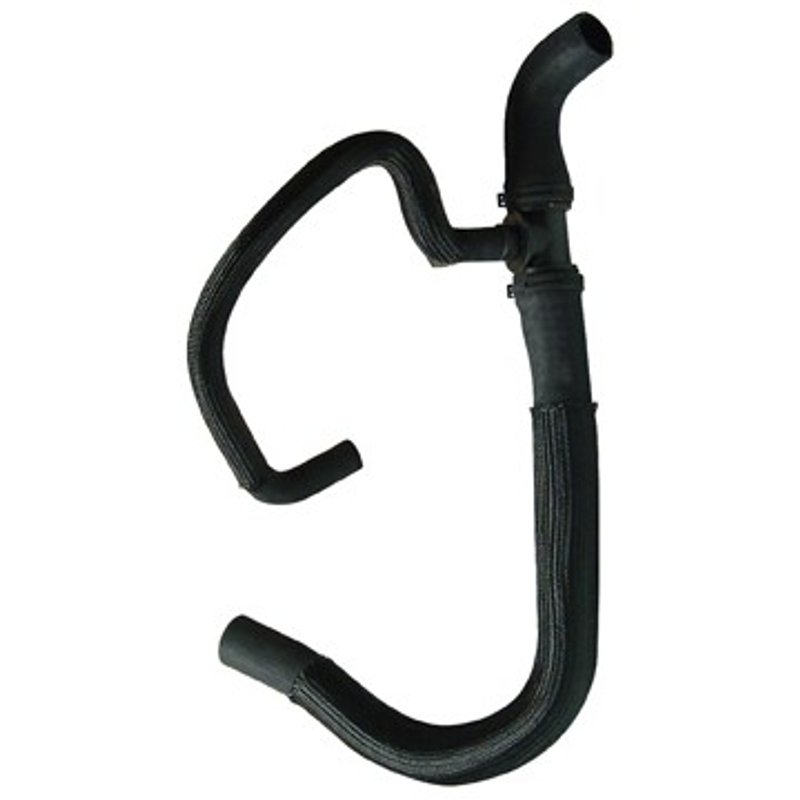

Dayco 72454 Radiator Coolant Hose - Upper

Brand Dayco 72454
Position Upper
Material Epdm
Color Black
End 1 Inside Diameter 1 1/2
End 2 Inside Diameter 1 1/2
End 3 Inside Diameter 3/4
Contains Heat Shield N
Contains Protective Sleeve Y
End 1 Outside Diameter 1 7/8
End 2 Outside Diameter 1 7/8
End 3 Outside Diameter 1 1/16
Hose Type Branched hose
SAE Specification Sae j20r4 class d-1, sae j1684 type ec
Trunk Height 25
Product line Curved Radiator Hose
Fits Ford and Lincoln · 8 vehicles

Branched hose. Built with a protective sleeve for added abrasion resistance.

EPDM construction. Resists heat and coolant exposure in demanding cooling systems.

Curved radiator hose. Formed for smooth routing and reliable coolant flow.

Cross-references ACDelco 26630X, Duralast E72454 and Ford 7T4Z-8260-B for the same application. See all 5.

$108.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $108.36
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator Coolant Hose options

Curved Upper Radiator Hose for Ford Edge and Lincoln MKX

Dayco 72454 is a branched radiator coolant hose built from EPDM for dependable coolant routing in the upper cooling circuit. It is a black hose with a protective sleeve and SAE J20R4 Class D-1 and SAE J1684 Type EC compliance for the listed applications.

Compatible with 2007-2010 Ford Edge, upper, w/Tow Pkg.; Curved Radiator Hose, and 2007-2010 Lincoln MKX, upper, w/Tow Pkg.; Curved Radiator Hose.

Key Features

  • EPDM construction for coolant-system service
  • Branched hose design with 1 1/2 in. end 1 and end 2 inside diameters
  • 3/4 in. end 3 inside diameter for the branch connection
  • Protective sleeve included; heat shield not included
  • Black finish for a factory-style appearance
  • Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications

Product Details

Dayco Curved Radiator Hose 72454 is shaped for upper radiator coolant routing on the 2007-2010 Ford Edge and 2007-2010 Lincoln MKX with tow package. The EPDM rubber construction is suited for cooling-system temperatures and coolant exposure, while the branched layout supports the hose routing used in these vehicles. If you are replacing a worn upper coolant hose on a Ford Edge or Lincoln MKX, this part number 72454 matches the listed fitment and configuration.

This part cross-references Ford 7T4Z-8260-B for the same application.

Common Reasons for Replacement

  • Coolant seepage at the hose body or branch connection
  • Cracking, hardening, or swelling from age and heat cycling
  • Soft spots or collapse that restrict coolant flow
  • Visible wear on the upper radiator hose in tow-package vehicles
  • Loss of sealing at the radiator or engine connection points

Installation Notes and Tips

Verify the vehicle is a 2007-2010 Ford Edge or 2007-2010 Lincoln MKX with tow package before ordering. Inspect the mating necks, clamps, and adjacent cooling components for corrosion or damage before installing Dayco 72454. Drain coolant as needed, route the hose to match the original curved layout, and confirm the protective sleeve is positioned correctly away from heat sources.

Quality Assurance

Dayco manufactures cooling-system hoses to published SAE specifications, including SAE J20R4 Class D-1 and SAE J1684 Type EC for this application. The part number 72454 is built for the listed upper radiator hose fitment on Ford Edge and Lincoln MKX models.

Related reading

This part fits 8 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2010FordEdgeUpperw/Tow Pkg.; Curved Radiator Hose
2010LincolnMKXUpperw/Tow Pkg.; Curved Radiator Hose
2009FordEdgeUpperw/Tow Pkg.; Curved Radiator Hose
2009LincolnMKXUpperw/Tow Pkg.; Curved Radiator Hose
2008FordEdgeUpperw/Tow Pkg.; Curved Radiator Hose
2008LincolnMKXUpperw/Tow Pkg.; Curved Radiator Hose
2007FordEdgeUpperw/Tow Pkg.; Curved Radiator Hose
2007LincolnMKXUpperw/Tow Pkg.; Curved Radiator Hose
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 26630XDuralast — E72454Ford — 7T4Z-8260-BGates — 23446Goodyear — 66143
