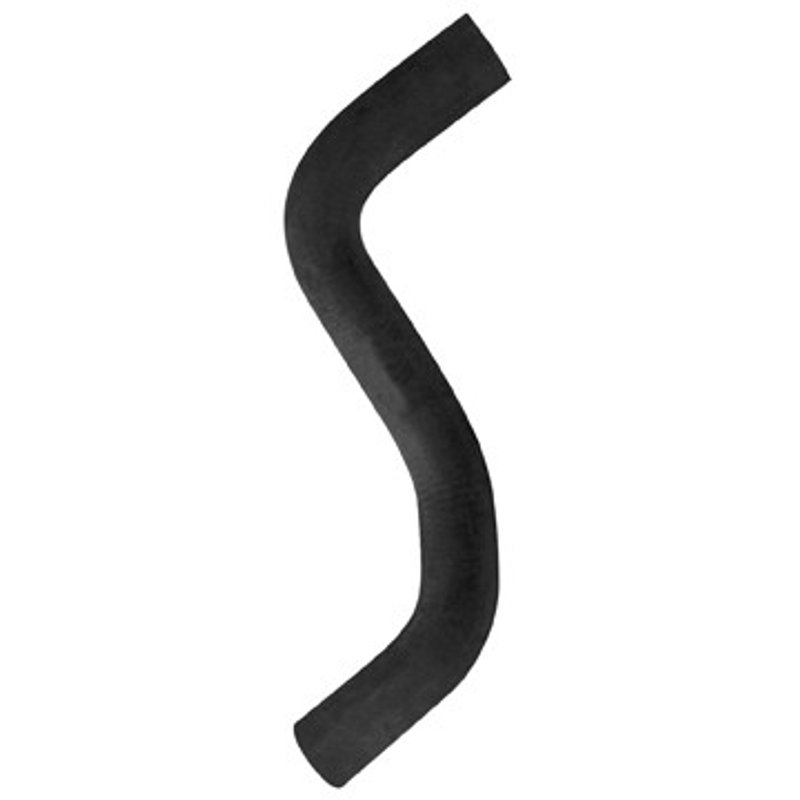

Dayco 72502 Radiator Coolant Hose - Upper
OE Quality 60-Day Returns
Dayco
 Curved Radiator Hose

Dayco 72502 Radiator Coolant Hose - Upper

Brand Dayco 72502
Position Upper
Color Black
End 1 Inside Diameter 1 3/8
End 2 Inside Diameter 1 3/8
Hose Type Single I.D. Hose
Material EPDM
SAE Specification SAE J20R4 Class D-1, SAE J1684 Type EC
Trunk Height 17 1/2
Product line Curved Radiator Hose
Fits Hyundai · 3 vehicles

Curved radiator hose. Single I.D. hose for coolant routing and a precise fit.

EPDM construction. Resists heat and coolant exposure for dependable service.

SAE-rated hose. Built to meet J20R4 Class D-1 and J1684 Type EC standards.

Cross-references ACDelco 24591L, CARQUEST 23231 and Duralast E72502 for the same application. See all 7.

$53.74Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $53.74
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator Coolant Hose options

Dayco 72502 Curved Radiator Hose

The Dayco 72502 curved radiator hose is a direct-fit coolant hose for select Hyundai Santa Fe applications. Built from EPDM rubber with a black finish, it is shaped to route coolant cleanly through the engine bay while maintaining the correct 1 3/8-inch inside diameter at both ends.

Compatible with 2007-2009 Hyundai Santa Fe, upper radiator hose applications, this hose is built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications for cooling-system service.

Key Features

  • EPDM construction for coolant-system durability
  • Curved radiator hose design for proper routing
  • 1 3/8-inch inside diameter at both ends
  • Black finish for OE-style appearance
  • Single I.D. hose configuration
  • Meets SAE J20R4 Class D-1 and SAE J1684 Type EC requirements

Product Details

Dayco Curved Radiator Hose 72502 is engineered for upper radiator hose service on the 2007, 2008, and 2009 Hyundai Santa Fe. The curved profile helps match the factory hose path, while the EPDM material is suited for hot coolant exposure and everyday underhood conditions. If you are replacing a worn or leaking upper hose on a Hyundai Santa Fe, this part number 72502 provides the correct size and shape for the listed application.

This part cross-references ACDelco 24591L and Gates 23231 for the same application.

What It Helps Fix

  • Coolant leaks from a cracked or aged upper radiator hose
  • Softening, swelling, or collapse of the original hose
  • Improper hose routing caused by a damaged curved hose
  • Loss of cooling-system pressure from hose deterioration
  • Overheating concerns related to restricted coolant flow

Installation Notes and Tips

Verify hose routing and end diameters before installation. Inspect the radiator neck, engine connection points, and clamps for wear or corrosion before transferring the new hose into place. Confirm the hose is positioned without twists or kinks so coolant can circulate properly through the upper radiator circuit.

Quality Assurance

Dayco manufactures cooling-system components to meet published SAE specifications for fit and service performance. The 72502 radiator coolant hose is built to those standards for the listed Hyundai Santa Fe applications.

Related reading

This part fits 3 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2009HyundaiSanta Fe3.3LV6UpperCurved Radiator Hose
2008HyundaiSanta Fe3.3LV6UpperCurved Radiator Hose
2007HyundaiSanta Fe3.3LV6UpperCurved Radiator Hose
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 24591LCARQUEST — 23231Duralast — E72502Gates — 23231Goodyear — 66261Hyundai — 25411-2B200NAPA — 9994
