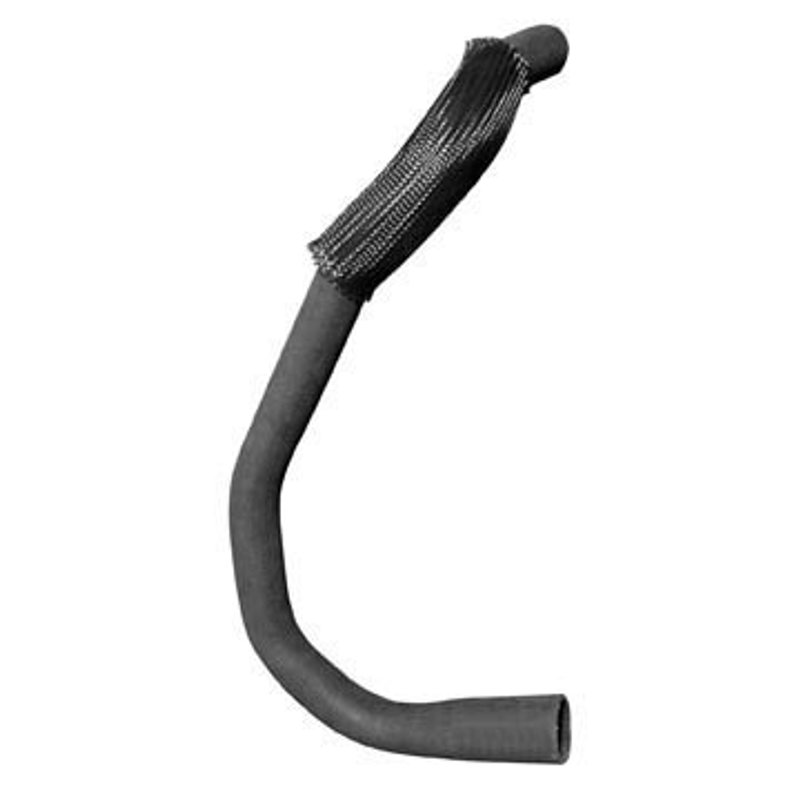

Dayco 72676 Radiator Coolant Hose - Lower
OE Quality 60-Day Returns
Dayco
 Curved Radiator Hose

Dayco 72676 Radiator Coolant Hose - Lower

Brand Dayco 72676
Position Lower
Color Black
Contains Protective Sleeve Y
End 1 Inside Diameter 1 5/16
End 1 Outside Diameter 1 21/32
End 2 Inside Diameter 1 1/2
End 2 Outside Diameter 1 29/32
Hose Type Dual I.D. Hose
Material EPDM
SAE Specification SAE J20R4 Class D-1, SAE J1684 Type EC
Trunk Height 22 1/2
Product line Curved Radiator Hose
Fits Cadillac · 12 vehicles

Curved hose. Dual I.D. design helps route coolant smoothly and efficiently.

EPDM construction. Resists heat and coolant exposure for dependable service.

Protective sleeve. Adds extra abrasion resistance where the hose needs it most.

Cross-references ACDelco 26511X, CARQUEST 23034 and Duralast E72676 for the same application. See all 8.

$128.18Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $128.18
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator Coolant Hose options

Curved Lower Radiator Hose for Cadillac

Dayco 72676 is a curved radiator coolant hose built for lower cooling-system routing on select Cadillac applications. Made from EPDM with a black finish and a protective sleeve, it is shaped to follow the factory hose path while handling coolant flow in demanding engine bay conditions.

Key Features

  • EPDM construction for coolant hose service
  • Dual I.D. hose design with 1 5/16 in. end 1 inside diameter and 1 1/2 in. end 2 inside diameter
  • Black curved radiator hose profile for lower routing
  • Protective sleeve included for added abrasion resistance
  • Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
  • Dayco 72676 replacement hose for select Cadillac STS and Cadillac SRX models

Product Details

Dayco Curved Radiator Hose 72676 is a lower radiator coolant hose engineered for vehicles that use a dual inside diameter connection. The EPDM rubber construction is suited for coolant transfer, while the curved shape helps match the original hose routing in the engine bay. This hose is listed for 2005-2010 Cadillac STS, lower, w/o Tow Pkg.; Curved Radiator Hose, and 2004-2009 Cadillac SRX, lower, w/o Tow Pkg.; Curved Radiator Hose. This part cross-references ACDelco 26511X and Gates 23034 for the same application.

Common Cooling System Issues

  • Cracked or hardened lower radiator hose
  • Coolant seepage at the hose connection points
  • Collapsed or weakened hose under operating temperature
  • Incorrect hose shape or diameter for factory routing
  • Cooling-system service on Cadillac STS and Cadillac SRX models

Installation Notes

Verify the vehicle is a 2004-2009 Cadillac SRX or 2005-2010 Cadillac STS with lower hose routing and without the tow package before installation. Match the hose ends to the dual I.D. connection sizes and confirm the routing follows the original curved path. Inspect clamps, necks, and adjacent cooling components for wear before reassembly.

Quality Assurance

Dayco manufactures this hose to SAE J20R4 Class D-1 and SAE J1684 Type EC requirements, supporting consistent material and dimensional standards for cooling-system service.

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersPositionNotes
2010CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2009CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2009CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2008CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2008CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2007CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2007CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2006CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2006CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2005CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2005CadillacSTS4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
2004CadillacSRX4.6LV8Lowerw/o Tow Pkg.; Curved Radiator Hose
Directly replaces or cross-references 8 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 26511XCARQUEST — 23034Duralast — E72676Gates — 23034General Motors — 88956892General Motors — 89023433Goodyear — 66105NAPA — 9699
