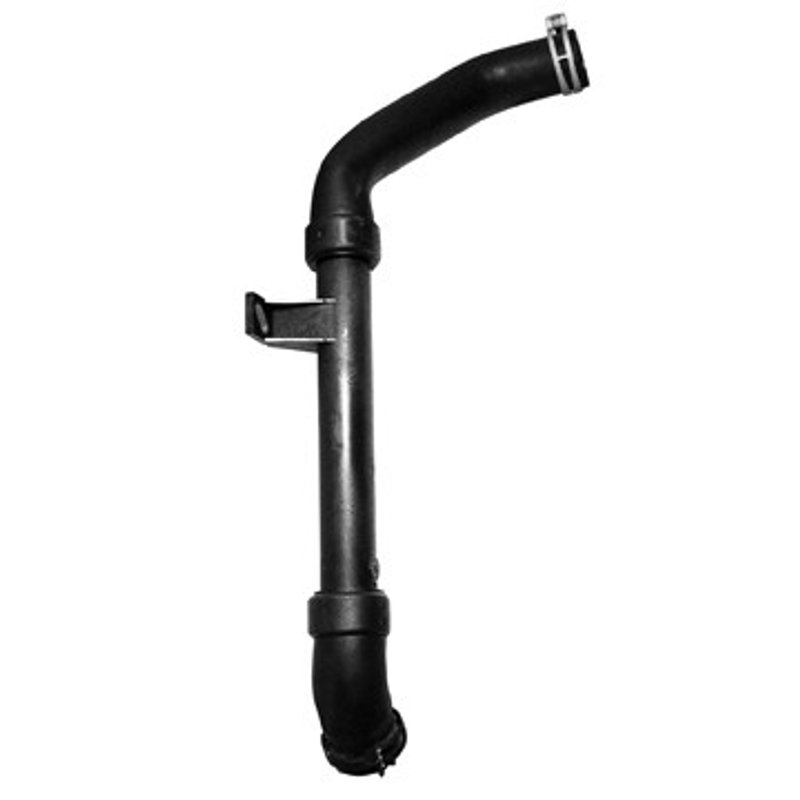

Dayco 72695 Radiator Coolant Hose - Lower
| Brand | Dayco 72695 |
|---|---|
| Position | Lower |
| Material | Epdm |
| Color | Black |
| End 1 Inside Diameter | 1 1/2 |
| End 2 Inside Diameter | 1 19/32 |
| Contains Heat Shield | N |
| Contains Protective Sleeve | N |
| End 1 Outside Diameter | 1 25/32 |
| End 2 Outside Diameter | 1 15/16 |
| Hose Type | Dual i.d. hose |
| SAE Specification | Sae j20r4 class d-1, sae j1684 type ec |
| Trunk Height | 22 1/2 |
| Product line | Curved Radiator Hose |
| Fits | Ford and Lincoln · 7 vehicles |
EPDM construction. Resists heat and coolant exposure for dependable hose performance.
Dual I.D. hose. Provides a precise fit between different hose diameters.
Curved hose design. Helps route coolant smoothly through the cooling system.
Cross-references ACDelco 26446X, Duralast E72695 and Ford 3W4Z-8286-DB for the same application. See all 6.
Curved Lower Radiator Hose for Ford and Lincoln
Dayco 72695 is a curved radiator coolant hose built from EPDM for lower cooling-system routing. It is shaped for direct replacement service on select Ford Thunderbird and Lincoln LS applications with no oil cooler.
Key Features
- EPDM construction for coolant-system durability
- Black finish for a clean OE-style appearance
- Dual I.D. hose design with 1 1/2 in. end 1 inside diameter and 1 19/32 in. end 2 inside diameter
- End outside diameters measure 1 25/32 in. and 1 15/16 in.
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
- Curved radiator hose profile for lower hose routing
- Dayco 72695 part number for easy identification
Product Details
Dayco’s Curved Radiator Hose line focuses on formed coolant hoses that match the routing and connection points used in specific vehicle cooling systems. This Dayco 72695 hose follows that approach with a curved shape, dual inside diameters, and EPDM material selected for radiator coolant service. It is a direct-fit lower radiator hose for 2003-2006 Lincoln LS and 2003-2005 Ford Thunderbird models without an oil cooler. This part cross-references Ford 3W4Z-8286-DB and Gates 22797 for the same application.
Used For These Cooling Issues
- Replacing a cracked or leaking lower radiator hose
- Restoring coolant flow between the radiator and engine
- Correcting hose fitment on a curved lower hose route
- Addressing soft, swollen, or heat-aged EPDM hose material
- Servicing a Ford Thunderbird or Lincoln LS cooling system with no oil cooler
Installation Notes and Tips
Verify the hose routing, end diameters, and vehicle configuration before installation. This hose is specified for the lower position and for vehicles without an oil cooler. Inspect adjoining clamps, necks, and mating surfaces for wear or corrosion before installing Dayco 72695.
Quality Assurance
Dayco 72695 is manufactured to SAE J20R4 Class D-1 and SAE J1684 Type EC standards for radiator coolant hose service. The EPDM construction supports consistent performance in cooling-system use.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2006 | Lincoln | LS | — | — | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2005 | Ford | Thunderbird | — | — | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2005 | Lincoln | LS | 3.9L | V8 | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2004 | Ford | Thunderbird | — | — | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2004 | Lincoln | LS | 3.9L | V8 | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2003 | Ford | Thunderbird | — | — | Lower | w/o Oil Cooler; Curved Radiator Hose |
| 2003 | Lincoln | LS | 3.9L | V8 | Lower | w/o Oil Cooler; Curved Radiator Hose |
