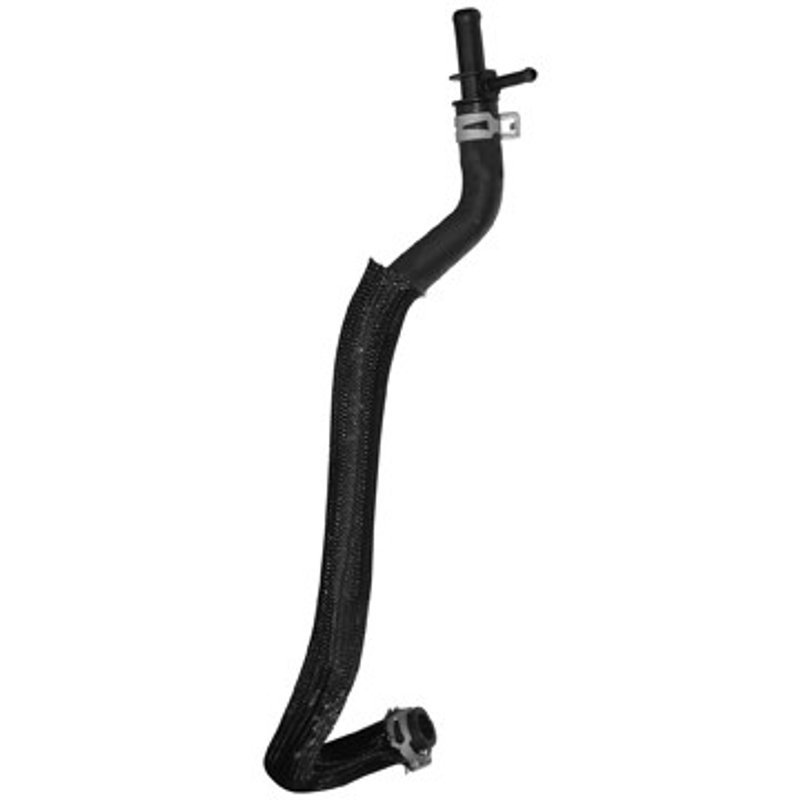

Dayco 72699 HVAC Heater Hose - Connector To Engine

Dayco 72699 Curved Heater Hose Overview

The Dayco 72699 is a branched HVAC heater hose built for specific Ford, Mercury, and Lincoln applications. It uses EPDM construction with a black finish and a protective sleeve to support coolant transfer in the heater circuit while routing around engine bay components.

Compatible with 2006-2009 Ford Fusion, connector to engine; 2006-2009 Mercury Milan, connector to engine; and 2006 Lincoln Zephyr, connector to engine.

Key Features

• EPDM hose material for heater and coolant service
• Black finish for OE-style appearance
• Branched hose design with 5/8 in. end 1 and end 2 inside diameters
• 5/16 in. end 3 inside diameter for branched routing
• Protective sleeve included for added abrasion resistance
• Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
• Dayco 72699 curved radiator hose line application for engine-side HVAC routing

Detailed Description

Dayco 72699 is a curved heater hose for the HVAC hose and pipe category, engineered as a branched hose with the dimensions needed for the listed Ford Fusion, Mercury Milan, and Lincoln Zephyr applications. The EPDM construction is suited for coolant exposure and underhood temperature changes, while the protective sleeve helps guard the hose where it passes near surrounding components. This part cross-references Ford 6E5H-18K359-A and Duralast E72699 for the same application.

The Dayco curved radiator hose line focuses on formed routing and correct fitment geometry, which matters when replacing a heater hose that must connect cleanly from the engine side without kinking or interference. For buyers searching for a 2006-2009 Ford Fusion heater hose, 2006-2009 Mercury Milan heater hose, or 2006 Lincoln Zephyr connector-to-engine hose, Dayco 72699 provides the specified branched layout and OE-style sizing.

Common Problems This Part Addresses

• Coolant seepage from a worn or cracked heater hose
• Restricted coolant flow caused by hose collapse or softening
• Improper routing after a damaged or missing branched hose
• Heat-related abrasion where the hose passes near engine components
• Fitment issues from using a hose with the wrong branch diameter or formed shape

Installation Notes and Tips

Verify the hose routing against the original part before installation, especially the branched section and the 5/16 in. third end. Confirm the connection points are clean and free of old hose material, then check clamp condition and alignment during reassembly. Because this hose is formed for specific engine-side routing, matching the vehicle application and position is important for proper fit.

Quality Assurance

Dayco 72699 is manufactured to SAE J20R4 Class D-1 and SAE J1684 Type EC requirements, supporting consistent hose construction for heater circuit service. Its EPDM material and protective sleeve reflect the needs of underhood coolant routing in the listed Ford, Mercury, and Lincoln applications.
