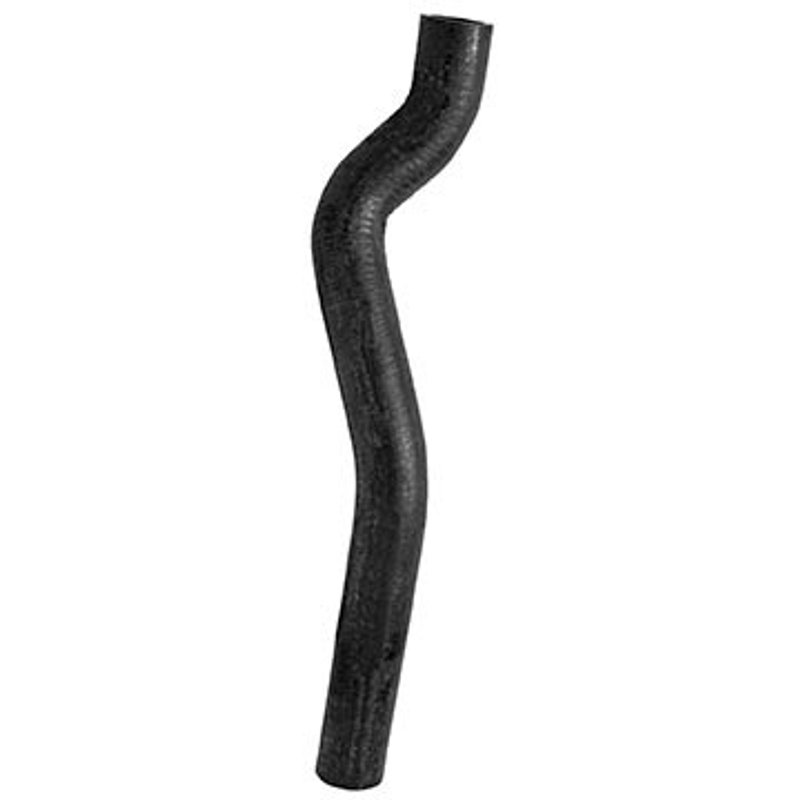

Dayco 72889 Radiator Coolant Hose - Upper
OE Quality 60-Day Returns
Dayco
 Curved Radiator Hose

Dayco 72889 Radiator Coolant Hose - Upper

Brand Dayco 72889
Position Upper
Material Epdm
Color Black
End 1 Inside Diameter 1 9/32
End 2 Inside Diameter 1 9/32
Contains Heat Shield N
Contains Protective Sleeve Y
End 1 Outside Diameter 1 21/32
End 2 Outside Diameter 1 21/32
Hose Type Single i.d. hose
SAE Specification Sae j20r4 class d-1, sae j1684 type ec
Trunk Height 18 1/2
Product line Curved Radiator Hose
Fits Chevrolet · 5 vehicles

Curved radiator hose. EPDM construction with a protective sleeve for added durability.

Single I.D. hose. Consistent inside diameter supports reliable coolant flow.

SAE compliant. Built to meet SAE J20R4 Class D-1 and SAE J1684 Type EC.

$55.09Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $55.09
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Radiator Coolant Hose options

Dayco Curved Radiator Hose 72889

Dayco 72889 is a curved upper radiator coolant hose built for specific Chevrolet Impala applications. It uses EPDM construction with a black finish and a protective sleeve to support coolant routing in the engine bay.

  • EPDM radiator coolant hose for heat and coolant exposure resistance
  • Black curved hose profile for upper cooling-system routing
  • Single I.D. hose with 1 9/32 in. inside diameter at both ends
  • Protective sleeve included; heat shield not included
  • Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
  • Dayco part number 72889 for direct application lookup

Curved Radiator Hose Details

Dayco’s Curved Radiator Hose line is built for formed cooling-system routing where a straight hose will not match the factory path. This Dayco 72889 hose follows the upper radiator hose layout used on 2012-2013 Chevrolet Impala and 2014-2016 Chevrolet Impala Limited models, helping maintain proper coolant flow and a secure fit at the connection points. The hose measures 18 1/2 in. in trunk height and has matching end dimensions of 1 9/32 in. inside diameter and 1 21/32 in. outside diameter.

Compatible With 2012-2013 Chevrolet Impala, upper. Compatible With 2014-2016 Chevrolet Impala Limited, upper. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

  • Upper radiator hose cracking or splitting
  • Coolant seepage at the hose connection points
  • Collapsed or softened hose material from age and heat
  • Incorrect hose shape that does not follow the factory routing
  • Cooling-system service on Chevrolet Impala and Impala Limited models

Installation Notes

Verify the upper hose routing, end diameters, and formed shape against the original part before installation. Inspect the radiator neck and engine-side connection surfaces for corrosion, residue, or damage, and replace worn clamps as needed. Confirm that the protective sleeve is positioned to match the original heat-exposed routing.

Quality Assurance

Dayco manufactures this hose to meet SAE J20R4 Class D-1 and SAE J1684 Type EC requirements for radiator coolant hose applications.

Related reading

This part fits 5 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2016ChevroletImpala LimitedUpperCurved Radiator Hose
2015ChevroletImpala LimitedUpperCurved Radiator Hose
2014ChevroletImpala LimitedUpperCurved Radiator Hose
2013ChevroletImpalaUpperCurved Radiator Hose
2012ChevroletImpalaUpperCurved Radiator Hose
