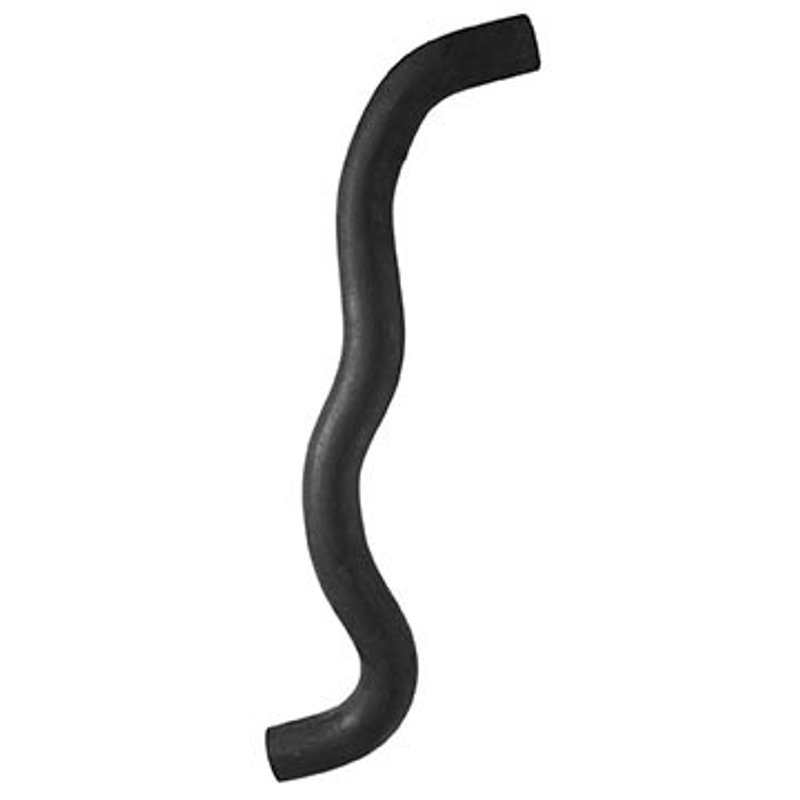

Dayco 72954 Radiator Coolant Hose - Upper
| Brand | Dayco 72954 |
|---|---|
| Position | Upper |
| Material | Epdm |
| Color | Black |
| End 1 Inside Diameter | 1 3/8 |
| End 2 Inside Diameter | 1 3/8 |
| Contains Heat Shield | N |
| Contains Protective Sleeve | N |
| End 1 Outside Diameter | 1 3/4 |
| End 2 Outside Diameter | 1 3/4 |
| Hose Type | Single i.d. hose |
| SAE Specification | Sae j20r4 class d-1, sae j1684 type ec |
| Trunk Height | 24 1/2 |
| Product line | Curved Radiator Hose |
| Fits | Hyundai and Kia · 20 vehicles |
Curved hose design. Helps route coolant smoothly through the cooling system.
EPDM construction. Resists heat and coolant exposure for dependable service.
Single I.D. hose. Provides a consistent inside diameter at both ends.
Curved Upper Radiator Hose for Hyundai and Kia
Dayco 72954 is a curved upper radiator coolant hose built from EPDM for reliable coolant routing in the engine bay. It is a single I.D. hose with 1 3/8 in. inside diameter at both ends and is shaped for direct upper hose applications on select Hyundai Santa Fe, Hyundai Santa Fe XL, and Kia Sorento models.
Key Features
- EPDM construction for coolant-system service
- Black curved radiator hose profile for upper hose routing
- 1 3/8 in. inside diameter at both ends
- 1 3/4 in. outside diameter at both ends
- Single I.D. hose design
- Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
- Dayco part number 72954 for application matching
Application Details
Compatible with 2010-2018 Hyundai Santa Fe, upper; 2014-2019 Hyundai Santa Fe XL, upper; and 2011-2015 Kia Sorento, upper. This Dayco curved radiator hose is a direct-fit cooling system service part for vehicles that require the specified upper hose shape and diameter. Dayco 72954 is a practical replacement choice when servicing the upper coolant circuit on Hyundai Santa Fe and Kia Sorento applications.
What This Hose Helps Address
- Cracked or hardened upper radiator hose material
- Coolant seepage at the hose body or connection points
- Incorrect hose shape or routing in the upper cooling circuit
- Loss of coolant flow caused by a deteriorated hose
- Service replacement for a worn Hyundai Santa Fe or Kia Sorento upper hose
Installation Notes and Tips
Verify the hose diameter, routing, and position before installation to confirm the correct upper application. Inspect the mating necks, clamps, and surrounding cooling components for wear or corrosion before transferring the hose into service. Proper coolant fill and system bleed procedures should be followed after installation to restore normal cooling-system operation.
Quality Assurance
Dayco manufactures this hose to meet SAE J20R4 Class D-1 and SAE J1684 Type EC requirements for radiator coolant hose applications. The EPDM construction and application-specific curved profile support consistent fitment on the listed Hyundai Santa Fe, Hyundai Santa Fe XL, and Kia Sorento models. Part number 72954 is identified for accurate catalog matching.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2018 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2018 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2017 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2017 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2016 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2016 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2015 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2015 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2015 | Kia | Sorento | 3.3L | V6 | Upper | Curved Radiator Hose |
| 2014 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2014 | Hyundai | Santa Fe XL | — | — | Upper | Curved Radiator Hose |
| 2014 | Kia | Sorento | 3.3L | V6 | Upper | Curved Radiator Hose |
| 2013 | Hyundai | Santa Fe | — | — | Upper | Curved Radiator Hose |
| 2013 | Kia | Sorento | 3.5L | V6 | Upper | Curved Radiator Hose |
| 2012 | Hyundai | Santa Fe | 3.5L | V6 | Upper | Curved Radiator Hose |
| 2012 | Kia | Sorento | 3.5L | V6 | Upper | Curved Radiator Hose |
| 2011 | Hyundai | Santa Fe | 3.5L | V6 | Upper | Curved Radiator Hose |
| 2011 | Kia | Sorento | 3.5L | V6 | Upper | Curved Radiator Hose |
| 2010 | Hyundai | Santa Fe | 3.5L | V6 | Upper | Curved Radiator Hose |
