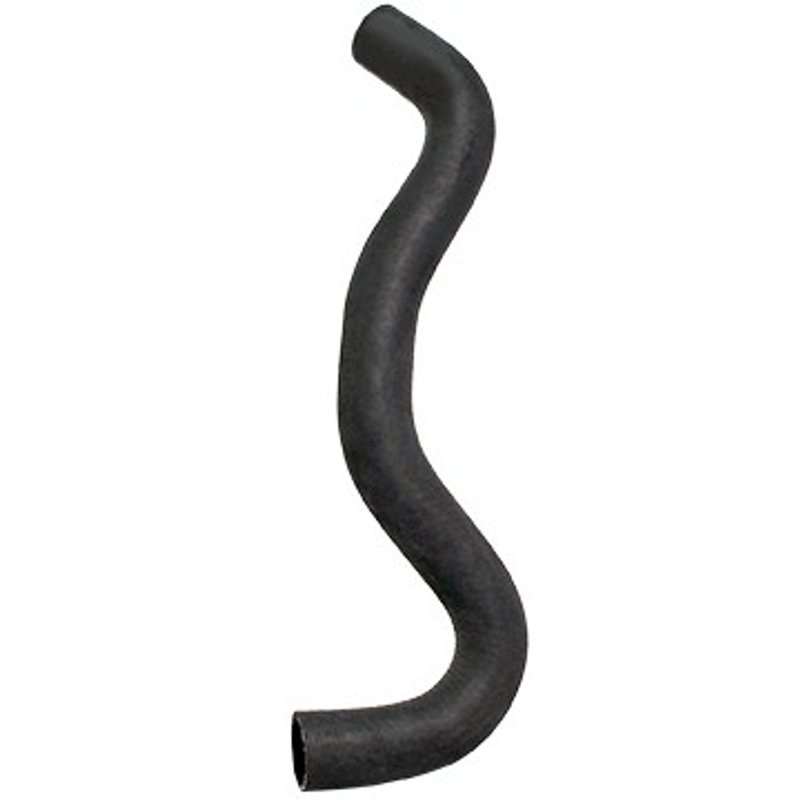

Dayco 72976 Radiator Coolant Hose - Lower - Pipe To Engine

Brand	Dayco 72976
Position	Lower - Pipe To Engine
Material	Epdm
Color	Black
End 1 Inside Diameter	1 3/16
End 2 Inside Diameter	1 3/16
Contains Heat Shield	N
Contains Protective Sleeve	N
End 1 Outside Diameter	1 17/32
End 2 Outside Diameter	1 17/32
Hose Type	Single i.d. hose
SAE Specification	Sae j20r4 class d-1, sae j1684 type ec
Trunk Height	17
Product line	Curved Radiator Hose
Fits	Honda · 6 vehicles

Curved radiator hose. Formed for a cleaner routing path in cooling system applications.

EPDM construction. Resists heat and coolant exposure for dependable service.

SAE J20R4 Class D-1. Built to meet recognized coolant hose performance standards.

$24.86Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Radiator Coolant Hose options

Curved Radiator Hose for Honda Civic

Dayco 72976 is a curved radiator coolant hose for the lower pipe-to-engine location on select 2016-2021 Honda Civic models. Built from EPDM and finished in black, it is shaped for the cooling system routing used in this application.

Key Features

EPDM construction for coolant hose service
Black finish for a clean OE-style appearance
Single I.D. hose design
1 3/16 in. inside diameter at both ends
1 17/32 in. outside diameter at both ends
Built to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications
Curved radiator hose profile for lower pipe-to-engine routing

Product Details

Dayco Curved Radiator Hose 72976 is a radiator coolant hose made for the lower pipe-to-engine position on 2016-2021 Honda Civic vehicles. The EPDM rubber construction is suited for coolant transfer in the engine cooling system, while the curved shape follows the routing required in this application. This hose measures 1 3/16 inches inside diameter at both ends and 1 17/32 inches outside diameter at both ends, with a 17-inch trunk height.

The Dayco curved radiator hose line focuses on application-specific hose geometry for cooling system service. For Honda Civic cooling system repair, Dayco 72976 provides the correct lower hose routing for the listed fitment and supports direct replacement needs without adding extra components.

Common Problems This Hose Can Address

Cracked or deteriorated lower radiator hose material
Coolant leakage at the pipe-to-engine connection
Restricted coolant flow caused by hose collapse or wear
Incorrect hose shape after prior cooling system repair
Service replacement for aging Honda Civic coolant hoses

Installation Notes and Tips

Verify the hose routing, end diameters, and lower pipe-to-engine position before installation. Inspect adjoining clamps, pipes, and sealing surfaces for wear or corrosion, and replace any damaged cooling system components as needed. After installation, refill and bleed the cooling system according to Honda service procedures to help remove trapped air.

Quality Assurance

Dayco 72976 is manufactured to SAE J20R4 Class D-1 and SAE J1684 Type EC specifications for radiator coolant hose service. It is a direct-fit hose for the listed Honda Civic applications.

This part fits 6 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Position	Notes
2021	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
2020	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
2019	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
2018	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
2017	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
2016	Honda	Civic	2.0L	L4	Lower - Pipe To Engine	Curved Radiator Hose
