Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

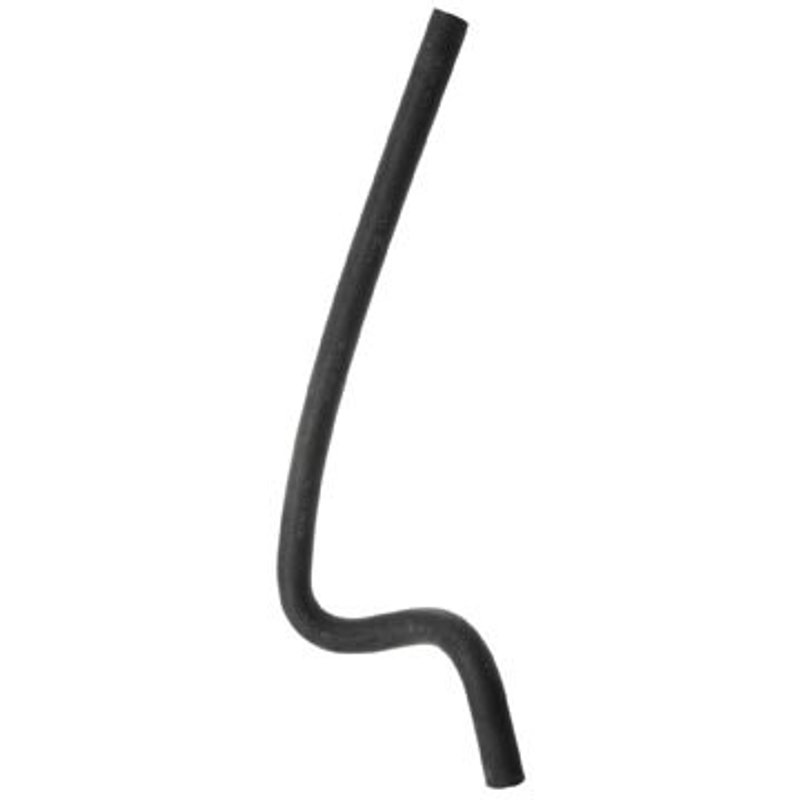

Dayco 86052 HVAC Heater Hose - Heater Inlet, Heater To Pipe or Tee To Reservoir
| Brand | Dayco 86052 |
|---|---|
| Position | Tee To Reservoir |
| Color | Black |
| End 1 Inside Diameter | 3/4 |
| End 2 Inside Diameter | 3/4 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R3 Class D-1, SAE J1684 Type EC |
| Trunk Height | 24 |
| Product line | Small I.D. Heater Hose |
| Fits | Chrysler, Dodge, Chevrolet, Pontiac, and Buick · 29 vehicles |
EPDM construction. Built for dependable heater hose performance.
Single I.D. hose. Provides a consistent 3/4-inch flow path.
SAE-rated hose. Meets SAE J20R3 Class D-1 and J1684 Type EC.
Cross-references ACDelco 16369M, CARQUEST 19837 and Chrysler 04596754AC for the same application. See all 10.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dayco Small I.D. Heater Hose 86052
Dayco 86052 is a Small I.D. Heater Hose built for heater circuit service where a 3/4 in. inside diameter is required at both ends. Made from EPDM and finished in black, this HVAC heater hose follows SAE J20R3 Class D-1 and SAE J1684 Type EC specifications for common heater hose applications.
Compatible With Chrysler 300, Dodge Charger, Dodge Magnum, Chevrolet Cavalier, Pontiac Sunfire, Pontiac Firefly, and Buick Skylark applications that use a small I.D. heater hose connection. The Dayco Small I.D. Heater Hose line is focused on direct-fit heater hose routing for coolant transfer in the HVAC system.
Key Features
- EPDM construction for heater hose service
- 3/4 in. inside diameter at both ends
- Single I.D. hose design for straightforward routing
- Black finish for a clean OE-style appearance
- Meets SAE J20R3 Class D-1 and SAE J1684 Type EC requirements
- Dayco 86052 heater hose for HVAC coolant flow applications
Detailed Description
This Dayco heater hose is intended for vehicles that use a small inside diameter hose in the heater circuit, including tee-to-reservoir, heater inlet, and heater-to-pipe locations. It is a practical replacement for aging coolant hoses that have hardened, cracked, or lost flexibility. Cross-reference part numbers for the same application include Gates 19837 and NAPA 11837.
Use Dayco 86052 when servicing heater hose routing on 2005-2008 Chrysler 300, 2006-2008 Dodge Charger, 2005-2008 Dodge Magnum, 1995-1997 Chevrolet Cavalier, 1995-1997 Pontiac Sunfire, 1996 Pontiac Firefly, and 1980 Buick Skylark. The 3/4 in. I.D. sizing and EPDM material support common OEM-style coolant hose connections in these vehicles.
What It Is Used For
- Replacing a cracked or brittle heater hose
- Restoring coolant flow through the heater circuit
- Repairing leaks at tee-to-reservoir hose connections
- Servicing heater inlet hose routing
- Addressing seepage at heater-to-pipe connections
Installation Notes and Tips
Verify the hose inside diameter and routing before installation, especially on Chrysler 300, Dodge Charger, and Dodge Magnum heater hose applications. Match the hose to the original position and confirm the connection points are clean and free of corrosion or old hose residue. Inspect clamps and adjoining pipes for wear before installing the new hose.
Quality Assurance
Dayco 86052 is manufactured to SAE J20R3 Class D-1 and SAE J1684 Type EC standards, providing a specification-based replacement for heater hose service. The EPDM construction supports use in coolant and HVAC heater hose applications where consistent hose integrity is required.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2008 | Chrysler | 300 | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Chrysler | 300 | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Dodge | Charger | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Dodge | Charger | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Dodge | Charger | 3.5L | V6 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Dodge | Magnum | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2008 | Dodge | Magnum | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Chrysler | 300 | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Chrysler | 300 | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Dodge | Charger | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Dodge | Charger | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Dodge | Magnum | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2007 | Dodge | Magnum | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2006 | Chrysler | 300 | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2006 | Chrysler | 300 | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2006 | Dodge | Charger | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2006 | Dodge | Magnum | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2006 | Dodge | Magnum | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2005 | Chrysler | 300 | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2005 | Chrysler | 300 | 6.1L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 2005 | Dodge | Magnum | 5.7L | V8 | Tee To Reservoir | Small I.D. Heater Hose |
| 1997 | Chevrolet | Cavalier | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1997 | Pontiac | Sunfire | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1996 | Chevrolet | Cavalier | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1996 | Pontiac | Firefly | 1.0L | L3 | Heater Inlet | Small I.D. Heater Hose |
| 1996 | Pontiac | Sunfire | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1995 | Chevrolet | Cavalier | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1995 | Pontiac | Sunfire | 2.2L | L4 | Heater Inlet | Small I.D. Heater Hose |
| 1980 | Buick | Skylark | 2.5L | L4 | Heater To Pipe | Small I.D. Heater Hose |
