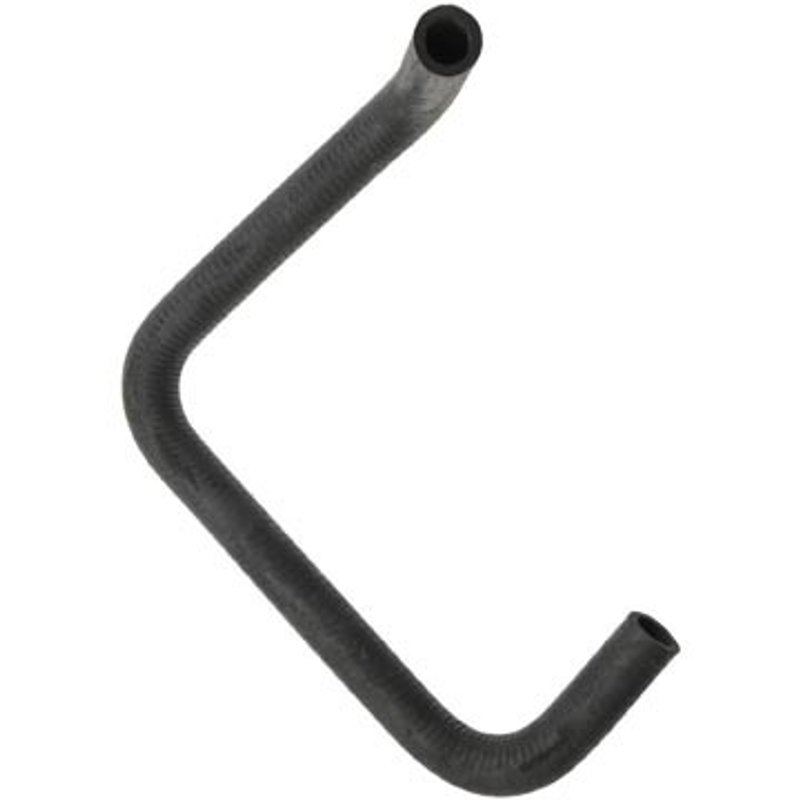

Dayco 86053 HVAC Heater Hose
| Brand | Dayco 86053 |
|---|---|
| Position | Engine To Heater, Heater Outlet, Heater Hose, and Pipe To Water Pump |
| Material | Epdm |
| Color | Black |
| End 1 Inside Diameter | 3/4 |
| End 2 Inside Diameter | 3/4 |
| Contains Heat Shield | N |
| Contains Protective Sleeve | N |
| Hose Type | Single i.d. hose |
| SAE Specification | Sae j20r3 class d-1, sae j1684 type ec |
| Trunk Height | 27 |
| Product line | Small I.D. Heater Hose |
| Fits | Buick, Chevrolet, GMC, Hummer, and Isuzu · 37 vehicles |
EPDM construction. Flexible black hose built for HVAC heater applications.
Single I.D. hose. Uniform 3/4-inch ends for a consistent connection.
SAE J20R3 Class D-1. Meets recognized hose specifications for dependable performance.
Cross-references ACDelco 16355M, CARQUEST 19829 and Duralast E86053 for the same application. See all 12.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Dayco Small I.D. Heater Hose 86053
Dayco 86053 is a Small I.D. Heater Hose made from EPDM for heater circuit service in select GM and Isuzu applications. With 3/4-inch inside diameter ends and a black finish, it is built for engine-to-heater, heater outlet, and pipe-to-water-pump routing where a single I.D. hose is specified.
Key Features
- EPDM construction for heater hose service
- 3/4 in. inside diameter at both ends
- Black single I.D. hose design
- Meets SAE J20R3 Class D-1 and SAE J1684 Type EC specifications
- Compatible with select Hummer H3, Chevrolet Colorado, GMC Canyon, Buick LaCrosse, Buick Allure, and Isuzu applications
Product Details
The Dayco Small I.D. Heater Hose line is intended for heater and coolant transfer routing where a smaller inside diameter hose is required. Part number 86053 uses EPDM rubber for resistance to heat and coolant exposure, and its SAE-rated construction supports use in heater hose applications across a range of vehicles. This hose is listed for select 2004-2010 Hummer H3 and H3T, 2004-2007 Chevrolet Colorado, 2004-2007 GMC Canyon, 2005-2008 Buick Allure and LaCrosse, and select Isuzu i-280, i-290, i-350, and i-370 models. This part cross-references Gates 19829 for the same application.
Vehicle Fitment
- Fits 2006-2010 Hummer H3, Engine To Heater, Small I.D. Heater Hose
- Fits 2009-2010 Hummer H3T, Engine To Heater, Small I.D. Heater Hose
- Fits 2005-2008 Buick Allure, Heater Hose, Hose Must Be Cut On Both Ends; Small I.D. Heater Hose
- Fits 2005-2008 Buick LaCrosse, Heater Hose, Hose Must Be Cut On Both Ends; Small I.D. Heater Hose
- Fits 2008 Isuzu i-370, Heater Outlet, Small I.D. Heater Hose
- Fits 2004-2007 Chevrolet Colorado, Engine To Heater, Small I.D. Heater Hose
- Fits 2004-2007 GMC Canyon, Engine To Heater, Small I.D. Heater Hose
- Fits 2007 Isuzu i-290, Engine To Heater, Small I.D. Heater Hose
- Fits 2007 Isuzu i-370, Engine To Heater, Small I.D. Heater Hose
- Fits 2004-2006 Chevrolet Colorado, Heater Outlet, Small I.D. Heater Hose
- Fits 2006 Isuzu i-280, Engine To Heater, Small I.D. Heater Hose
- Fits 2006 Isuzu i-350, Engine To Heater, Small I.D. Heater Hose
- Fits 1980 Buick Skylark, Pipe To Water Pump, Small I.D. Heater Hose
Installation Notes and Tips
Verify the hose routing, end diameter, and position before installation. Some Buick applications note that the hose must be cut on both ends, so compare the replacement length and routing to the original part before trimming. Confirm clamp condition, inspect adjoining heater pipes and fittings for wear, and flush the cooling system if contamination is present.
Quality Assurance
Dayco 86053 is built to SAE J20R3 Class D-1 and SAE J1684 Type EC requirements for heater hose service. The EPDM construction and application-specific fitment support dependable replacement use in select Hummer H3, Chevrolet Colorado, GMC Canyon, Buick LaCrosse, Buick Allure, and Isuzu heater hose routes.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Hummer | H3 | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2010 | Hummer | H3T | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2009 | Hummer | H3 | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2009 | Hummer | H3T | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2008 | Buick | Allure | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2008 | Buick | LaCrosse | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2008 | Hummer | H3 | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2008 | Isuzu | i-370 | — | — | Heater Outlet | Small I.D. Heater Hose |
| 2007 | Buick | Allure | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2007 | Buick | LaCrosse | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2007 | Chevrolet | Colorado | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2007 | Chevrolet | Colorado | 2.9L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2007 | GMC | Canyon | 3.7L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2007 | GMC | Canyon | 2.9L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2007 | Hummer | H3 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2007 | Isuzu | i-290 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2007 | Isuzu | i-370 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2006 | Buick | Allure | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2006 | Buick | LaCrosse | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2006 | Chevrolet | Colorado | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2006 | Chevrolet | Colorado | 3.5L | L5 | Heater Outlet | Small I.D. Heater Hose |
| 2006 | GMC | Canyon | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2006 | GMC | Canyon | 3.5L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2006 | Hummer | H3 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2006 | Isuzu | i-280 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2006 | Isuzu | i-350 | — | — | Engine To Heater | Small I.D. Heater Hose |
| 2005 | Buick | Allure | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2005 | Buick | LaCrosse | 3.6L | V6 | Heater Hose | Hose Must Be Cut On Both Ends; Small I.D. Heater Hose |
| 2005 | Chevrolet | Colorado | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2005 | Chevrolet | Colorado | 3.5L | L5 | Heater Outlet | Small I.D. Heater Hose |
| 2005 | GMC | Canyon | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2005 | GMC | Canyon | 3.5L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 2004 | Chevrolet | Colorado | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2004 | Chevrolet | Colorado | 3.5L | L5 | Heater Outlet | Small I.D. Heater Hose |
| 2004 | GMC | Canyon | 2.8L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 2004 | GMC | Canyon | 3.5L | L5 | Engine To Heater | Small I.D. Heater Hose |
| 1980 | Buick | Skylark | 2.5L | L4 | Pipe To Water Pump | Small I.D. Heater Hose |
