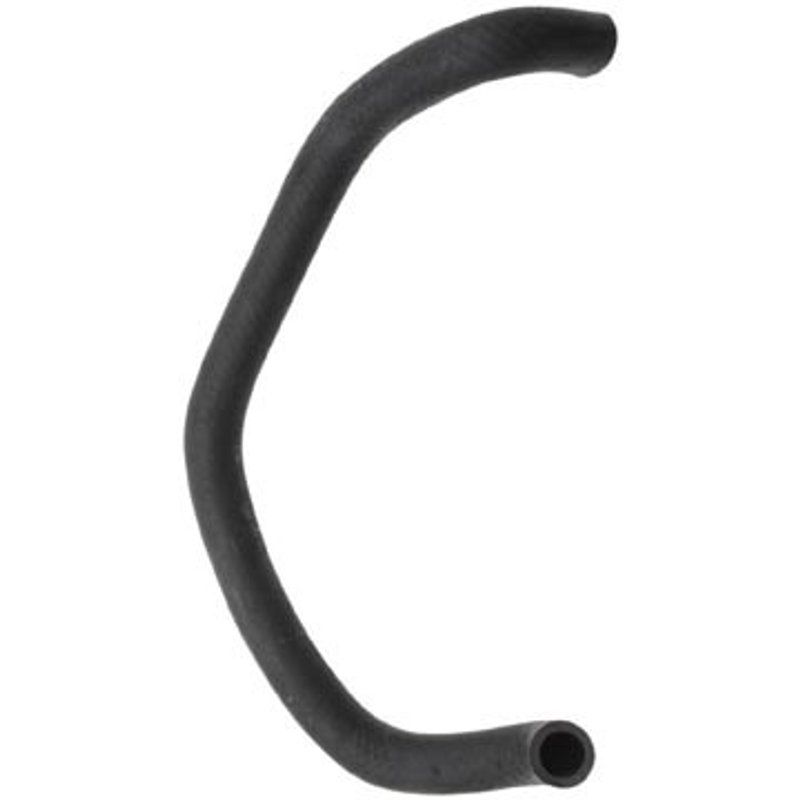

Dayco 87752 HVAC Heater Hose - Engine To Heater
| Brand | Dayco 87752 |
|---|---|
| Position | Engine To Heater |
| Color | Black |
| End 1 Inside Diameter | 5/8 |
| End 2 Inside Diameter | 5/8 |
| Hose Type | Single I.D. Hose |
| Material | EPDM |
| SAE Specification | SAE J20R3 Class D-1, SAE J1684 Type EC |
| Trunk Height | 11 1/2 |
| Product line | Small I.D. Heater Hose |
| Fits | Nissan · 8 vehicles |
EPDM construction. Resists heat and coolant exposure in HVAC hose applications.
Single I.D. hose. Provides a consistent 5/8-inch connection at both ends.
SAE-rated hose. Built to meet J20R3 Class D-1 and J1684 Type EC standards.
Cross-references ACDelco 16086M, CARQUEST 18863 and Datsun/Nissan 92400-01G10 for the same application. See all 9.
Dayco Small I.D. Heater Hose 87752
Dayco 87752 is a Small I.D. Heater Hose built for engine-to-heater coolant routing in select Nissan applications. It uses EPDM construction and a 5/8 in. inside diameter at both ends for a direct replacement-style fit on the specified heater hose path.
Key Features
- EPDM rubber construction for heater hose service
- 5/8 in. inside diameter at both ends
- Single I.D. hose design for engine-to-heater routing
- Black finish for a clean OE-style appearance
- Meets SAE J20R3 Class D-1 and SAE J1684 Type EC specifications
- Dayco 87752 small I.D. heater hose for select Nissan Pickup and Nissan D21 applications
Product Details
This Dayco Small I.D. Heater Hose is intended for coolant transfer between the engine and heater core on vehicles that use a 5/8 in. hose connection. The EPDM material is commonly used in heater hose applications because it is suited to hot coolant service, while the single I.D. hose layout supports the engine-to-heater routing found on the listed Nissan models. Dayco 87752 is a practical replacement choice when servicing the heater hose on a 1995-1997 Nissan Pickup or a 1990-1994 Nissan D21.
Compatible With 1995-1997 Nissan Pickup, engine to heater, and 1990-1994 Nissan D21, engine to heater. This part cross-references Gates 18863 and NAPA 10863 for the same application.
Common Uses
- Replacing a cracked or heat-aged heater hose
- Restoring coolant flow from the engine to the heater core
- Addressing coolant seepage at a 5/8 in. hose connection
- Correcting soft, swollen, or deteriorated rubber hose sections
- Servicing heater hose routing on Nissan Pickup and Nissan D21 models
Installation Notes
Verify the hose routing, inside diameter, and connection points before installation. Match the engine-to-heater path exactly and inspect adjoining clamps, fittings, and heater core nipples for wear or corrosion before reassembly. Confirm that the hose is routed without kinks or contact with hot or moving components.
Quality Assurance
Dayco manufactures this heater hose to SAE J20R3 Class D-1 and SAE J1684 Type EC specifications, supporting consistent material and performance requirements for heater hose service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 1997 | Nissan | Pickup | — | — | Engine To Heater | Small I.D. Heater Hose |
| 1996 | Nissan | Pickup | — | — | Engine To Heater | Small I.D. Heater Hose |
| 1995 | Nissan | Pickup | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 1994 | Nissan | D21 | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 1993 | Nissan | D21 | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 1992 | Nissan | D21 | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 1991 | Nissan | D21 | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
| 1990 | Nissan | D21 | 2.4L | L4 | Engine To Heater | Small I.D. Heater Hose |
