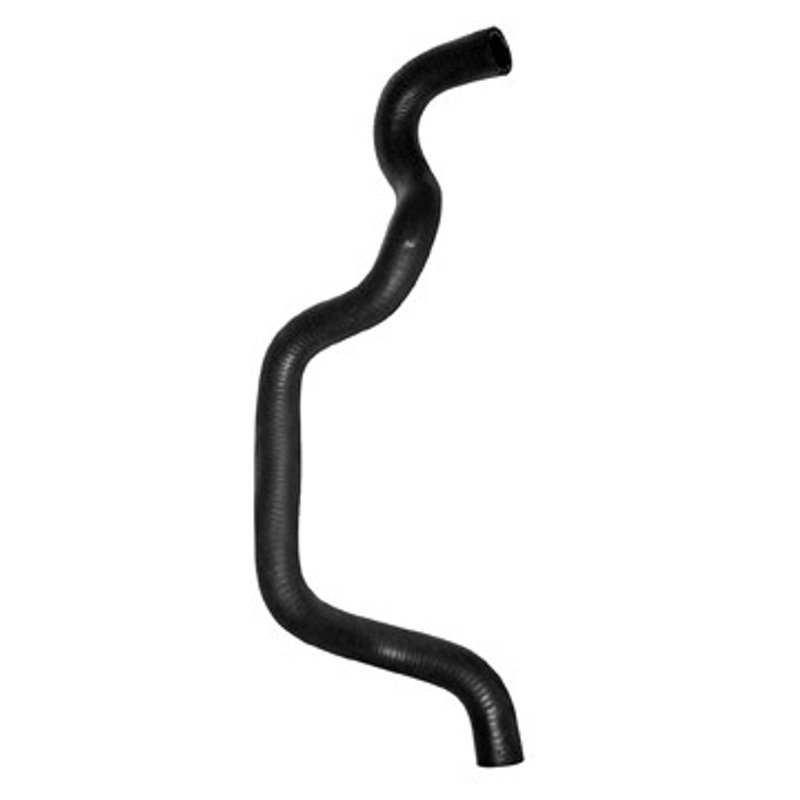

Dayco 87935 HVAC Heater Hose - Heater Inlet

Brand	Dayco 87935
Position	Heater Inlet
Material	Epdm
Color	Black
End 1 Inside Diameter	5/8
End 2 Inside Diameter	5/8
Contains Heat Shield	N
Contains Protective Sleeve	N
End 1 Outside Diameter	31/32
End 2 Outside Diameter	31/32
Hose Type	Single i.d. hose
SAE Specification	Sae j20r3 class d-1, sae j1684 type ec
Trunk Height	16
Product line	Small I.D. Heater Hose
Fits	Toyota · 3 vehicles

EPDM construction. Built for heater hose service with standardized rubber material.

SAE specification support. Meets SAE J20R3 Class D-1 and SAE J1684 Type EC requirements.

Small I.D. design. Uses a 5/8-inch inside diameter for the listed heater circuit application.

Cross-references ACDelco 16426M, CARQUEST 19467 and Duralast E87935 for the same application. See all 6.

$57.66Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all HVAC Heater Hose options

Product Overview

Dayco 87935 is a small I.D. heater hose built for heater circuit service where a 5/8-inch inside diameter is required. It uses EPDM construction and a black finish, with SAE J20R3 Class D-1 and SAE J1684 Type EC compliance for standardized hose performance.

Fits 2007-2009 Toyota Camry, heater inlet. This Dayco heater hose is identified by part number 87935 and cross-references Toyota 87245-06460 for the same application.

Key Features

EPDM rubber construction for heater hose service.
5/8-inch inside diameter at both ends for a uniform connection size.
Single I.D. hose design for straightforward coolant routing.
SAE J20R3 Class D-1 and SAE J1684 Type EC specification support.
Black finish for a clean OE-style appearance.

Detailed Description

Dayco 87935 is part of the Small I.D. Heater Hose line, a product line focused on heater hose applications that require compact sizing and standardized construction. This hose is suited for coolant transfer in the heater circuit and is built with EPDM material to handle typical underhood hose service demands. The 5/8-inch inside diameter and matching end sizes make it a direct-size replacement for the specified application. In Toyota Camry heater inlet service, part number 87935 provides the correct hose format for the listed fitment.

Common Issues This Part Can Address

Cracked or deteriorated heater hose material.
Coolant seepage at hose connections.
Incorrect hose diameter for the heater inlet connection.
Restricted heater coolant flow caused by aged hose construction.

Installation Notes and Tips

Verify the hose diameter and routing before installation. Match the heater inlet location and confirm the hose follows the original path without kinks or twist. Inspect adjoining fittings and clamps for wear before installing the new hose. Use the vehicle’s specified coolant service procedure after replacement.

Quality Assurance

Dayco manufactures this hose to SAE J20R3 Class D-1 and SAE J1684 Type EC standards for hose construction and performance consistency.

This part fits 3 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Fuel Type	Position	Notes
2009	Toyota	Camry	2.4L	L4	GAS	Heater Inlet	Small I.D. Heater Hose
2008	Toyota	Camry	2.4L	L4	GAS	Heater Inlet	Small I.D. Heater Hose
2007	Toyota	Camry	2.4L	L4	GAS	Heater Inlet	Small I.D. Heater Hose
No rows match your filter.

Directly replaces or cross-references 6 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

ACDelco — 16426MCARQUEST — 19467Duralast — E87935Gates — 19467NAPA — 11467Toyota — 87245-06460
