Dayco
Small I.D. Heater Hose

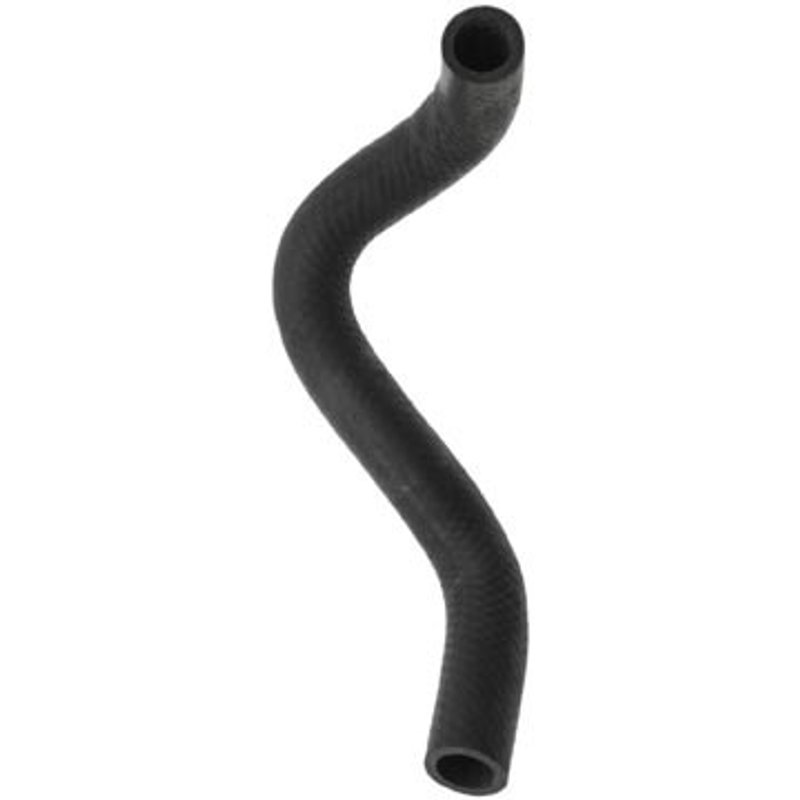

Dayco 88392 HVAC Heater Hose - Heater Outlet or Pipe To Tee

Brand Dayco 88392
Position Pipe To Tee
Color Black
End 1 Inside Diameter 3/4
End 2 Inside Diameter 3/4
Hose Type Single I.D. Hose
Material EPDM
SAE Specification SAE J20R3 Class D-1, SAE J1684 Type EC
Trunk Height 9 1/4
Product line Small I.D. Heater Hose
Fits Honda, Buick, Oldsmobile, and Pontiac · 25 vehicles

EPDM construction. Resists heat and coolant exposure in HVAC hose applications.

Single I.D. hose. Provides a consistent 3/4-inch inside diameter at both ends.

SAE-rated hose. Built to meet SAE J20R3 Class D-1 and SAE J1684 Type EC.

Cross-references ACDelco 14322S, CARQUEST 19724 and Duralast C88392 for the same application. See all 7.

$32.87Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $32.87
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.

Dayco Small I.D. Heater Hose 88392

Dayco 88392 is a Small I.D. Heater Hose made from EPDM for heater circuit routing in select Honda, Buick, Oldsmobile, and Pontiac applications. This 3/4 in. x 3/4 in. single I.D. hose is built to SAE J20R3 Class D-1 and SAE J1684 Type EC specifications for heater hose service.

Use this Dayco heater hose when replacing a worn or damaged hose in a 2006-2008 Honda Pilot heater pipe-to-tee connection or in select GM heater outlet applications. The Dayco 88392 part number is also referenced by several aftermarket and OE cross numbers for the same application.

Key Features

  • EPDM construction for heater hose service
  • Black finish for a clean OE-style appearance
  • 3/4 in. inside diameter at both ends
  • Single I.D. hose design for heater circuit routing
  • Built to SAE J20R3 Class D-1 and SAE J1684 Type EC standards
  • Dayco 88392 small I.D. heater hose for select Honda Pilot and GM applications

Detailed Description

Dayco Small I.D. Heater Hose 88392 is a replacement HVAC heater hose for vehicles that use a 3/4 in. hose connection. The EPDM rubber construction is suited for coolant transfer in heater circuits, while the single I.D. hose layout supports direct routing between heater outlet and pipe-to-tee connections. This part number, 88392, is listed for 2006-2008 Honda Pilot applications and select Buick, Oldsmobile, and Pontiac models with heater outlet routing.

Compatible vehicle applications include 2008 Honda Pilot, pipe to tee; 2006-2007 Honda Pilot, pipe to tee; 1996-1999 Buick LeSabre, heater outlet; 1995-1999 Oldsmobile 88, heater outlet; 1996-1999 Oldsmobile LSS, heater outlet; 1995-1999 Pontiac Bonneville, heater outlet; 1995-1996 Buick Park Avenue, heater outlet; and 1995-1996 Oldsmobile 98, heater outlet. Dayco 88392 is a practical replacement when matching the original hose size and routing is required.

This part cross-references ACDelco 14322S and Gates 19724 for the same application.

What It Is Used For

  • Replacing a cracked or heat-aged heater hose
  • Restoring coolant flow through the heater circuit
  • Addressing leaks at a heater outlet or pipe-to-tee connection
  • Matching a 3/4 in. small I.D. hose requirement on select Honda Pilot and GM vehicles
  • Replacing a hose that no longer seals properly at the original connection points

Installation Notes and Tips

Verify the hose routing, inside diameter, and end configuration before installation. For the 2008 Honda Pilot application, the hose must be cut on both ends. Confirm that the replacement hose matches the original heater circuit path and trim length as needed for the vehicle.

Quality Assurance

Dayco manufactures this heater hose to meet SAE J20R3 Class D-1 and SAE J1684 Type EC requirements for heater hose applications. The EPDM construction and application-specific sizing support consistent replacement fitment for the listed vehicles.

This part fits 25 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2008HondaPilotPipe To TeeHose Must Be Cut On Both Ends; Small I.D. Heater Hose
2007HondaPilotPipe To TeeSmall I.D. Heater Hose
2006HondaPilotPipe To TeeSmall I.D. Heater Hose
1999BuickLeSabreHeater OutletSmall I.D. Heater Hose
1999Oldsmobile88Heater OutletSmall I.D. Heater Hose
1999OldsmobileLSSHeater OutletSmall I.D. Heater Hose
1999PontiacBonnevilleHeater OutletSmall I.D. Heater Hose
1998BuickLeSabreHeater OutletSmall I.D. Heater Hose
1998Oldsmobile88Heater OutletSmall I.D. Heater Hose
1998OldsmobileLSSHeater OutletSmall I.D. Heater Hose
1998PontiacBonnevilleHeater OutletSmall I.D. Heater Hose
1997BuickLeSabreHeater OutletSmall I.D. Heater Hose
1997Oldsmobile88Heater OutletSmall I.D. Heater Hose
1997OldsmobileLSSHeater OutletSmall I.D. Heater Hose
1997PontiacBonnevilleHeater OutletSmall I.D. Heater Hose
1996BuickLeSabreHeater OutletSmall I.D. Heater Hose
1996BuickPark AvenueHeater OutletSmall I.D. Heater Hose
1996Oldsmobile88Heater OutletSmall I.D. Heater Hose
1996Oldsmobile98Heater OutletSmall I.D. Heater Hose
1996OldsmobileLSSHeater OutletSmall I.D. Heater Hose
1996PontiacBonnevilleHeater OutletSmall I.D. Heater Hose
1995BuickPark AvenueHeater OutletSmall I.D. Heater Hose
1995Oldsmobile88Heater OutletSmall I.D. Heater Hose
1995Oldsmobile98Heater OutletSmall I.D. Heater Hose
1995PontiacBonnevilleHeater OutletSmall I.D. Heater Hose
Directly replaces or cross-references 7 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
ACDelco — 14322SCARQUEST — 19724Duralast — C88392Gates — 19724General Motors — 25618009General Motors — 25636951NAPA — 11724
