Home› HVAC > Hoses and Pipes› Dayco 88501 HVAC Heater Hose - Heater Outlet
Dayco 88501 HVAC Heater Hose - Heater OutletOE Quality 60-Day Returns
Part #: 88501

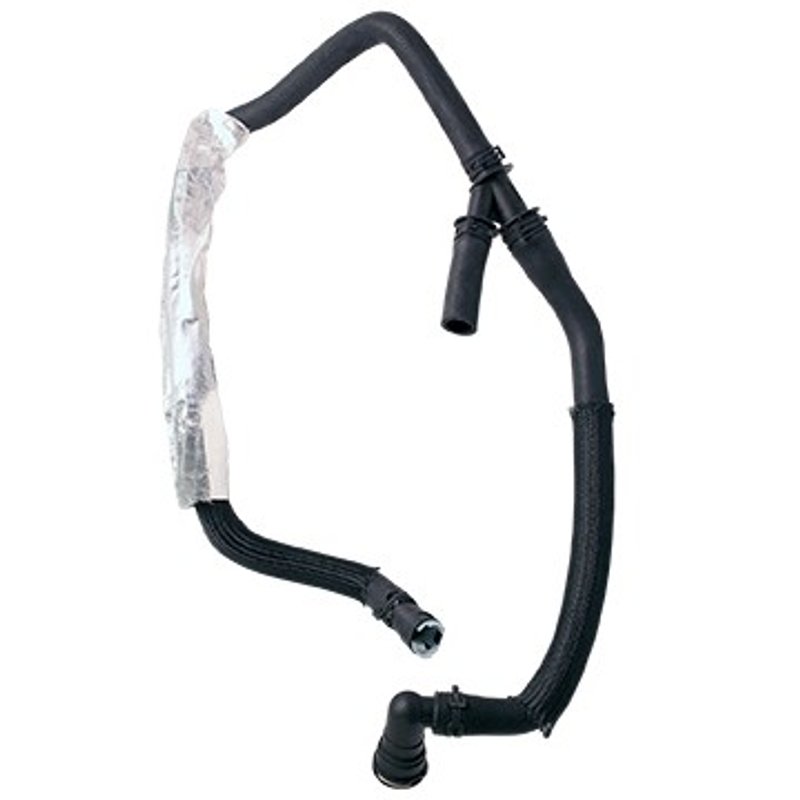

Dayco 88501 HVAC Heater Hose - Heater Outlet

Small I.D. Heater Hose, Heater Outlet
4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$99.09Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Small I.D. Heater Hose, Heater Outlet
Fitment: Ford, F-150
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all HVAC Heater Hose options

Dayco Small I.D. Heater Hose for F-150

Dayco 88501 is a branched HVAC heater hose built for the heater outlet on select Ford F-150 trucks. It uses EPDM construction with a black finish and includes a heat shield plus a protective sleeve for added routing protection in the engine bay.

Key Features

  • EPDM heater hose construction for HVAC coolant routing
  • Branched hose design with 3/4 in. and 1 in. inside diameters
  • Contains heat shield and protective sleeve
  • Black finish for a clean OE-style appearance
  • Built to SAE J20R3 Class D-1 and SAE J1684 Type EC specifications
  • Trunk height: 46 1/2 in.

Product Details

Dayco Small I.D. Heater Hose 88501 is made for heater outlet service on 2011-2014 Ford F-150 models. The branched layout supports the factory hose routing, while the EPDM material is suited for heater hose use in the cooling system. If you are replacing a worn or damaged Ford F-150 heater hose, Dayco 88501 provides the correct small I.D. configuration for this application.

The Dayco Small I.D. Heater Hose line focuses on replacement hoses with OE-style fit and material selection for HVAC and cooling-system routing. This part number, 88501, follows that product line approach with a branched design and protective features for underhood use.

What It Helps Fix

  • Coolant leaks at the heater outlet hose
  • Cracked or hardened heater hose material
  • Restricted coolant flow through a damaged branched hose
  • Heat-related wear on exposed hose sections
  • Improper hose routing after a failed replacement hose

Installation Notes

Compatible With 2011-2014 Ford F-150, heater outlet. Verify hose routing, end diameters, and overall length before installation. Inspect adjoining clamps, fittings, and coolant passages for wear or contamination before installing the new hose. Dayco 88501 should be matched to the original heater outlet configuration for proper fit.

Quality Assurance

Dayco 88501 is built to SAE J20R3 Class D-1 and SAE J1684 Type EC requirements for heater hose applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

BrandDayco
Part Number88501
PositionSmall I.D. Heater Hose, Heater Outlet
MaterialEpdm
ColorBlack
End 1 Inside Diameter3/4
End 2 Inside Diameter1
End 3 Inside Diameter3/4
Contains Heat ShieldY
Contains Protective SleeveY
End 1 Outside Diameter3/4
End 2 Outside Diameter1
End 3 Outside Diameter1 1/16
Hose TypeBranched hose
SAE SpecificationSae j20r3 class d-1, sae j1684 type ec
Trunk Height46 1/2

This part fits 4 vehicles. Search below:

YearMakeModelLitersCylindersPositionNotes
2014FordF-1503.5LV6Heater OutletSmall I.D. Heater Hose
2013FordF-1503.5LV6Heater OutletSmall I.D. Heater Hose
2012FordF-1503.5LV6Heater OutletSmall I.D. Heater Hose
2011FordF-1503.5LV6Heater OutletSmall I.D. Heater Hose

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
